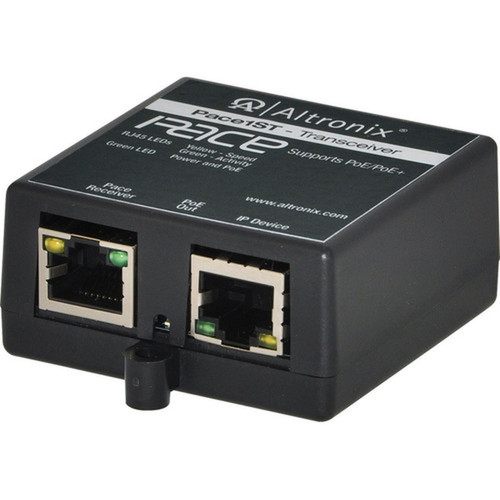

Altronix PACE1ST IP and PoE+ Extended Distance CAT5e Hardened Mini Transceiver - Fast Ethernet 10/100Base-T - 0. 50 km
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This transceiver operates as a single-port media converter that maintains 100 Mbps throughput across its maximum 0.50 km distance using standard twisted pair cabling. The device automatically detects and protects legacy non-PoE cameras and devices while providing full compatibility with modern megapixel, HD720, HD1080, and VGA camera resolutions.
Power delivery follows PoE+ standards with support for both 15W and 30W power budgets, enabling the device to power a wide range of network endpoints without separate power supplies. The compact dimensions of 1.12" × 2.27" × 2.64" (28.45 × 57.66 × 67.06 mm) and lightweight 99.8 g design facilitate easy installation in space-constrained environments.
Key Product Advantages
The PACE1ST transceiver eliminates the substantial costs and labor associated with installing new network cabling by leveraging existing CAT5e infrastructure. This approach provides significant savings in both materials and installation time while maintaining full network performance and power delivery capabilities.
Extended Distance Connectivity
Delivers reliable Fast Ethernet connectivity up to 0.50 km over standard CAT5e cabling, far exceeding typical Ethernet distance limitations.
- Maintains 100 Mbps throughput
- Uses existing cable infrastructure
- No signal degradation at max distance
PoE+ Power Delivery
Supports both IEEE 802.3af (15W) and IEEE 802.3at (30W) standards for flexible power delivery to connected devices.
- Auto-detects legacy non-PoE devices
- Protects against power mismatches
- Eliminates separate power supplies
Industrial Durability
Hardened construction with UL and CE certifications ensures reliable operation in challenging environmental conditions.
- Withstands industrial environments
- Certified for North American and European markets
- Environmentally friendly design
Deployment / Use Cases
This transceiver excels in CCTV system modernization projects where organizations need to upgrade analog surveillance systems to digital IP cameras without replacing existing CAT5e cabling. The device seamlessly integrates megapixel and HD cameras into legacy infrastructure while providing both data connectivity and power over the same cable.
Industrial networking applications benefit from the extended distance capability, allowing network expansion in manufacturing facilities, warehouses, and outdoor environments where running new fiber or Ethernet cables would be prohibitively expensive or disruptive. The hardened design withstands temperature variations, vibration, and other industrial environmental factors.
CCTV System Retrofit
Convert analog CCTV installations to digital IP camera systems using existing CAT5e wiring while maintaining camera power delivery.
- Works with all modern camera resolutions
- Preserves existing cable investments
- Simplifies migration to IP surveillance
Industrial Network Extension
Extend network links in manufacturing plants, warehouses, and outdoor facilities where traditional Ethernet distance limits are insufficient.
- 0.50 km reach over CAT5e
- Hardened for industrial environments
- Maintains full 100 Mbps throughput
Physical Profile
The compact mini transceiver design measures 1.12" in height, 2.27" in width, and 2.64" in depth (28.45 × 57.66 × 67.06 mm), with a lightweight 99.8 g construction that facilitates discreet installation in tight spaces. The hardened enclosure provides protection against environmental factors while maintaining a small footprint that doesn't require significant mounting real estate.
- Width
- 2.27" (57.66 mm)
- Depth
- 2.64" (67.06 mm)
- Height
- 1.12" (28.45 mm)
- Weight
- 99.8 g
Highlights
- Extends network distance up to 0.50 km over existing CAT5e cabling
- Delivers PoE+ power compliant with IEEE 802.3af (15W) and IEEE 802.3at (30W) standards
- Maintains 100 Mbps Fast Ethernet throughput at maximum distance
- Auto-detects and protects legacy non-PoE cameras and devices
- Hardened construction for industrial environment deployment
- UL Listed for U.S. and Canada, CE Approved for European markets
- Eliminates costs of installing new network cabling
- Works with megapixel, HD720, HD1080, and VGA camera resolutions
- Compact dimensions: 1.12" × 2.27" × 2.64" (28.45 × 57.66 × 67.06 mm)
- Backed by lifetime limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | Altronix Corporation |
| Manufacturer Part Number | PACE1ST |
| Brand Name | Altronix |
| Product Model | Pace1ST |
| Product Name | IP and PoE+ over Extended Distance CAT5e Hardened Mini Transceiver |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Network (RJ-45) | Yes |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Maximum Distance Supported | 0.50 km |
| Network & Communication | |
| Ethernet Technology | Fast Ethernet |
| Network Technology | 10/100Base-T |
| Power Description | |
| Power Source | PoE+ |
| Physical Characteristics | |
| Height | 1.12" (28.45 mm) |
| Width | 2.27" (57.66 mm) |
| Depth | 2.64" (67.06 mm) |
| Weight (Approximate) | 99.8 g |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Country of Origin | United States |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What maximum distance does this transceiver support over CAT5e cable?
The Altronix PACE1ST transceiver extends network connectivity up to 0.50 kilometers (500 meters) over standard CAT5e twisted pair cabling while maintaining full 100 Mbps Fast Ethernet throughput. This extended reach makes it suitable for applications where traditional Ethernet distance limitations of 100 meters would require additional networking equipment or cable replacement.
What PoE standards does this device support for power delivery?
This transceiver supports both IEEE 802.3af (15W) and IEEE 802.3at (30W) PoE+ standards, providing flexible power delivery for connected devices. The auto-detection feature identifies legacy non-PoE cameras and devices, applying appropriate protection to prevent damage while ensuring compatibility with a wide range of network endpoints without requiring separate power supplies.
What types of cameras are compatible with this transceiver?
The device works with modern digital IP cameras including megapixel, HD720, HD1080, and traditional VGA (SD) resolutions. This broad compatibility makes it ideal for CCTV system retrofits where organizations need to upgrade analog surveillance systems to digital IP cameras while leveraging existing CAT5e cabling infrastructure without compromising on camera resolution or features.
What certifications does this transceiver carry for different markets?
The Altronix PACE1ST is UL Listed for use in the United States and Canada, and CE Approved for European markets. These certifications verify that the device meets stringent safety and performance standards in their respective regions, ensuring reliable operation and regulatory compliance for industrial and commercial deployments across North America and Europe.
How does this device help reduce installation costs?
By extending network distance over existing CAT5e cabling, this transceiver eliminates the substantial material and labor costs associated with installing new network cables. Organizations can retrofit digital IP cameras into analog CCTV systems or extend industrial network links without the expense of cable replacement, conduit installation, or disruptive construction work, providing significant savings in both time and budget.
What is the warranty coverage for this transceiver?
Altronix provides a lifetime limited warranty for the PACE1ST transceiver, demonstrating confidence in the product's durability and long-term reliability. This comprehensive warranty coverage supports the device's use in demanding industrial and surveillance applications where continuous operation is essential, offering peace of mind for organizations making infrastructure investments.
