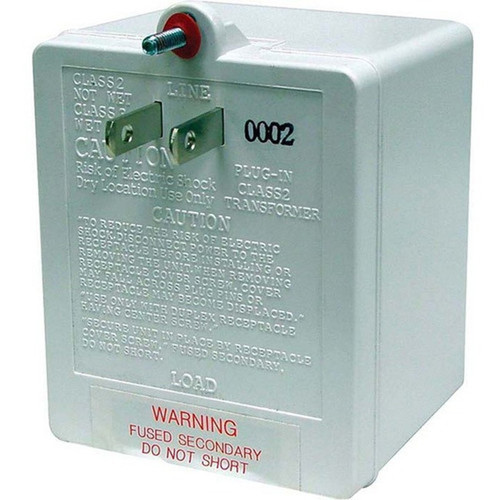

Altronix TP2420 Step Down Transformer - 20 VA - 110 V AC Input to 24 V AC Output
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This transformer operates with a 110 V AC input and provides a 24 V AC output, ensuring safe voltage reduction for connected devices. The 20 VA power rating defines its capacity to handle low-power loads effectively.
The maximum line current of 800 mA supports steady operation without overloading. The transformer's construction focuses on durability and efficient energy transfer, maintaining stable output under typical operating conditions.
This section brings together practical product details such as Power Rating, Input Voltage, Output Voltage, Maximum Line Current, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The TP2420 offers precise voltage conversion with reliable performance, ensuring compatibility with devices that require 24 V AC power from standard 110 V AC sources.
Efficient Voltage Reduction
Converts 110 V AC to 24 V AC efficiently, minimizing energy loss and providing stable output for sensitive equipment.
- Safe voltage step-down
- Consistent output stability
Compact and Lightweight
Designed with a small form factor and approximate weight of 521.6 g, enabling easy integration into tight spaces.
- Space-saving installation
- Portable deployment options
Robust Construction
Built for durability in various environments, supporting reliable operation in low-power applications.
- Long-term reliability
- Minimal maintenance needs
Deployment / Use Cases
This transformer is ideal for applications requiring voltage reduction from 110 V AC to 24 V AC, such as powering low-voltage control systems, lighting fixtures, or small electronic devices.
Common use cases include integration into security systems, access control panels, or industrial automation setups where stable lower-voltage power is essential. Its compact size makes it suitable for wall-mounted or enclosed installations.
Security and Access Control
Provides reliable 24 V AC power for door locks, card readers, and surveillance equipment in commercial or residential settings.
Industrial Automation
Supports low-power sensors, actuators, or control modules in manufacturing or process control environments.
Physical Profile
The transformer measures 2.35" in height, 2.60" in width, and 3.50" in depth, with an approximate weight of 521.6 g. Its compact dimensions facilitate installation in confined areas, such as electrical enclosures or behind panels.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 2.35" (59.69 mm), 2.60" (66.04 mm), 3.50" (88.90 mm), 521.6 g. This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 2.60" (66.04 mm)
- Depth
- 3.50" (88.90 mm)
- Height
- 2.35" (59.69 mm)
- Weight
- 521.6 g
Highlights
- Converts 110 V AC input to 24 V AC output
- 20 VA power rating for low-power applications
- Maximum line current of 800 mA
- Compact dimensions: 2.35" H x 2.60" W x 3.50" D
- Lightweight design at approximately 521.6 g
- Suitable for security systems and industrial automation
- Reliable performance in various environments
- Easy integration into space-constrained installations
Specifications
| Specifications | |
|---|---|
| Manufacturer | Altronix Corporation |
| Manufacturer Part Number | TP2420 |
| Brand Name | Altronix |
| Product Model | TP2420 |
| Product Name | TP2420 Step Down Transformer |
| Product Type | Step Down Transformer |
| Technical Information | |
| Power Rating | 20 VA |
| Power Description | |
| Input Voltage | 110 V AC |
| Output Voltage | 24 V AC |
| Maximum Line Current | 800 mA |
| Physical Characteristics | |
| Height | 2.35" (59.69 mm) |
| Width | 2.60" (66.04 mm) |
| Depth | 3.50" (88.90 mm) |
| Weight (Approximate) | 521.6 g |
| Miscellaneous | |
| Country of Origin | China |
FAQ
What is the input and output voltage of the Altronix TP2420 transformer?
The Altronix TP2420 accepts a 110 V AC input and delivers a 24 V AC output. This step-down conversion is designed for devices that require lower operating voltages from standard power sources.
What is the power rating of this transformer?
This transformer has a power rating of 20 VA (volt-amperes), which indicates its capacity to handle low-power loads effectively. It supports a maximum line current of 800 mA for consistent operation.
What are the dimensions and weight of the TP2420?
The transformer measures 2.35 inches in height, 2.60 inches in width, and 3.50 inches in depth, with an approximate weight of 521.6 grams. Its compact and lightweight design allows for flexible installation in tight spaces.
What are typical applications for this step-down transformer?
Common applications include powering security systems, access control panels, low-voltage lighting, and industrial automation equipment. It is suitable for any setup requiring reliable conversion from 110 V AC to 24 V AC.
Is this transformer suitable for rack-mounted installations?
The TP2420 is a compact plug-in unit designed for general installation rather than specific rack mounting. Its small form factor supports wall mounting, enclosure integration, or placement in confined areas.
What is the maximum line current supported by this transformer?
The maximum line current is 800 mA, ensuring the transformer can deliver stable output to connected devices without overloading. This specification aligns with its 20 VA power rating for low-power applications.
