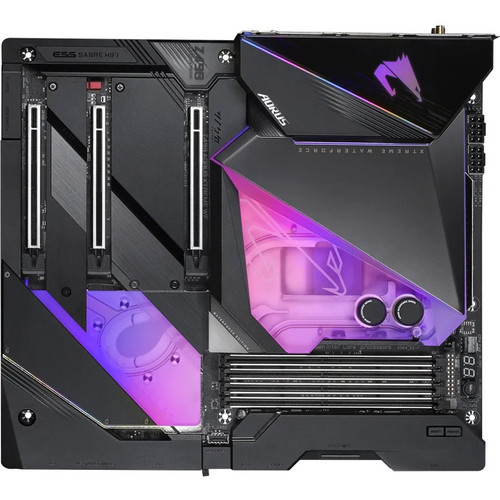

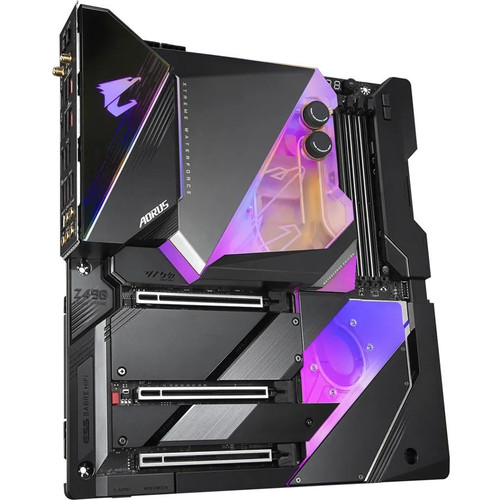

Aorus XTREME WATERFORCE Gaming Desktop Motherboard Socket LGA 1200 Intel Chipset Extended ATX Optane Memory Ready WF Z490 AORUS Z490 AORUS XTREME WF
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- All-In-One Monoblock covers both CPU, VRM , SSD and PCH area
- 60% more skived fins surface area for more efficient heat transfer
- High density copper fins for extreme heat dissipation
- Leak detection circuit around whole monoblock
- High compatible universal G1/4 threads
- Automatically emergency shut down with leak detection
- Addressable LED light effect
- Adopt high thermal conductivity thermal pad
- Solid back-plate to prevent motherboard distortion
Marketing Information:
Showcasing a state-of-the-art design, excellent functionality, an impressive thermal design, next generation network connectivity, a Hi-Fi level audio system, and AORUS aesthetics, the flagship Z490 AORUS XTREME WATERFORCE motherboard dominates the competition
EXTREME THERMAL DESIGN
Z490 AORUS XTREME WATERFORCE uses exclusive CPU/VRM/PCH watercooling monoblock to ensure stability and low temperature under full loading application and gaming.
EXTREME POWER DESIGN
To unleash the full potential of the new Intel 10-core CPU, the motherboard requires the best CPU power design. With the best quality components and GIGABYTE R&D design capability, Z490 AORUS XTREME WATERFORCE is a true beast among motherboards.
Z490 AORUS XTREME WATERFORCE motherboard uses an pure digital CPU power design which includes a digital PWM Controller with Smart Power Stages and is capable of providing 90A of power from each phase for a total of 1440A. This 100% digital controller, new Tantalum Polymer Capacitors array, and additional 8+8 Solid-pin CPU Power Connectors offer incredible precision and stability in delivering power to the motherboard's most power-hungry and energy-sensitive components, allowing enthusiasts to get the absolute maximum overclocking performance from the new 10-core 10th Gen. Intel® Core™ processors.
Chipset Manufacturer: Intel
Chipset Model: Z490
Total Processor Supported: 1
Processor Socket: Socket LGA-1200
Processor Generation Supported: 10th Gen
Processor Supported: Celeron,Core i3,Core i5,Core i7,Core i9,Pentium
Multi GPU Supported: CrossFire,SLI
Number of Memory Slots: 4
Memory Form Factor: DIMM,UDIMM
Maximum Memory Supported: 128 GB
Memory Speed Supported: 5000 MHz,4933 MHz,4800 MHz,4700 MHz,4600 MHz,4500 MHz,4400 MHz,4300 MHz,4266 MHz,4133 MHz,4000 MHz,3866 MHz,3800 MHz,3733 MHz,3666 MHz,3600 MHz,3466 MHz,3400 MHz,3333 MHz,3300 MHz,3200 MHz,3000 MHz,2933 MHz,2800 MHz,2666 MHz,2400 MHz,2133 MHz
Memory Technology: DDR4 SDRAM
Intel Optane Memory Ready: Yes
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 0,1,5,10
Onboard Video: CPU Dependent Video
Audio Channels: 7.1
Bluetooth: Yes
Bluetooth Standard: Bluetooth 5.1
Gigabit Ethernet: Yes
2.5Gigabit Ethernet: Yes
10Gigabit Ethernet: Yes
Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11a/b/g/n/ac
Total Number of Expansion Slots: 3
Total Number of PCI Express Slots: 3
Number of PCI Express x16 Slots: 3
PCI Express Standard: PCI Express 3.0
Total Number of USB Ports: 8
Number of USB 2.0 Ports: 2
Number of USB 3.2 Gen 1 Ports: 2
Number of USB 3.2 Gen 2 Type-A Ports: 4
S/PDIF: Yes
HDMI: Yes
HDMI Version: 1.4
DisplayPort: Yes
Number of Network (RJ-45) Ports: 2
Thunderbolt: Yes
Number of Thunderbolt 3 Ports: 2
Number of SATA Interfaces: 6
Number of M.2 Interfaces: 3
Total Number of Onboard USB Ports: 5
Number of Onboard USB 2.0 Ports: 4
Form Factor: Extended ATX
Width: 12.01" (305 mm)
Depth: 10.67" (271 mm)
- Compatible Intel Core i7 processor provides lightning fast speed and peak performance, even for the toughest tasks and intensive games
- DDR4 SDRAM compatible slot - Installs memory that reduces processor's idle time and enhances computer's performance
- Supported 0 RAID levels provide data reliability and fault tolerance
- DisplayPort transmits both audio and video signals through a common channel to deliver versatile performance
- Features Thunderbolt I/O that lets you move data between your devices and computers with unprecedented speed
- Extended ATX form factor brings a significant number of PCI slots, expansion slots, and peripheral ports with an enhanced heat dissipation capability
- With 2 USB 2.0 ports, connect devices for a quick data movement
[custom-specifications]
| Specifications | |
| Manufacturer | GIGABYTE Technology, Inc |
| Manufacturer Part Number | Z490 AORUS XTREME WF |
| Manufacturer Website Address | http://www.gigabyte.com |
| Brand Name | Aorus |
| Product Line | Ultra Durable |
| Product Model | Z490 AORUS XTREME WATERFORCE |
| Product Name | Ultra Durable Z490 AORUS XTREME WATERFORCE Gaming Desktop Motherboard |
| Product Type | Gaming Desktop Motherboard |
| Processor & Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | Z490 |
| Total Processor Supported | 1 |
| Processor Socket | Socket LGA-1200 |
| Processor Generation Supported | 10th Gen |
| Processor Supported | Celeron,Core i3,Core i5,Core i7,Core i9,Pentium |
| Multi GPU Supported | CrossFire,SLI |
| Memory | |
| Number of Memory Slots | 4 |
| Memory Form Factor | DIMM,UDIMM |
| Maximum Memory Supported | 128 GB |
| Memory Speed Supported | 5000 MHz,4933 MHz,4800 MHz,4700 MHz,4600 MHz,4500 MHz,4400 MHz,4300 MHz,4266 MHz,4133 MHz,4000 MHz,3866 MHz,3800 MHz,3733 MHz,3666 MHz,3600 MHz,3466 MHz,3400 MHz,3333 MHz,3300 MHz,3200 MHz,3000 MHz,2933 MHz,2800 MHz,2666 MHz,2400 MHz,2133 MHz |
| Memory Technology | DDR4 SDRAM |
| Intel Optane Memory Ready | Yes |
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | 0,1,5,10 |
| Video | |
| Onboard Video | CPU Dependent Video |
| Audio | |
| Audio Channels | 7.1 |
| Network & Communication | |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 5.1 |
| Gigabit Ethernet | Yes |
| 2.5Gigabit Ethernet | Yes |
| 10Gigabit Ethernet | Yes |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11a/b/g/n/ac |
| I/O Expansions | |
| Total Number of Expansion Slots | 3 |
| Total Number of PCI Express Slots | 3 |
| Number of PCI Express x16 Slots | 3 |
| PCI Express Standard | PCI Express 3.0 |
| Interfaces/Ports | |
| Total Number of USB Ports | 8 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.2 Gen 1 Ports | 2 |
| Number of USB 3.2 Gen 2 Type-A Ports | 4 |
| S/PDIF | Yes |
| HDMI | Yes |
| HDMI Version | 1.4 |
| DisplayPort | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Thunderbolt | Yes |
| Number of Thunderbolt 3 Ports | 2 |
| Onboard Interfaces | |
| Number of SATA Interfaces | 6 |
| Number of M.2 Interfaces | 3 |
| Total Number of Onboard USB Ports | 5 |
| Number of Onboard USB 2.0 Ports | 4 |
| Physical Characteristics | |
| Form Factor | Extended ATX |
| Width | 12.01" (305 mm) |
| Depth | 10.67" (271 mm) |
[/custom-specifications]
