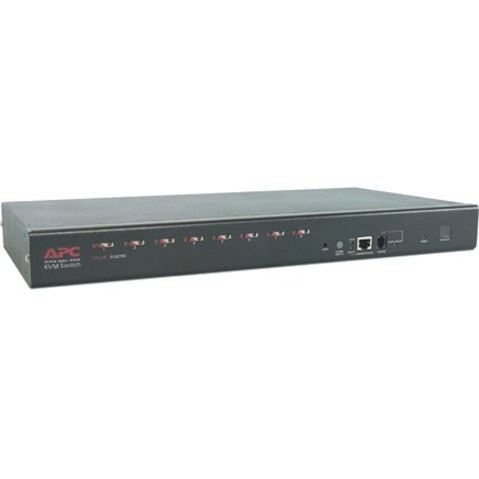

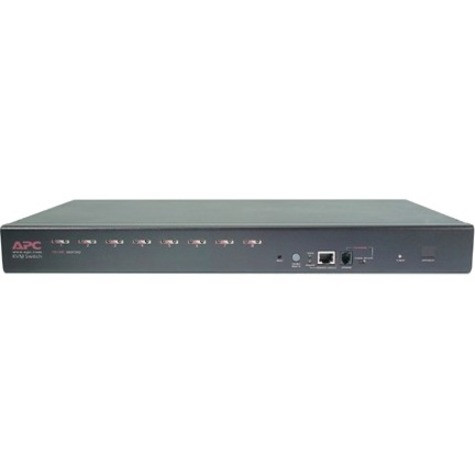

APC by Schneider Electric AP5201 APC 8-Port Multi-Platform Analog KVM Switch - 8 x 1 - VGA/SVGA - 1920 x 1440 - 1U Rack-Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The AP5201 features a comprehensive port layout including one VGA port for the console, two PS/2 ports for keyboard and mouse connectivity, and one RJ-45 network port for enhanced management capabilities. It operates at 60 Hz frequency, maintaining stable video synchronization across all connected computers.
Built for rack integration, the switch includes mounting brackets for standard 19-inch enclosures, simplifying installation in organized server setups. The design ensures seamless switching between sources, supporting efficient multi-computer administration.
This section brings together practical product details such as Number of Computers Supported, Number of Local Users Supported, Graphic Mode, Maximum Video Resolution, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This KVM switch centralizes control of multiple computers, reducing clutter and improving operational efficiency in IT environments. Its robust construction and reliable performance make it ideal for continuous use in professional settings.
High-Resolution Support
Delivers crisp video output up to 1920 x 1440, suitable for detailed monitoring and administrative tasks.
- VGA and SVGA compatibility
- 60 Hz refresh rate
Simplified Management
Enables quick switching between eight computers from one console, streamlining workflow and reducing manual intervention.
- Eliminates cable swapping
- Supports single-user control
Deployment / Use Cases
The AP5201 is engineered for environments where centralized computer management is critical. Its rack-mountable form factor and analog connectivity make it a practical choice for server rooms, data centers, and testing labs requiring efficient multi-system oversight.
Common applications include IT administration setups, educational computer labs, and small to medium business server clusters. The switch's compatibility with various peripherals, such as specific mouse models, enhances its utility in diverse operational scenarios.
Server Room Integration

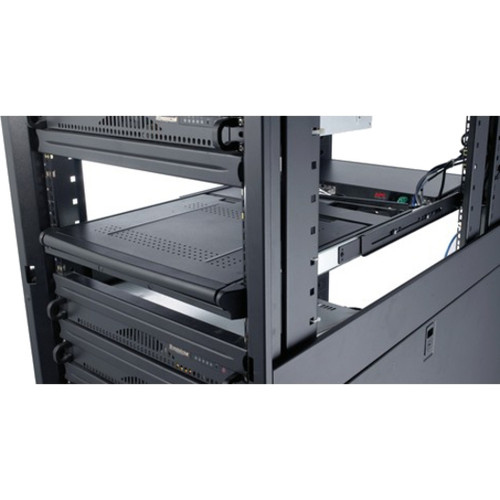

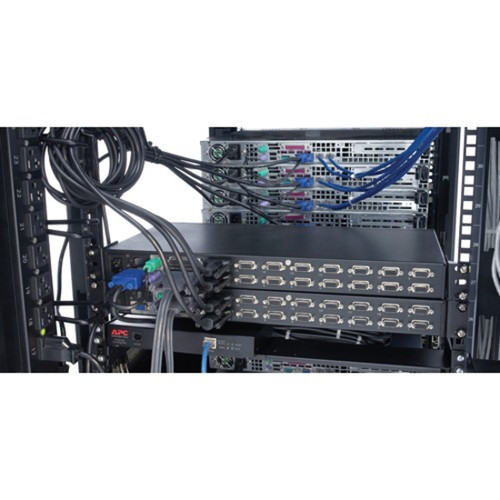

Ideal for rack-mounted server deployments, providing organized access to multiple systems from a single console location.
Legacy System Support
Maintains connectivity with older computers and peripherals through analog VGA and PS/2 interfaces, extending the lifecycle of existing hardware.
Physical Profile
Designed for standard rack installation, the AP5201 occupies 1U of vertical space with dimensions of 1.75" (44.45 mm) height, 17" (431.80 mm) width, and 8.25" (209.55 mm) depth. Its compact footprint optimizes rack utilization while the approximate weight of 10 lb (4535.92 g) ensures stable mounting. The included brackets facilitate secure attachment in 19-inch enclosures, supporting tidy cable management and accessible front-panel controls.
- Width
- 17" (431.80 mm)
- Depth
- 8.25" (209.55 mm)
- Height
- 1U
- Weight
- 10 lb (4535.92 g)
What's in the Box
The package includes all necessary components for immediate deployment and setup.
Highlights
- Switch between 8 computers from 1 console without performance loss
- Supports VGA and SVGA video up to 1920 x 1440 resolution
- 1U rack-mountable design with included mounting brackets
- Includes PS/2 ports for keyboard and mouse connectivity
- Features one RJ-45 network port for management
- Operates at 60 Hz for stable video synchronization
- Compatible with specific Microsoft and Logitech mouse models
- Backed by a 2-year limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | AP5201 |
| Brand Name | APC by Schneider Electric |
| Product Name | 8 Port Multi-Platform Analog KVM Switch |
| Product Type | KVM Switchbox |
| Technical Information | |
| Number of Computers Supported | 8 |
| Number of Local Users Supported | 1 |
| Video | |
| Graphic Mode | VGA,SVGA |
| Maximum Video Resolution | 1920 x 1440 |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| PS/2 Port | Yes |
| VGA | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of PS/2 Ports | 2 |
| Number of VGA Ports | 1 |
| Power Description | |
| Frequency | 60 Hz |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Rack Height | 1U |
| Height | 1.75" (44.45 mm) |
| Width | 17" (431.80 mm) |
| Depth | 8.25" (209.55 mm) |
| Weight (Approximate) | 10 lb (4535.92 g) |
| Miscellaneous | |
| Package Contents | 1 x KVM Switch AP5201 (8 port) 1 x Configuration cable 1 x L5-15 to IEC power cable 2 x Brackets for a 19-inch enclosure 1 x Installation Manual 1 x KVM Switch Utility CD 1 x Warranty card |
| Compatibility | Microsoft Intellimouse Microsoft Intellimouse explorer Logitech FirstMouse+ |
| Country of Origin | Taiwan |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
How many computers can the APC AP5201 KVM switch support?
The APC AP5201 supports up to eight computers, allowing a single user to control all of them from one console. This 8x1 configuration is ideal for managing multiple systems in server rooms, data centers, or IT labs without needing separate peripherals for each computer.
What video resolutions does this KVM switch support?
This switch supports VGA and SVGA graphic modes with a maximum video resolution of 1920 x 1440 at 60 Hz. It delivers clear analog video output suitable for administrative tasks and monitoring, ensuring reliable display performance across all connected computers.
Is the APC AP5201 rack-mountable?
Yes, the AP5201 is designed for rack mounting with a 1U form factor. It includes two brackets for installation in standard 19-inch enclosures, making it easy to integrate into organized server setups. The compact dimensions optimize rack space while providing accessible front-panel controls.
What types of ports are available on this KVM switch?
The switch includes one VGA port for the console, two PS/2 ports for keyboard and mouse connectivity, and one RJ-45 network port for enhanced management. These ports support analog video and input devices, offering broad compatibility with various computer systems and peripherals.
What is included in the package with the APC AP5201?
The package contains the KVM switch, a configuration cable, an L5-15 to IEC power cable, two mounting brackets for 19-inch enclosures, an installation manual, a utility CD, and a warranty card. These items provide everything needed for setup and operation in rack-mounted environments.
What warranty covers the APC AP5201 KVM switch?
The APC AP5201 comes with a 2-year limited warranty, providing coverage for defects in materials and workmanship. This warranty ensures reliable performance and support for professional deployments, backed by Schneider Electric's service network.
