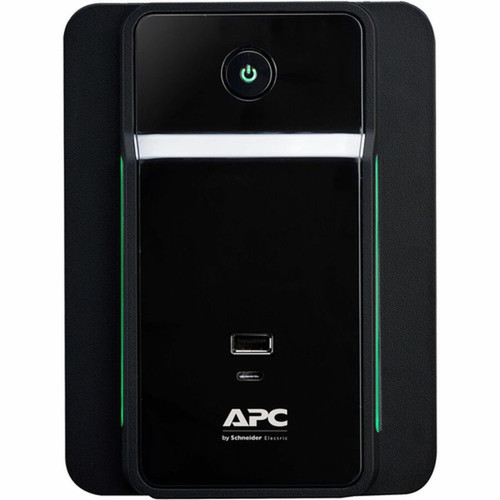

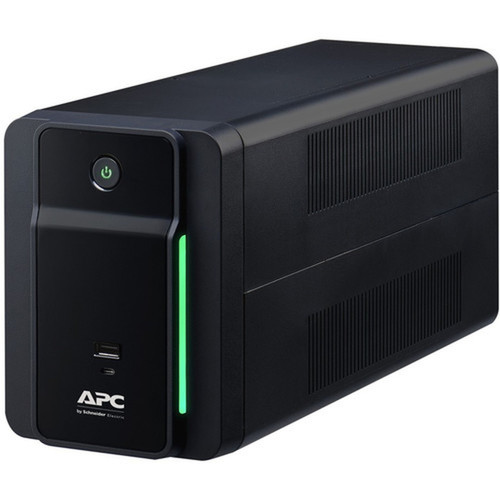

APC by Schneider Electric BVK950M2 APC Back-UPS 950VA/480W Tower UPS - 6 Outlets - 120V - 6-Hour Recharge - User-Replaceable Battery
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This line-interactive UPS operates with a stepped approximated sine wave output, compatible with most computing and networking equipment. It accepts a wide input voltage range from 108V to 150V AC, automatically regulating to a stable 120V AC output at 60 Hz.
The internal 12V DC lead-acid battery system offers 9000 mAh capacity and 367.2 kJ energy, supporting the rated runtime. A low-battery alarm alerts users when backup power is nearly depleted, while an EPO (Emergency Power Off) port allows for remote shutdown integration.
Surge protection is rated at 350 joules, and the unit includes RJ-45 data line protection to shield connected network equipment from surges traveling through Ethernet cables.
This section brings together practical product details such as Plug/Connector Type, Receptacle Type, Receptacle Detail, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The APC Back-UPS combines essential power protection with practical usability features. An LED display clearly indicates unit status and utility power conditions, while automatic voltage regulation maintains stable output during brownouts or overvoltage events without draining the battery.
User-Replaceable Battery
The battery is user-replaceable, extending the UPS lifespan and reducing maintenance costs. The RBC17 replacement battery is sold separately for easy field servicing.
Smart Charging Ports
Two USB smart charging ports provide convenient power for mobile devices, with HID compliance ensuring broad compatibility across smartphones and tablets.
Compact Tower Design
Measuring 6.30" x 4.72" x 13.98" and weighing 13.67 lb, the tower form factor fits easily in space-constrained environments without requiring rack mounting.
Deployment / Use Cases
Deploy this UPS in environments where reliable power is critical for uninterrupted operation. Its 950VA capacity suits typical desktop systems and peripheral loads, while the six outlets accommodate multiple devices without needing power strips.
The tower format allows placement under desks, on shelves, or behind furniture, making it versatile for both home and office layouts. Applications include home offices, small business workstations, point-of-sale systems, and network infrastructure nodes.
This section brings together practical product details such as Plug/Connector Type, Receptacle Type, Receptacle Detail, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Home Office Setup
Ideal for protecting desktop computers, monitors, external storage, and networking gear from power disruptions, ensuring work continuity and data integrity during outages.
Small Business Network
Supports routers, switches, and network-attached storage devices, providing runtime for orderly shutdowns and surge protection for data lines.
Physical Profile
The black tower enclosure measures 6.30 inches high, 4.72 inches wide, and 13.98 inches deep, with a weight of approximately 13.67 pounds. This compact design minimizes desk or floor space usage while providing stable placement.
The included 4.9-foot power cord offers flexible positioning relative to wall outlets. The unit meets environmental standards including REACH, WEEE, RoHS, and China RoHS, reflecting responsible manufacturing practices.
- Width
- 4.72" (120 mm)
- Depth
- 13.98" (355 mm)
- Height
- 6.30" (160 mm)
- Weight
- 13.67 lb (6200.61 g)
- Length
- 4.9 ft (1.50 m)
Highlights
- 950VA/480W line-interactive tower UPS for reliable power backup
- Six NEMA 5-15R outlets with surge and battery backup protection
- Automatic voltage regulation (AVR) corrects brownouts and overvoltages
- User-replaceable lead-acid battery (RBC17 sold separately)
- RJ-45 data line protection shields networked equipment from surges
- Two USB smart charging ports for mobile devices
- LED status display for clear power and battery condition monitoring
- Compact tower form factor fits easily in home or office environments
- 6-hour typical battery recharge time after full discharge
- 3-year limited warranty from APC by Schneider Electric
Specifications
| Specifications | |
|---|---|
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | BVK950M2 |
| Brand Name | APC by Schneider Electric |
| Product Line | Back-UPS |
| Product Name | Back-UPS 950VA Tower UPS |
| Product Type | Line-interactive UPS |
| Technical Information | |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 6 x NEMA 5-15R |
| Number of Battery & Surge Outlets | 6 |
| Dataline Protection | RJ-45 |
| Cord Length | 4.9 ft (1.50 m) |
| Phase | Single Phase |
| Application/Usage | Home,Office,Computer,External Hard Drive,Wireless Router,Network Device |
| Power Description | |
| Load Capacity (VA) | 950 VA |
| Load Capacity (Watt) | 480 W |
| Input Voltage | 120 V |
| Input Voltage Range | 108 V AC - 150 V AC |
| Output Voltage | 120 V AC |
| Output Frequency | 60 Hz |
| Waveform Type | Stepped Approximated Sine Wave |
| Surge Energy Rating | 350 J |
| Management | |
| Alarm | Low Battery |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| EPO Port | Yes |
| USB (HID Compliant) Port | Yes |
| Battery Information | |
| DC System Voltage | 12 V DC |
| Battery Chemistry | Lead Acid |
| Battery Capacity | 9000 mAh |
| Battery Energy | 367.2 kJ |
| Typical Battery Recharge Time | 6 Hour |
| Physical Characteristics | |
| Product Color | Black |
| Height | 6.30" (160 mm) |
| Width | 4.72" (120 mm) |
| Depth | 13.98" (355 mm) |
| Form Factor | Tower |
| Weight (Approximate) | 13.67 lb (6200.61 g) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE),Restriction of Hazardous Substances (RoHS),China Restriction of Hazardous Substances (China RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the power capacity of this APC Back-UPS?
This UPS has a load capacity of 950 volt-amps (VA) and 480 watts (W). This rating determines how much equipment it can support during a power outage, suitable for typical desktop computers, monitors, and networking devices.
How many outlets does this UPS have, and what type are they?
The unit provides six NEMA 5-15R outlets, all offering both surge protection and battery backup. This allows you to connect multiple devices like computers, monitors, and routers directly without needing additional power strips.
What is the battery recharge time for this UPS?
After a complete discharge, the typical battery recharge time is six hours. This ensures the UPS is ready to provide full backup capacity again relatively quickly following an outage.
Can I replace the battery myself?
Yes, the battery is user-replaceable. The RBC17 replacement battery is sold separately, allowing you to easily extend the UPS lifespan without professional service, which reduces long-term ownership costs.
Does this UPS provide data line protection?
Yes, it includes RJ-45 data line protection. This safeguards connected network equipment, such as routers or switches, from power surges that can travel through Ethernet cables, offering comprehensive protection for your setup.
What is the input and output voltage for this unit?
The input and output voltage is 120 volts AC. It accepts a wide input range from 108V to 150V AC, with automatic voltage regulation to correct variations and provide stable 120V output without switching to battery unnecessarily.
What power capacity is listed for this UPS?
The listed power specification is 950 VA, which helps position the unit for the right load level and installation role.
How many outlets are available?
The product includes 6, which helps buyers understand how many connected devices it can support in its intended deployment.
