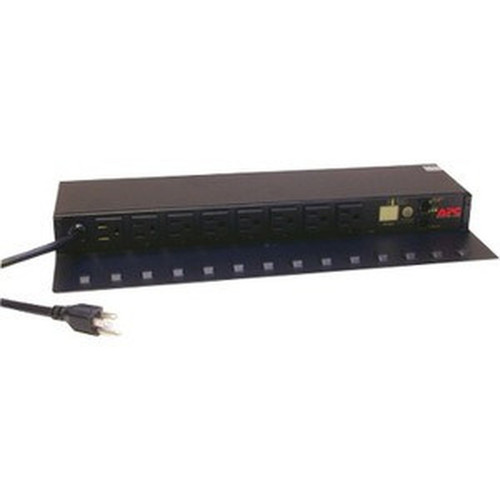

APC by Schneider Electric AP7900B Rack PDU Switched - 1U - 1.44 kVA - 120V 15A - 8x NEMA 5-15R Outlets
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This switched PDU provides detailed power metering with +/- 5% accuracy, enabling capacity planning and load balancing to prevent circuit overloads. The output voltage is stabilized at 120V AC, ensuring consistent power delivery to connected devices. The 12-foot power cord offers flexible installation, while the included cord retention brackets secure connections to prevent accidental dislodgement.
The PDU's physical dimensions are optimized for standard 19-inch racks, with a height of 1.73 inches (44 mm), width of 17.52 inches (445 mm), and depth of 4.25 inches (108 mm). It weighs approximately 5 pounds (2267.96 grams), making it lightweight yet durable for rack deployment. The unit is environmentally compliant with RoHS standards and manufactured in the Philippines.
Relevant factors for this section include PDU Type, Plug/Connector Type, Plug/Connector Detail, Input Voltage. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The APC AP7900B enhances operational efficiency and reliability through advanced power management features. Remote outlet switching allows IT administrators to reboot locked-up equipment from anywhere, reducing downtime and maintenance costs. The integrated metering provides real-time insights into power consumption, supporting energy efficiency initiatives and scope 1 and 3 emissions tracking.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Remote Reboot Capability, Power Metering with +/- 5% Accuracy, EcoStruxure IT Integration, 1U Rack-Space Efficient, RoHS Compliant.
Deployment / Use Cases
This switched PDU is ideal for colocation data centers where remote management is essential for maintaining uptime across distributed infrastructure. Its 1U design and front/rear placement options make it versatile for high-density server racks, allowing efficient power distribution without consuming excessive space.
In large enterprise data centers, the PDU supports load balancing and capacity planning to optimize power usage and prevent overloads. For remote edge computing sites, the remote management capabilities enable IT teams to control power without on-site visits, enhancing reliability in unmanned locations. The unit also suits network closets and server rooms where organized power distribution and monitoring are critical.
Colocation Data Centers
Provides remote power control and metering for multi-tenant environments, ensuring efficient power allocation and reducing physical access needs.
- Remote outlet switching
- Load balancing support
- 1U rack footprint
Edge Computing Sites
Enables power management for unmanned locations, allowing reboots and monitoring via network platforms to maintain operations.
- EcoStruxure IT compatible
- 12-foot cord for flexibility
- Horizontal mounting
Physical Profile
The PDU features a low-profile 1U rack height, occupying minimal vertical space in standard 19-inch racks. Its dimensions—1.73 inches high, 17.52 inches wide, and 4.25 inches deep—ensure compatibility with most rack enclosures. The horizontal mounting orientation and included brackets allow secure installation in both front and rear positions, adapting to various rack configurations. The lightweight design at 5 pounds simplifies handling during deployment, while the robust construction supports continuous operation in data center environments.
- Width
- 17.52" (445 mm)
- Depth
- 4.25" (108 mm)
- Height
- 1U
- Weight
- 5 lb (2267.96 g)
- Length
- 12 ft (3.65 m)
What's in the Box
The package includes all necessary components for installation and operation:
Highlights
- 1.44 kVA power capacity with 15A input for reliable distribution
- Eight NEMA 5-15R outlets for connecting multiple devices
- Remote on/off outlet switching to reboot equipment without physical access
- +/- 5% metering accuracy for precise load balancing and capacity planning
- 1-Year Secure Network Management Card subscription included
- EcoStruxure IT integration for centralized monitoring and control
- 1U rack-mountable design with front or rear placement options
- RoHS compliant and environmentally friendly construction
- 12-foot power cord for flexible installation
- 2-year limited warranty for added reliability
Specifications
| Specifications | |
|---|---|
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | AP7900B |
| Brand Name | APC by Schneider Electric |
| Product Name | Rack PDU, Switched, 1U, 15A, 100/120V, (8)5-15 |
| Product Type | PDU |
| Technical Information | |
| PDU Type | Switched |
| Plug/Connector Type | NEMA 5-15P |
| Plug/Connector Detail | 1 x NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 8 x NEMA 5-15R |
| Power Description | |
| Input Voltage | 100 V,120 V |
| Output Voltage | 120 V AC |
| Power Rating (VA) | 1.44 kVA |
| Input Current | 15 A |
| Physical Characteristics | |
| Mounting Orientation | Horizontal |
| Mount Type | Rack-mountable |
| Placement | Front,Rear |
| Rack Height | 1U |
| Cord Length | 12 ft (3.65 m) |
| Height | 1.73" (44 mm) |
| Width | 17.52" (445 mm) |
| Depth | 4.25" (108 mm) |
| Weight (Approximate) | 5 lb (2267.96 g) |
| Miscellaneous | |
| Package Contents | Rack PDU, Switched, 1U, 15A, 100/120V, (8)5-15 Cord retention bracket(s) Horizontal mounting brackets Installation guide User manual |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What is the power capacity of this APC rack PDU?
The APC AP7900B rack PDU has a power rating of 1.44 kVA with a 15A input current. It supports input voltages of 100V and 120V, delivering a stable 120V AC output to connected equipment. This capacity is suitable for distributing power to multiple devices in rack environments, such as servers and networking gear, while allowing for load balancing to prevent circuit overloads.
How many outlets does this PDU have, and what type are they?
This PDU features eight NEMA 5-15R outlets, which are standard 15-amp receptacles commonly used in North America for powering IT equipment. The input plug is a single NEMA 5-15P, connecting to standard wall outlets or upstream power sources. This configuration supports multiple devices like servers, switches, and storage units in a rack setup.
Can I control the outlets remotely with this switched PDU?
Yes, the APC AP7900B is a switched PDU that enables remote on/off control of individual outlets. This allows IT administrators to reboot connected equipment, such as locked-up servers or network devices, from anywhere via network management platforms. The feature reduces downtime by eliminating the need for physical access to the rack, especially useful in colocation or edge computing sites.
What rack size does this PDU occupy, and how is it mounted?
This PDU occupies 1U of rack height, making it space-efficient in standard 19-inch racks. It is designed for horizontal mounting and can be installed in either front or rear rack positions, depending on your cable management preferences. The package includes horizontal mounting brackets for secure attachment, and its compact dimensions—1.73 inches high, 17.52 inches wide, and 4.25 inches deep—ensure compatibility with most rack enclosures.

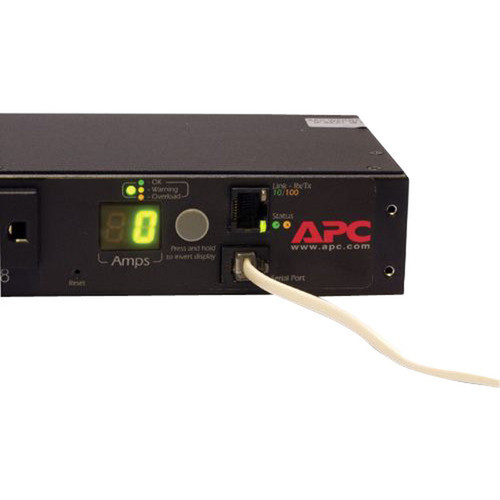

Does this PDU include power metering capabilities?
Yes, the PDU includes power metering with +/- 5% accuracy, measured in amps. This allows you to monitor real-time power consumption, plan capacity, and balance loads across circuits to optimize energy usage and prevent overloads. The metering data can be accessed through management platforms like EcoStruxure IT, supporting energy efficiency tracking and emissions reporting.
What management options are available for this PDU?
The PDU includes a 1-Year Secure Network Management Card subscription, enabling integration with Schneider Electric's EcoStruxure IT platform and other compatible management systems. This allows centralized monitoring, control, and automation of power distribution across your infrastructure. You can manage outlet switching, view power metrics, and receive alerts, enhancing operational efficiency in data centers or remote locations.
