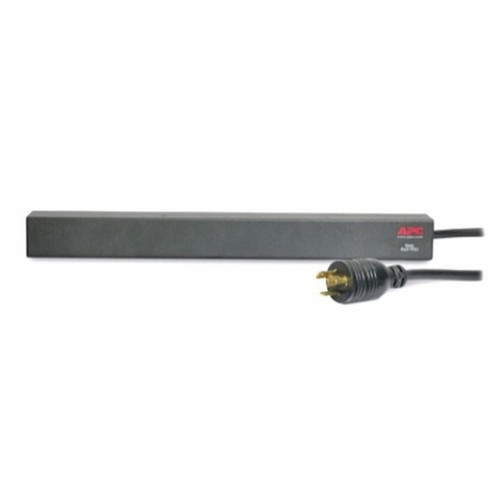

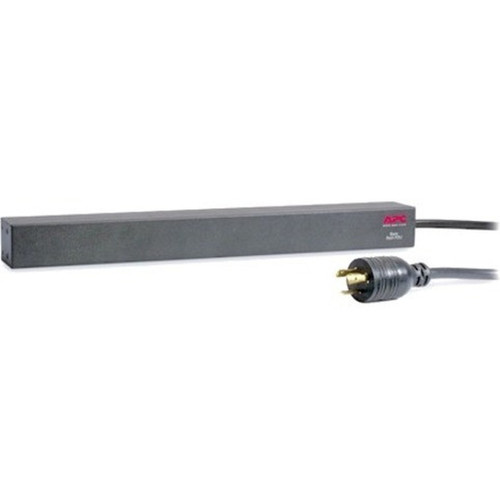

APC by Schneider Electric AP9566 Basic Rack PDU - 3.33 kVA - 12 x IEC 60320 C13 Outlets - 1U Horizontal Mount - 208V - 16A
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This PDU operates with a NEMA L6-20P plug, accepting input voltages of 200V, 208V, or 230V and delivering a stable 208V AC output. The 3.33 kVA power rating supports up to 16A current, distributing power across 12 IEC 60320 C13 receptacles commonly used for servers, networking equipment, and other rack-mounted devices. The horizontal mounting orientation and 1U rack height ensure compatibility with standard rack configurations without consuming excessive vertical space.
The unit measures 17.60 inches wide, 2.24 inches deep, and 1.73 inches high, with a weight of approximately 5.51 pounds. Its compact dimensions allow it to fit seamlessly into crowded rack environments. The PDU is environmentally compliant with RoHS standards and includes a 2-year limited warranty from APC by Schneider Electric.
Relevant factors for this section include PDU Type, Plug/Connector Type, Receptacle Type, Input Voltage. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This PDU offers several advantages for IT professionals managing rack-based infrastructure. Its 12 C13 outlets provide ample connectivity for multiple devices, reducing the need for additional power strips or PDUs. The horizontal mounting design and 1U form factor maximize rack space efficiency, while the toolless mounting kit enables quick installation without specialized tools.
High-Density Power Distribution
With 12 IEC 60320 C13 outlets, this PDU supports high-density rack configurations, powering servers, switches, and storage units from a single unit.
- 12 outlets reduce clutter
- Standard C13 compatibility
- Supports up to 16A load
Flexible Rack Integration
The 1U horizontal mount fits standard 19-inch racks, with front or rear placement options to match your rack layout and cable management preferences.
- 1U rack height
- Horizontal orientation
- Front/Rear placement
Deployment / Use Cases
The AP9566 Basic Rack PDU is ideal for environments where reliable, straightforward power distribution is required without advanced monitoring features. It suits small to medium-sized server rooms, network closets, and data centers that need to power multiple rack-mounted devices efficiently.
Common use cases include powering server racks in office IT rooms, supporting networking equipment in telecom cabinets, and distributing power in educational or government data centers. Its 208V output makes it compatible with many commercial power systems, while the basic design keeps costs manageable for standard power distribution tasks.
Server Rack Power
Deploy this PDU in server racks to provide centralized power for multiple servers, ensuring consistent 208V supply to critical hardware.
- Powers 12+ devices
- 208V server compatibility
- Reduces power strip needs
Network Infrastructure
Use it in network racks to support switches, routers, and other networking gear, with the horizontal mount fitting neatly alongside equipment.
- Fits network racks
- Powers networking devices
- Streamlines cable management
Physical Profile
The PDU features a black finish that blends with most rack equipment. Its dimensions of 17.60 inches wide, 2.24 inches deep, and 1.73 inches high allow it to mount cleanly within a 1U rack space. The 12-foot power cord provides flexibility in connecting to distant power sources, and the lightweight design at 5.51 pounds simplifies handling during installation.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1U, 17.60" (447 mm), 2.24" (57 mm), 5.51 lb (2499.29 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 17.60" (447 mm)
- Depth
- 2.24" (57 mm)
- Height
- 1U
- Weight
- 5.51 lb (2499.29 g)
- Length
- 12 ft (3.65 m)
What's in the Box
The package includes the Basic Rack 3.328kVA PDU unit, an installation guide, and rack mounting brackets for straightforward setup.
Package contents include Basic Rack 3.328kVA PDU Installation guide Rack mounting brackets, Basic Rack 3.328kVA PDU. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- 3.33 kVA power rating for robust distribution
- 12 IEC 60320 C13 outlets support multiple devices
- 1U horizontal mount fits standard 19-inch racks
- 208V output compatible with commercial power systems
- NEMA L6-20P plug for reliable input connection
- Toolless mounting kit for easy installation
- Front or rear rack placement flexibility
- RoHS compliant and environmentally friendly
- 2-year limited warranty from APC by Schneider Electric
- 12-foot power cord for convenient connectivity
Specifications
| Specifications | |
|---|---|
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | AP9566 |
| Brand Name | APC by Schneider Electric |
| Product Line | Basic Rack |
| Product Name | Basic Rack 3.328kVA PDU |
| Packaged Quantity | 1 Each |
| Product Type | PDU |
| Technical Information | |
| PDU Type | Basic |
| Plug/Connector Type | NEMA L6-20P |
| Receptacle Type | IEC 60320 C13 |
| Receptacle Detail | 12 x IEC 60320 C13 |
| Power Description | |
| Input Voltage | 200 V,208 V,230 V |
| Output Voltage | 208 V AC |
| Power Rating (VA) | 3.33 kVA |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Mounting Orientation | Horizontal |
| Mount Type | Rack-mountable |
| Placement | Front,Rear |
| Rack Height | 1U |
| Cord Length | 12 ft (3.65 m) |
| Height | 1.73" (44 mm) |
| Width | 17.60" (447 mm) |
| Depth | 2.24" (57 mm) |
| Weight (Approximate) | 5.51 lb (2499.29 g) |
| Miscellaneous | |
| Package Contents | Basic Rack 3.328kVA PDU Installation guide Rack mounting brackets |
| Country of Origin | India |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What is the power capacity of this PDU?
This PDU has a power rating of 3.33 kVA, delivering 208V output with support for up to 16A current. It accepts input voltages of 200V, 208V, or 230V, making it suitable for various commercial power environments.
How many outlets does this PDU have and what type are they?
It features 12 IEC 60320 C13 outlets, which are standard for powering servers, networking equipment, and other rack-mounted devices. This high outlet count allows you to power multiple devices from a single PDU.
What rack mounting options does this PDU support?
This PDU is designed for 1U horizontal mounting in standard 19-inch racks. It can be installed in either front or rear rack positions, and includes toolless mounting brackets for quick and easy setup.
What input plug type does this PDU use?
It uses a NEMA L6-20P plug for power input. This plug type is commonly used for 208V applications and provides a secure connection to compatible power sources.
What is included in the package with this PDU?
The package contains the Basic Rack 3.328kVA PDU unit, an installation guide, and rack mounting brackets. Everything needed for basic installation is included for immediate deployment.
What warranty does this PDU come with?
APC by Schneider Electric provides a 2-year limited warranty for this PDU. The unit is also RoHS compliant, meeting environmental standards for hazardous substance restrictions.
