APC by Schneider Electric AR3340B2 NetShelter SX 42U Enclosed Rack Cabinet – 1991H x 750W x 1200D mm - 2250 lb Capacity - Black - 19" Wide - TAA
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The NetShelter SX series is engineered for maximum stability and efficient thermal management. The AR3340B2 features a fully welded frame with heavy-duty construction, supporting up to 2250 lb dynamic load capacity. Ventilation is optimized through perforated front and rear doors, ensuring adequate airflow for high-density servers and networking gear. The cabinet depth of 47.20" accommodates deep equipment, while the 19" rack width ensures universal compatibility.
Environmental monitoring is supported via optional accessories, and the cabinet includes provisions for cable management and power distribution. The 42U height provides ample space for organizing servers, switches, and patch panels. The cabinet is also designed to facilitate sustainability tracking with complete environmental data compliant with RoHS and REACH directives.
Key Product Advantages
The APC NetShelter SX AR3340B2 delivers robust capacity and build quality for mission-critical deployments. Its 2250 lb dynamic load rating supports heavy networking and server installations, while the 42U height maximizes space efficiency. The enclosed cabinet design enhances security and airflow management, and the TAA compliance makes it suitable for government and defense sectors.
Key benefits include:
High Density Ready
Optimized for AI and high-density applications with improved airflow and load capacity.
- 2250 lb dynamic load
- Enhanced ventilation
- 2nd Gen design
Flexible Deployment
Baying hardware allows linking multiple cabinets for scalable configurations.
- Expandable
- Removable side panels
- Standard 19" width
Compliance & Sustainability
TAA compliant and environmentally responsible with RoHS and REACH certifications.
- TAA compliant
- RoHS/REACH
- 5-year warranty
Deployment / Use Cases
The NetShelter SX AR3340B2 is ideal for data centers, server rooms, and colocation facilities requiring a secure, high-capacity enclosure. Its 42U height and 19" width support standard rack-mount servers, switches, patch panels, and UPS equipment. The enclosed design with lockable doors provides physical security, while the baying hardware enables seamless expansion of infrastructure.
Typical use cases include:
Enterprise Data Centers
Deploy in rows with baying hardware for high-density server and storage environments.
High-Performance Computing
Supports heavy AI and HPC clusters with adequate ventilation and load capacity.
Government & Defense
TAA compliance ensures eligibility for federal and secure installations.

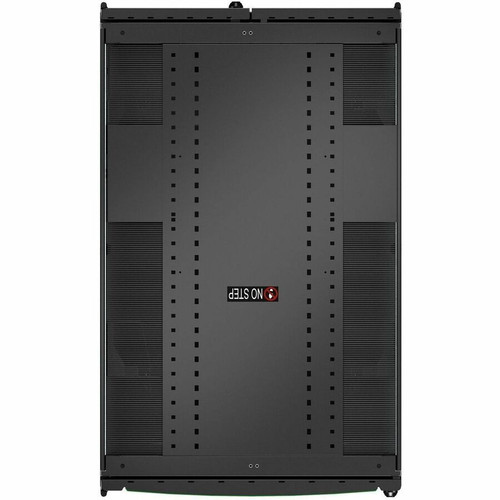

Physical Profile
The cabinet is finished in black (color family black) and features a steel construction with a 42U rack height, 19" rack width, and 37.76" rack depth. External dimensions are 78.40" H x 29.50" W x 47.20" D, with an approximate weight of 355.74 lb. The enclosed design includes removable side panels for cable access and baying hardware for linking multiple cabinets. The standard 19" width ensures compatibility with a wide range of rack-mount equipment.
- Width
- 29.50" (749.30 mm)
- Depth
- 47.20" (1198.88 mm)
- Height
- 78.40" (1991.36 mm)
- Weight
- 2250 lb (1020582.83 g)
What's in the Box
The AR3340B2 ships with the NetShelter SX Rack Cabinet and baying hardware for connecting multiple cabinets.
Highlights
- 42U enclosed rack cabinet with 19" rack width and 37.76" rack depth
- Dynamic weight capacity of 2250 lb for heavy equipment
- 2nd Gen design optimized for high-density AI and networking applications

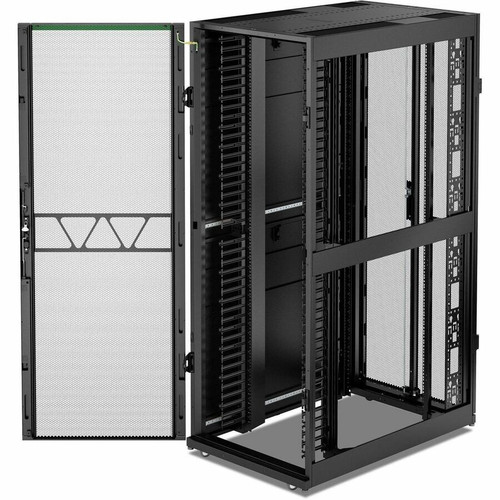

- Enhanced airflow with perforated front and rear doors
- Baying hardware included for multi-cabinet installations
- TAA compliant for government and defense use
- RoHS and REACH compliant for environmental sustainability
- Removable side panels for easy cable management and access
- 5-year limited warranty for long-term reliability
Specifications
| Specifications | |
|---|---|
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | AR3340B2 |
| Brand Name | APC by Schneider Electric |
| Product Line | NetShelter SX |
| Product Name | NetShelter SX Rack Cabinet |
| Packaged Quantity | 1 Pack |
| Product Type | Rack Cabinet |
| Technical Information | |
| Rack Type | Enclosed Cabinet |
| Application/Usage | Server,Data Center |
| Mounting Preference | No Preference |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Dynamic/Rolling Weight Capacity | 2250 lb (1020582.83 g) |
| Height | 78.40" (1991.36 mm) |
| Width | 29.50" (749.30 mm) |
| Depth | 47.20" (1198.88 mm) |
| Rack Height | 42U |
| Rack Width | 19" (482.60 mm) |
| Rack Depth | 37.76" (959.10 mm) |
| Weight (Approximate) | 355.74 lb (161360.95 g) |
| Miscellaneous | |
| Package Contents | NetShelter SX Rack Cabinet Baying Hardware |
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
What is the dynamic weight capacity of the APC NetShelter SX AR3340B2?
The AR3340B2 has a dynamic/rolling weight capacity of 2250 lb (1020582.83 g), making it suitable for heavy server and networking equipment. This robust load rating supports high-density configurations in data center environments.
Does the AR3340B2 rack cabinet come with side panels?
Yes, the NetShelter SX AR3340B2 is an enclosed cabinet that includes removable side panels. These panels allow easy access for cable management and installation while providing physical security for the equipment inside.
What is the rack height and width of this cabinet?
The cabinet has a rack height of 42U and a rack width of 19 inches (482.60 mm). It supports standard rack-mount equipment and provides ample vertical space for servers, switches, and other devices.
Is the NetShelter SX AR3340B2 TAA compliant?
Yes, the AR3340B2 is TAA compliant, ensuring it meets the requirements for U.S. government and defense procurement. This makes it a reliable choice for federal and secure installations.
What environmental compliance standards does this cabinet meet?
The AR3340B2 is compliant with RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization and Restriction of Chemicals) directives, supporting sustainability initiatives and environmental responsibility.
Can multiple AR3340B2 cabinets be connected together?
Yes, the cabinet includes baying hardware that allows multiple NetShelter SX cabinets to be joined side-by-side for larger deployments. This enables scalable infrastructure in data centers and server rooms.
