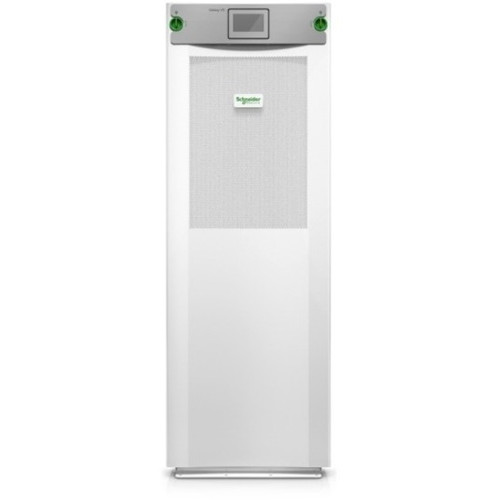

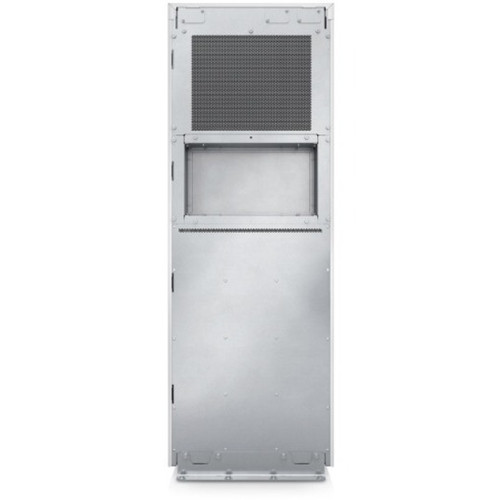

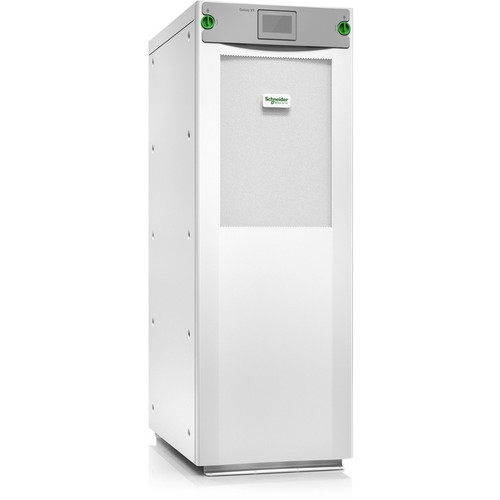

APC by Schneider Electric GVSUPS20KB4FS Galaxy VS 20kVA Tower UPS - Double Conversion Online - 208V AC Input - 10. 5 Min Full Load Runtime
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This double conversion online UPS continuously conditions incoming power, isolating connected equipment from spikes, sags, harmonics, and frequency variations. It delivers a consistent 60 Hz sine wave output at selectable voltages of 200V, 208V, or 220V AC, matching the requirements of three-phase IT and industrial equipment.
The battery subsystem utilizes two sealed lead-acid batteries with a 9000 mAh capacity, providing a runtime of 10.5 minutes at full load and extending to 26.5 minutes at half load. The DC bus operates at 480V, and the system includes thermal dissipation of 4356 BTU/h, managed within an operating temperature range up to 40°C (104°F).
This section brings together practical product details such as Transfer Time, Phase, Application/Usage, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The Galaxy VS 20kVA Tower UPS combines high-capacity power protection with the flexibility of a tower form factor, making it suitable for installations where rack mounting is not required or where floor space is allocated for standalone power systems.
Zero Transfer Time Protection
Double conversion topology ensures no break in power during transitions between utility and battery, providing seamless protection for sensitive electronics.
- Eliminates power interruptions
- Maintains continuous operation
Advanced Remote Management
Integrated SNMP and Modbus interfaces enable comprehensive remote monitoring and management, facilitating proactive maintenance and reducing onsite intervention needs.
- Supports SNMP/HTTP and SNMP/Modbus
- Enables centralized power management
Robust Environmental Tolerance
Designed to operate in challenging conditions with a wide storage temperature range and high maximum operating elevation, ensuring reliability in diverse facility environments.
- Operates up to 40°C (104°F)
- Storage from -15°C to 40°C
Deployment / Use Cases
This UPS is engineered for applications where power quality and availability are non-negotiable. Its 20 kVA capacity and three-phase support make it ideal for protecting server rooms, network closets, industrial control systems, and medical equipment that require clean, uninterrupted power.
The tower form factor is particularly advantageous for standalone deployments in dedicated electrical rooms or where equipment is not rack-mounted. Common use cases include small to medium data centers, manufacturing facilities with critical automation, financial institutions requiring high availability, and healthcare settings with sensitive diagnostic or life-support systems.
Data Center & Server Room Backup
Provides runtime to gracefully shut down servers and network gear during extended outages, protecting data integrity and hardware.
Industrial & Process Control
Shields PLCs, HMIs, and instrumentation from power anomalies that could disrupt production or cause safety incidents.
Physical Profile
The Galaxy VS 20kVA UPS is housed in a substantial tower enclosure measuring 58.46" high, 20.51" wide, and 33.35" deep, with an approximate weight of 460 kg. This footprint requires adequate floor space and consideration for load-bearing capacity. The design includes a dust filter to maintain internal cleanliness, and the unit emits 61 dB(A) of sound during operation, which is typical for UPS systems of this capacity. Planning for proper ventilation and access for service is recommended during installation.
- Width
- 20.51" (520.95 mm)
- Depth
- 33.35" (847.09 mm)
- Height
- 58.46" (1484.88 mm)
- Weight
- 61 dB(A)
What's in the Box
The package includes all necessary components for deployment and initial operation.
Highlights
- 20 kVA double conversion online UPS for critical power protection
- Tower form factor for standalone floor installation
- 10.5-minute runtime at full load (26.5 minutes at half load)
- Three-phase 208V AC input with wide voltage range compatibility
- Pure sine wave output at 200V/208V/220V AC selectable
- Zero transfer time ensures uninterrupted power
- Remote management via SNMP/Modbus and SNMP/HTTP
- Includes EcoStruxure software for monitoring and control
- Sealed lead-acid battery system with 9000 mAh capacity
- Backed by a 1-year limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | GVSUPS20KB4FS |
| Brand Name | APC by Schneider Electric |
| Product Line | Galaxy VS |
| Product Name | Galaxy VS 20kVA Tower UPS |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Transfer Time | 0 ns |
| Phase | Three Phase |
| Application/Usage | Data Center,Business,Critical System,Commercial,Industrial |
| Power Description | |
| Load Capacity (VA) | 20 kVA |
| Input Voltage | 208 V AC |
| Input Voltage Range | 177 V AC - 239 V AC |
| Output Voltage | 200 V AC,208 V AC,220 V AC |
| Input Frequency | 70 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | Sine Wave |
| Management | |
| Network Management | SNMP/Modbus Remote Monitoring,SNMP/HTTP Remote Monitoring |
| Battery Information | |
| DC System Voltage | 480 V DC |
| Number of Batteries | 2 |
| Battery Characteristics | Sealed |
| Battery Chemistry | Lead Acid |
| Battery Capacity | 9000 mAh |
| Backup/Run Time (Full Load) | 10.50 Minute |
| Backup/Run Time (Half Load) | 26.50 Minute |
| Environmental Conditions | |
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Temperature | 5°F (-15°C) - 104°F (40°C) |
| Maximum Operating Elevation | 3229.33 ft (984300 mm) |
| Maximum Storage Elevation | 9842.52 ft (3000000 mm) |
| Storage Relative Humidity | 0% - 80% |
| Sound Emission (A-Weighted) | 61 dB(A) |
| Thermal Dissipation | 4356 BTU/h |
| Physical Characteristics | |
| Form Factor | Tower |
| Height | 58.46" (1484.88 mm) |
| Width | 20.51" (520.95 mm) |
| Depth | 33.35" (847.09 mm) |
| Weight (Approximate) | 460 kg |
| Miscellaneous | |
| Package Contents | Galaxy VS 20kVA Tower UPS Dust Filter Installation Guide Integrated Network Management Power Modules Start-Up Service |
| Software Included | EcoStruxure |
| Warranty | |
| Limited Warranty | 1 Year |
User Manual
FAQ
What is the power capacity of this APC Galaxy VS UPS?
This UPS has a load capacity of 20 kVA. It is a double conversion online uninterruptible power supply designed to provide clean, stable power and battery backup for critical three-phase loads in data center, commercial, and industrial applications.
How long will this UPS run on battery at full load?
At full load (20 kVA), the battery backup runtime is 10.5 minutes. This provides sufficient time for connected equipment to perform a graceful shutdown or for backup generators to start during a utility power failure.
What input voltage does this UPS require?
The UPS requires a three-phase 208V AC input. It accepts a wide input voltage range from 177V AC to 239V AC, providing compatibility with various utility power conditions and offering protection against voltage sags and surges.
What output voltages does this UPS provide?
The unit provides a pure sine wave output at selectable voltages of 200V AC, 208V AC, or 220V AC. This flexibility allows it to match the specific voltage requirements of the protected three-phase equipment.
Can this UPS be monitored remotely?
Yes, it includes integrated network management supporting both SNMP/Modbus and SNMP/HTTP remote monitoring protocols. This allows IT staff to monitor status, receive alerts, and manage the UPS from a central network management console.
What is included in the box with this UPS?
The package contains the Galaxy VS 20kVA Tower UPS unit, a dust filter, an installation guide, integrated network management power modules, a start-up service, and EcoStruxure software for system monitoring and management.
What power capacity is listed for this UPS?
The listed power specification is 20 kVA, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 208 V AC, which helps position the unit for the right load level and installation role.
