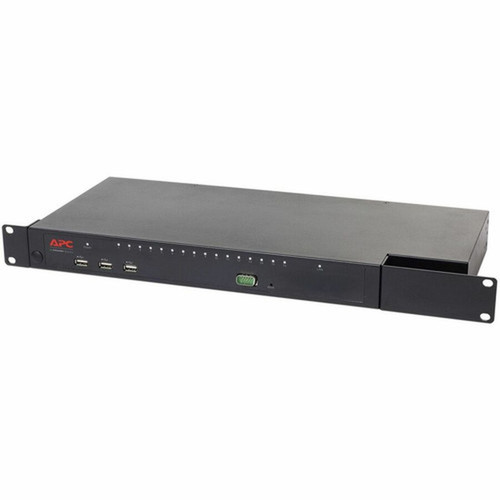

APC by Schneider Electric KVM1116R 16-Port KVM Switchbox - Digital/IP - 1 Remote/1 Local User - Virtual Media - FIPS 140-2 - Rack-Mountable 1U
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This KVM switchbox features a comprehensive port configuration with 20 network (RJ-45) ports, 5 USB ports, 2 PS/2 ports, and 1 VGA port, facilitating connections to various peripherals and display devices. It supports a maximum operating distance of 9842.52 feet (3000000 mm), allowing remote management over extended network spans without signal degradation.
Power input ranges from 120 V AC to 240 V AC with frequencies of 50 Hz or 60 Hz, ensuring compatibility with global power standards. The environmentally friendly design adheres to Restriction of Hazardous Substances (RoHS) regulations, and it includes a 2-year limited warranty for reliable long-term use.
Relevant factors for this section include Number of Computers Supported, Number of Local Users Supported, Number of Remote Users Supported, Network (RJ-45). When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The KVM1116R simplifies server management by consolidating control of multiple computers into a unified interface, reducing clutter and improving workflow efficiency. Its compatibility with diverse operating systems ensures seamless integration into existing IT ecosystems without requiring additional software or hardware modifications.
Flexible Access Management
Simultaneous support for one local and one remote user enables distributed IT teams to manage servers from different locations, enhancing operational flexibility and reducing on-site dependency.
- Remote USB device access
- Virtual media support for file transfers
Secure and Compliant
FIPS 140-2 compliance provides certified security for data transmission, critical in regulated industries like finance, healthcare, and government where data integrity is paramount.
- Encrypted remote sessions
- RoHS environmental compliance
Deployment / Use Cases
Deploy the KVM1116R in environments where centralized control of multiple computers is essential, such as server rooms, network operations centers, or educational labs. Its rack-mountable design makes it easy to integrate into standard server cabinets, while the extended operating distance supports management across large facilities or between buildings.
Use cases include virtualization hosts, backup servers, and development environments where quick switching between systems improves productivity. The virtual media feature is particularly useful for deploying operating system images or transferring configuration files without direct physical connections.
Data Center Server Management
Ideal for data centers managing racks of servers, this switchbox allows administrators to monitor and control 16 systems remotely, facilitating maintenance, updates, and troubleshooting without physical access to each unit.
Remote IT Support and Administration
Support teams can use the remote access capabilities to assist branch offices or distributed locations, performing diagnostics and software installations over long distances up to 9842.52 feet.
Physical Profile
The KVM1116R has a compact 1U rack height, measuring 1.69 inches (43 mm) in height, 16.69 inches (424 mm) in width, and 7.40 inches (188 mm) in depth. This slim profile maximizes rack space efficiency, allowing installation alongside other networking equipment without consuming excessive vertical room.
Weighing approximately 5.71 pounds (2590.01 grams), it is lightweight yet durable, constructed from materials that meet RoHS environmental standards. The rack-mountable form factor includes standard mounting hardware for secure installation in server racks or cabinets, ensuring stability in vibration-prone environments.
- Width
- 16.69" (424 mm)
- Depth
- 7.40" (188 mm)
- Height
- 1U
- Weight
- 5.71 lb (2590.01 g)
Highlights
- Supports 16 computers with 1 local and 1 remote user for flexible access
- Digital/IP connectivity with virtual media enables remote USB device management
- FIPS 140-2 compliant for secure data handling in regulated environments
- Works with Windows, Sun, Unix, and Linux operating systems

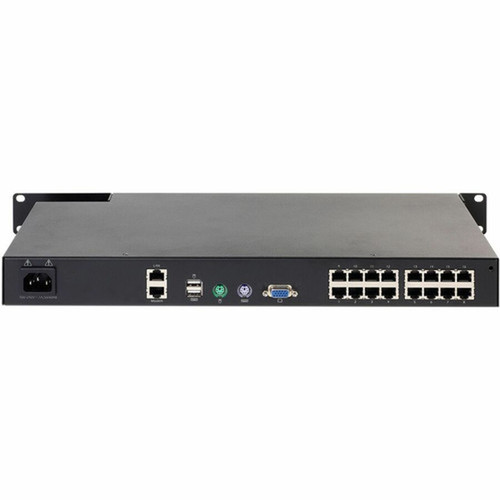

- 20 network (RJ-45) ports, 5 USB ports, 2 PS/2 ports, and 1 VGA port
- Maximum operating distance of 9842.52 feet (3000000 mm)
- Rack-mountable 1U form factor for space-efficient installation
- Input voltage range 120-240 V AC with 50/60 Hz frequency compatibility
- RoHS compliant and environmentally friendly
- 2-year limited warranty for reliable performance
Specifications
| Specifications | |
|---|---|
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | KVM1116R |
| Brand Name | APC by Schneider Electric |
| Product Model | KVM1116R |
| Product Name | KVM1116R KVM Switchbox |
| Product Type | KVM Switchbox |
| Technical Information | |
| Number of Computers Supported | 16 |
| Number of Local Users Supported | 1 |
| Number of Remote Users Supported | 1 |
| Maximum Operating Distance | 9842.52 ft (3000000 mm) |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| PS/2 Port | Yes |
| USB | Yes |
| VGA | Yes |
| Number of Network (RJ-45) Ports | 20 |
| Number of PS/2 Ports | 2 |
| Number of USB Ports | 5 |
| Number of VGA Ports | 1 |
| Power Description | |
| Input Voltage Range | 120 V AC to 240 V AC |
| Frequency | 50 Hz,60 Hz |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Rack Height | 1U |
| Height | 1.69" (43 mm) |
| Width | 16.69" (424 mm) |
| Depth | 7.40" (188 mm) |
| Weight (Approximate) | 5.71 lb (2590.01 g) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Country of Origin | Philippines |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
How many computers can the KVM1116R switchbox support?
The KVM1116R supports up to 16 computers, allowing centralized management of multiple servers or workstations from a single interface. This capacity is ideal for data centers or IT rooms where controlling numerous systems efficiently is crucial.
What types of user access does this KVM switchbox provide?
It provides access for one local user and one remote user simultaneously. This dual-access capability enables on-site administration and remote support, facilitating flexible management across different locations without compromising control.
What is the maximum operating distance for remote access?
The maximum operating distance is 9842.52 feet (3000000 mm). This extended range allows remote management over long network spans, making it suitable for large facilities or distributed IT infrastructures where servers are spread across buildings.
Does the KVM1116R support virtual media?
Yes, it supports virtual media, enabling remote access to USB devices and media for tasks like software installation and file transfers. This feature eliminates the need for physical media connections, streamlining administrative workflows.
What security certifications does this switchbox have?
It complies with FIPS 140-2, a U.S. government standard for cryptographic modules. This certification ensures secure data handling and encrypted communications, making it appropriate for environments with strict security requirements.
Is the KVM1116R rack-mountable?
Yes, it has a rack-mountable form factor with a 1U rack height. Dimensions are 1.69 inches high, 16.69 inches wide, and 7.40 inches deep, allowing easy integration into standard server racks for organized installations.
