APC by Schneider Electric NBPD0165 NetBotz Camera Pod 165 HD Network Camera - 2688 x 1520 Resolution - 2.8 mm Fixed Lens - Top Mount - Black
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This network camera utilizes a CMOS image sensor that captures high-definition video at 2688 x 1520 resolution, providing detailed surveillance imagery for security and environmental monitoring applications. The camera supports both color and monochrome operation, adapting to different lighting conditions while maintaining image clarity.
Network connectivity is established through wired RJ-45 Ethernet, enabling reliable data transmission and remote management capabilities. The camera operates within a temperature range of 32°F to 113°F (0°C to 45°C) and can withstand up to 90% humidity, making it suitable for various indoor environments.
Relevant factors for this section include HD Recording, Image Sensor Type, Color Supported, Field of View. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The NetBotz Camera Pod 165 combines high-resolution imaging with practical monitoring features that enhance surveillance effectiveness in critical infrastructure environments. Its compatibility with NetBotz monitoring appliances creates a cohesive environmental monitoring solution that goes beyond basic security.
High-Definition Surveillance
Delivers 2688 x 1520 resolution video with CMOS sensor technology for clear, detailed monitoring of equipment and spaces.
- Color and monochrome modes
- 100° field of view
- Fixed 2.8 mm lens included
Intelligent Motion Detection
Features configurable motion detection with zone-based alerting capabilities that can be tailored to specific monitoring requirements.
- Customizable alert zones
- Integration with NetBotz appliances
- Remote management support
Robust Environmental Design
Engineered for reliable operation in data center conditions with wide temperature tolerance and compliance certifications.
- 32°F to 113°F operating range
- TAA compliant
- RoHS environmental compliance
Deployment / Use Cases
The NBPD0165 Camera Pod is specifically designed for integration into NetBotz environmental monitoring systems, making it ideal for data center surveillance where both security and equipment monitoring are priorities. Its compact form factor and top-mount design allow for flexible installation in rack environments, overhead mounting, or wall placement.
This camera serves effectively in server rooms, network closets, and secure facilities where continuous monitoring of equipment status, environmental conditions, and physical access is required. The motion detection capabilities enable proactive alerting for unauthorized access or unusual activity within monitored zones.
Data Center Environmental Monitoring
Integrates with NetBotz 750/755 appliances to monitor equipment racks, server status, and environmental conditions while providing visual verification.
- Compatible with NetBotz appliances
- Equipment monitoring
- Environmental verification
Secure Facility Surveillance
Provides high-resolution video surveillance for access points, equipment areas, and secure zones with configurable motion alerts.
- Zone-based motion detection
- Remote management
- Continuous monitoring

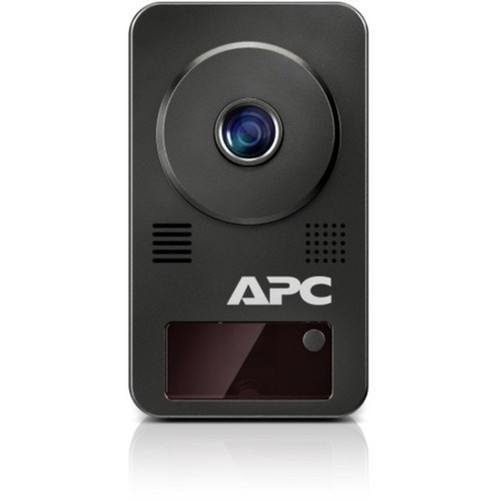

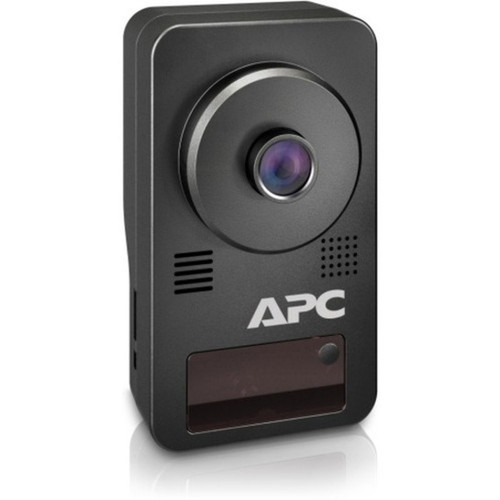

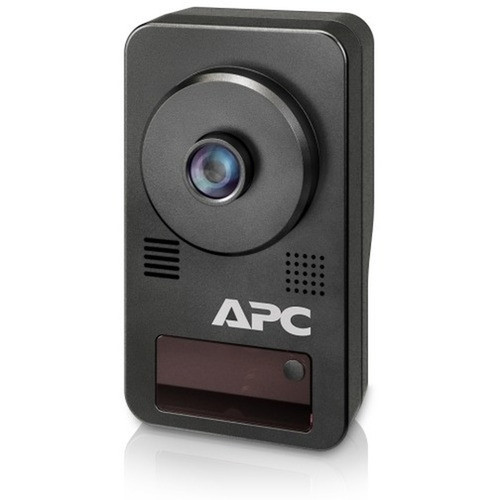

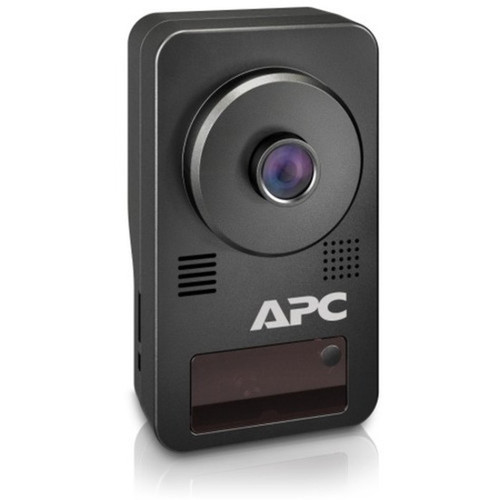

Physical Profile
The camera features a compact black housing measuring 3.80" high, 2.20" wide, and 1.50" deep (96.50 mm x 56 mm x 38 mm), with a lightweight design at approximately 4.16 oz (117.93 g). The top-mount configuration provides flexible installation options for various surveillance applications, while the all-black finish maintains a discreet appearance in professional environments.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 3.80" (96.50 mm), 2.20" (56 mm), 1.50" (38 mm), 4.16 oz (117.93 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 2.20" (56 mm)
- Depth
- 1.50" (38 mm)
- Height
- 3.80" (96.50 mm)
- Weight
- 4.16 oz (117.93 g)
- Length
- 2.8 mm (0.11")
Highlights
- High-definition 2688 x 1520 resolution video capture
- CMOS image sensor with color and monochrome modes
- 100° field of view with fixed 2.8 mm lens
- Motion detection with customizable alert zones
- Compatible with NetBotz 750 and 755 monitoring appliances

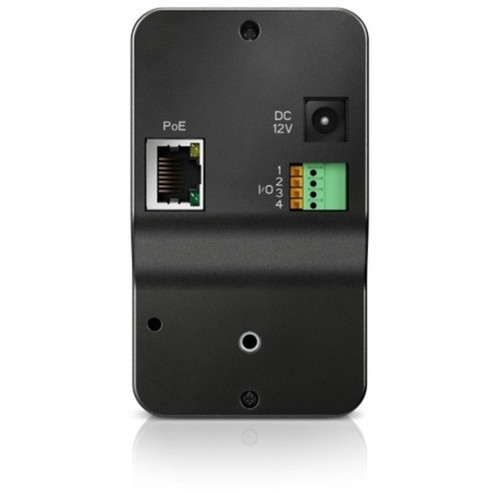

- Wired connectivity with RJ-45 Ethernet interface
- Remote management capabilities
- Top-mount design for flexible installation
- Wide operating temperature range (32°F to 113°F)
- TAA compliant with 2-year limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | NBPD0165 |
| Brand Name | APC by Schneider Electric |
| Product Line | NetBotz |
| Product Model | Camera Pod 165 |
| Product Name | NetBotz Camera Pod 165 |
| Packaged Quantity | 1 Each |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color,Monochrome |
| Field of View | 100° |
| Video | |
| Maximum Video Resolution | 2688 x 1520 |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 2.8 mm (0.11") |
| Lens Included | Yes |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Mount Type | Top Mount |
| Height | 3.80" (96.50 mm) |
| Width | 2.20" (56 mm) |
| Depth | 1.50" (38 mm) |
| Weight (Approximate) | 4.16 oz (117.93 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 113°F (45°C) |
| Maximum Operating Humidity | 90% |
| Miscellaneous | |
| Features | Motion Detection |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What resolution does this NetBotz camera support?
The APC NetBotz Camera Pod 165 captures high-definition video at 2688 x 1520 resolution. This resolution provides detailed imagery for monitoring equipment status, environmental conditions, and security surveillance in data centers and secure facilities. The CMOS image sensor ensures clear video quality in both color and monochrome modes.
What is the field of view for this camera?
This camera features a 100° field of view with a fixed 2.8 mm lens that provides consistent coverage without adjustment requirements. The wide viewing angle makes it suitable for monitoring equipment racks, server aisles, and entry points where comprehensive coverage is important for environmental monitoring and security applications.
How does the motion detection feature work?
The camera includes configurable motion detection that allows administrators to define specific zones within the surveillance area for alerting. When integrated with NetBotz 750 or 755 appliances, this enables customized notifications for unusual activity in monitored spaces, supporting proactive response to potential security or environmental issues in data center environments.
What NetBotz appliances is this camera compatible with?
This Camera Pod 165 is designed for integration with NetBotz 750 and 755 environmental monitoring appliances. These systems provide centralized management, alerting, and reporting capabilities that complement the camera's surveillance functions, creating a comprehensive monitoring solution for data center infrastructure and secure facilities.
What are the physical dimensions and mounting options?
The camera measures 3.80" high x 2.20" wide x 1.50" deep (96.50 mm x 56 mm x 38 mm) and weighs approximately 4.16 oz (117.93 g). It features a top-mount design that supports various installation configurations, including rack mounting, overhead placement, or wall mounting in data centers and equipment rooms where space optimization is important.
What environmental conditions can this camera operate in?
This network camera operates reliably in temperatures ranging from 32°F to 113°F (0°C to 45°C) with humidity up to 90%. These specifications make it suitable for typical data center and indoor equipment room environments. The camera is TAA compliant and meets RoHS environmental standards, with a 2-year limited warranty for added reliability assurance.
