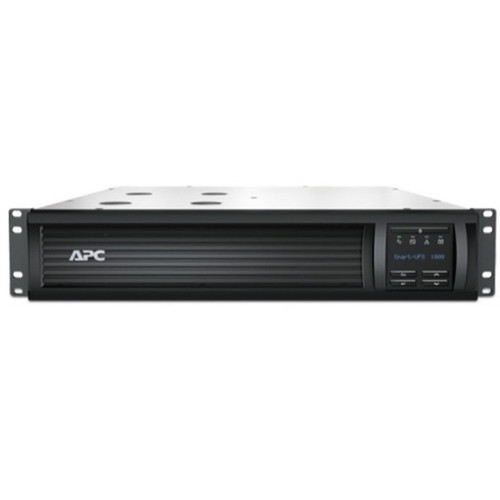

APC by Schneider Electric SMT1000RMI2U Smart-UPS - 1000VA/700W Rack-mountable UPS - 2U - 230V - 6 Outlets - 9 Min Full Load Runtime
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This Smart-UPS model employs a line-interactive topology that automatically corrects under-voltage and over-voltage conditions without switching to battery power, extending battery life and reducing wear. The 1 kVA (700 watt) capacity supports equipment such as servers, network switches, storage arrays, and telecommunications gear that require stable, uninterrupted power.
The internal lead-acid battery is hot-swappable, allowing replacement without powering down connected equipment—a critical feature for maintaining uptime in production environments. Management interfaces include both serial (RS-232) and USB ports for integration with power management software, enabling remote monitoring, graceful shutdowns, and runtime estimation.
This section brings together practical product details such as Plug/Connector Type, Receptacle Detail, Number of Battery & Surge Outlets, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The SMT1000RMI2U combines robust power protection with rack-optimized design, offering several advantages for IT infrastructure deployment.
Rack-Ready Design
The 2U form factor includes integrated rack-mounting rails for straightforward installation in standard 19-inch server racks, conserving space while providing centralized power protection.
- 2U rack height
- Integrated mounting rails
- Black finish for professional appearance
Extended Runtime Flexibility
With 9 minutes of runtime at full load and 31 minutes at half load, this UPS provides sufficient time for orderly shutdowns or continued operation during short outages.
- 9-minute full load backup
- 31-minute half load backup
- 3-hour typical recharge time
Comprehensive Connectivity
Six IEC 320-C13 outlets (plus two IEC jumper outlets) accommodate multiple devices, while serial and USB ports enable advanced power management and monitoring capabilities.
- 6 protected outlets
- Serial (RS-232) interface
- USB connectivity
Deployment / Use Cases
This rack-mountable UPS is ideal for environments where space is at a premium and power reliability is non-negotiable. Its 230V configuration and pure sine wave output make it particularly suitable for server racks housing enterprise hardware that demands clean, stable power.
Common deployment scenarios include protecting 1U or 2U servers, network switches, routers, and network-attached storage devices in small to medium server rooms. The unit's management capabilities allow integration with IT monitoring systems to automate shutdown procedures during extended outages, safeguarding data integrity and hardware.
Server Room Protection
Provides battery backup for critical servers and networking equipment, ensuring continuous operation during brief power interruptions and allowing time for graceful shutdowns during longer outages.
Network Closet Deployment
Protects switches, routers, and other network infrastructure in telecommunications closets where space is limited but uptime requirements are high.
Physical Profile
The UPS features a compact black chassis measuring 3.35" (85.09 mm) in height, 18.90" (480.06 mm) in width, and 18.70" (474.98 mm) in depth, occupying exactly 2U of vertical rack space. Weighing 62.13 lb (28.18 kg), it is designed for stable mounting in standard 19-inch racks. The front panel includes status indicators and management ports, while the rear houses the IEC 320-C14 input connector and six IEC 320-C13 output receptacles.
- Width
- 18.90" (480.06 mm)
- Depth
- 18.70" (474.98 mm)
- Height
- 3.35" (85.09 mm)
- Weight
- 62.13 lb (28181.69 g)
What's in the Box
The package includes all necessary components for immediate deployment and management.
Highlights
- 1000VA/700W line-interactive UPS with pure sine wave output
- 2U rack-mountable form factor for standard 19-inch server racks
- 9-minute runtime at full load, 31 minutes at half load
- 230V input and output voltage configuration
- Six battery and surge-protected IEC 320-C13 outlets
- Hot-swappable lead-acid battery for maintenance without downtime
- Serial (RS-232) and USB ports for power management
- 3-hour typical battery recharge time
- RoHS compliant and environmentally friendly design
- 3-year repair/replace warranty (2 years for battery)
Specifications
| Specifications | |
|---|---|
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SMT1000RMI2U |
| Brand Name | APC by Schneider Electric |
| Product Line | Smart-UPS |
| Product Model | SMT1000RMI2U |
| Product Name | Smart-UPS 1000VA Rack-mountable UPS |
| Product Type | Line-interactive UPS |
| Technical Information | |
| Plug/Connector Type | IEC 320-C14 |
| Receptacle Detail | 2 x IEC Jumper,4 x IEC 320-C13 |
| Number of Battery & Surge Outlets | 6 |
| Power Description | |
| Load Capacity (VA) | 1 kVA |
| Load Capacity (Watt) | 700 W |
| Input Voltage | 230 V |
| Output Voltage | 230 V AC |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 459 J |
| Interfaces/Ports | |
| Serial Port | Yes |
| USB | Yes |
| Battery Information | |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 9 Minute |
| Backup/Run Time (Half Load) | 31 Minute |
| Hot Swappable | Yes |
| Typical Battery Recharge Time | 3 Hour |
| Physical Characteristics | |
| Product Color | Black |
| Height | 3.35" (85.09 mm) |
| Width | 18.90" (480.06 mm) |
| Depth | 18.70" (474.98 mm) |
| Rack Height | 2U |
| Form Factor | Rack-mountable |
| Weight (Approximate) | 62.13 lb (28181.69 g) |
| Miscellaneous | |
| Package Contents | Package Contents USB cable Documentation CD Installation guide Rack Mounting support rails Smart UPS signalling RS-232 cable |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | 3 years repair or replace (excluding battery) and 2 years for battery |
User Manual
FAQ
What is the power capacity of this UPS?
This APC Smart-UPS has a 1000VA (1 kVA) apparent power rating and a 700W real power rating. This capacity supports typical server, networking, and storage equipment loads while providing battery backup during power interruptions.
How long will this UPS run on battery power?
At full load (700W), the UPS provides approximately 9 minutes of runtime. At half load (350W), runtime extends to about 31 minutes. These times allow for orderly shutdowns or continued operation during short outages.
Is this UPS rack-mountable?
Yes, this UPS is designed for rack mounting with a 2U form factor. It includes integrated rack-mounting support rails for installation in standard 19-inch server racks, making it ideal for data center and server room environments.
What voltage does this UPS support?
This unit is configured for 230V input and output operation. It accepts 230V AC input power and delivers regulated 230V AC output, making it suitable for regions and equipment using this voltage standard.
How many devices can I connect to this UPS?
The UPS provides six battery and surge-protected IEC 320-C13 outlets, plus two IEC jumper outlets. This allows connection of multiple servers, switches, or other equipment while ensuring all connected devices receive battery backup and surge protection.
What management interfaces are available?
The UPS includes both serial (RS-232) and USB ports for management connectivity. These interfaces enable integration with power management software for remote monitoring, runtime estimation, and graceful shutdown of connected equipment during extended power outages.
What power capacity is listed for this UPS?
The listed power specification is 1 kVA, which helps position the unit for the right load level and installation role.
How many outlets are available?
The product includes 6, which helps buyers understand how many connected devices it can support in its intended deployment.
