APC by Schneider Electric SMT1500RMI2U Smart-UPS - 1500VA/1kW Rack-mountable UPS - 2U - 230V - 6 Outlets - 7 Min Full Load Runtime
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This Smart-UPS model operates with 1.50 kVA and 1 kW load capacities, handling typical server and networking equipment loads. The 230V input accepts standard power sources, while the 230V AC output delivers pure sine wave power to ensure compatibility with active PFC power supplies found in modern servers and storage devices.
Battery performance includes 7 minutes of runtime at full load and 26 minutes at half load, with a 3-hour typical recharge time. The unit includes surge protection rated at 459 joules and features spill-proof, maintenance-free battery technology for safe, reliable operation.
This section brings together practical product details such as Plug/Connector Type, Receptacle Detail, Number of Battery & Surge Outlets, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The SMT1500RMI2U combines robust power protection with rack-optimized design for IT environments where space and reliability are critical. Its line-interactive topology provides automatic voltage regulation to correct sags and surges without switching to battery, extending battery life during common power fluctuations.
Rack-Optimized Design
The 2U form factor fits standard 19-inch racks with included mounting rails, maximizing space efficiency in server cabinets while providing front-accessible controls and status indicators.
- 2U rack height
- Includes mounting rails
- Front-panel display
Management & Monitoring
USB and network interfaces enable local and remote management through APC software, allowing configuration, monitoring, and graceful shutdown of connected equipment during extended outages.
- USB connectivity
- Network management port
- Remote monitoring capable
Battery Reliability
Hot-swappable battery design allows replacement without powering down connected equipment, ensuring continuous uptime while maintaining power protection during maintenance.
- Hot-swappable design
- Maintenance-free
- Spill-proof construction
Deployment / Use Cases
This UPS is ideal for protecting rack-mounted servers, network switches, storage arrays, and telecommunications equipment in small to medium business environments. The 1kW capacity supports typical server configurations with sufficient runtime for orderly shutdown or continued operation during brief outages.
Common deployment scenarios include branch office server rooms, network operation centers, and edge computing locations where reliable power is essential but dedicated UPS rooms are not available. The rack-mountable design integrates seamlessly with existing IT infrastructure while providing centralized power management.
Server Room Protection
Protects 1-2 rack servers and associated networking equipment with sufficient runtime for graceful shutdown during power failures.
Network Infrastructure
Provides clean power to switches, routers, and firewalls ensuring continuous network availability during voltage fluctuations and brief outages.
Physical Profile
The black chassis measures 3.39" (86.11 mm) in height, 17.01" (432.05 mm) in width, and 17.99" (456.95 mm) in depth, occupying 2U of standard 19-inch rack space. At approximately 63.14 lb (28.64 kg), the unit includes integrated handles and front-accessible controls for convenient installation and operation in rack environments.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 3.39" (86.11 mm), 17.01" (432.05 mm), 17.99" (456.95 mm), 63.14 lb (28639.82 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 17.01" (432.05 mm)
- Depth
- 17.99" (456.95 mm)
- Height
- 3.39" (86.11 mm)
- Weight
- 63.14 lb (28639.82 g)
What's in the Box
The package includes all necessary components for installation and operation:
Highlights
- 1500VA/1kW capacity for server and network equipment protection
- 2U rack-mountable form factor with included mounting rails
- 7-minute runtime at full load, 26 minutes at half load
- 230V input and output with pure sine wave power

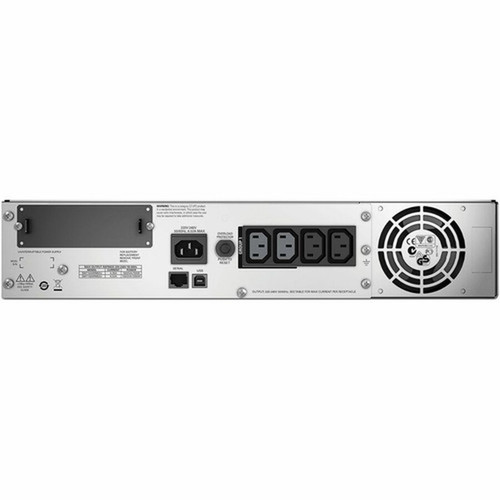

- Six IEC outlets (4 x C13, 2 x jumper) for equipment connectivity
- Hot-swappable, maintenance-free lead-acid battery
- USB and network management interfaces for remote monitoring
- 3-hour typical battery recharge time
- Line-interactive topology with automatic voltage regulation
- RoHS compliant and environmentally friendly design
Specifications
| Specifications | |
|---|---|
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SMT1500RMI2U |
| Brand Name | APC by Schneider Electric |
| Product Line | Smart-UPS |
| Product Model | SMT1500RMI2U |
| Product Name | Smart-UPS 1500VA Rack-mountable UPS |
| Packaged Quantity | 1 Each |
| Product Type | Line-interactive UPS |
| Technical Information | |
| Plug/Connector Type | IEC 320-C14 |
| Receptacle Detail | 4 x IEC 320-C13,2 x IEC Jumper |
| Number of Battery & Surge Outlets | 6 |
| Power Description | |
| Load Capacity (VA) | 1.50 kVA |
| Load Capacity (Watt) | 1 kW |
| Input Voltage | 230 V |
| Output Voltage | 230 V AC |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 459 J |
| Interfaces/Ports | |
| USB | Yes |
| Network (RJ-45) | Yes |
| Battery Information | |
| Battery Characteristics | Spill-proof, Maintenance-free |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 7 Minute |
| Backup/Run Time (Half Load) | 26 Minute |
| Hot Swappable | Yes |
| Typical Battery Recharge Time | 3 Hour |
| Physical Characteristics | |
| Product Color | Black |
| Height | 3.39" (86.11 mm) |
| Width | 17.01" (432.05 mm) |
| Depth | 17.99" (456.95 mm) |
| Rack Height | 2U |
| Form Factor | Rack-mountable |
| Weight (Approximate) | 63.14 lb (28639.82 g) |
| Miscellaneous | |
| Package Contents | USB cable Documentation CD Installation guide Rack Mounting support rails Smart UPS signalling RS-232 cable |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | 3 years repair or replace (excluding battery) and 2 years for battery |
User Manual
FAQ
What is the power capacity of this UPS?
The APC Smart-UPS SMT1500RMI2U provides 1500VA (1.50 kVA) and 1000W (1 kW) of power capacity. This capacity supports typical server configurations, network switches, and storage devices, delivering reliable backup power during outages while maintaining sine wave output for compatibility with active PFC power supplies.
How long will this UPS run on battery power?
At full load (1000W), the UPS provides approximately 7 minutes of runtime. At half load (500W), runtime extends to approximately 26 minutes. These times allow for orderly shutdown of connected equipment or continued operation during brief power interruptions, with actual runtime varying based on connected load and battery condition.
What type of outlets does this UPS have?
This unit features six IEC outlets: four IEC 320-C13 outlets and two IEC jumper outlets. The input connector is an IEC 320-C14 plug. These outlets support standard server and networking equipment power cords, providing both battery backup and surge protection for connected devices.
Is this UPS rack-mountable?
Yes, the SMT1500RMI2U is designed for rack mounting with a 2U form factor. The package includes rack mounting support rails for installation in standard 19-inch server racks. The compact 2U height maximizes space efficiency in rack environments while providing full UPS functionality.
What management interfaces are available?
This UPS includes both USB and network (RJ-45) management interfaces. These connections enable monitoring, configuration, and control through APC power management software, allowing local and remote management of UPS status, battery health, and graceful shutdown of connected equipment.
What is the warranty coverage?
The UPS comes with a 3-year repair or replace warranty (excluding the battery) and a 2-year warranty for the battery. This coverage protects against defects in materials and workmanship, with the battery warranty specifically covering the hot-swappable, maintenance-free lead-acid battery unit included with the product.
What power capacity is listed for this UPS?
The listed power specification is 1.50 kVA, which helps position the unit for the right load level and installation role.
How many outlets are available?
The product includes 6, which helps buyers understand how many connected devices it can support in its intended deployment.
