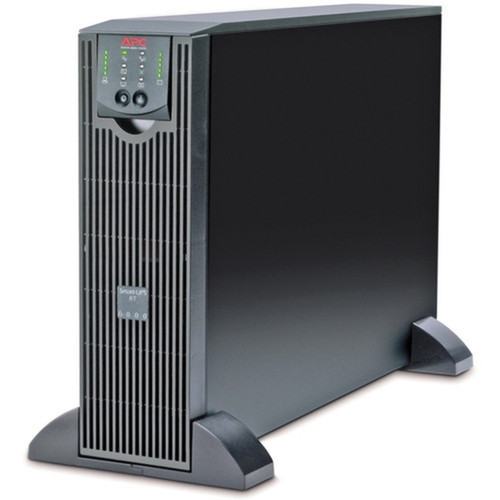

APC by Schneider Electric SURT6000XLI-CC Smart-UPS RT 6000VA 230V Harsh Environment Tower - 14 Outlets - Double Conversion Online UPS
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This Smart-UPS RT model employs double conversion online topology, which continuously conditions incoming power to deliver pure sine wave output. The 6 kVA capacity supports substantial server and networking loads, while the 230 V AC output aligns with standard commercial and industrial power systems.
Management capabilities include DB-9 RS-232 and SmartSlot interfaces for integration with network management systems, allowing remote monitoring and control. The lead-acid battery chemistry ensures reliable backup performance, and the unit is RoHS compliant for environmental safety.
This section brings together practical product details such as Receptacle Type, Receptacle Detail, Number of Battery & Surge Outlets, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The Smart-UPS RT 6000VA Harsh Environment Tower combines high-capacity power protection with ruggedized construction for uninterrupted operation in challenging settings.
Harsh Environment Design
Conformally coated electronics resist dust and humidity, extending UPS lifespan and reliability in non-climate-controlled areas.
- Protects against corrosive elements
- Reduces maintenance needs
Comprehensive Power Distribution
Fourteen hard-wire outlets allow direct connection of multiple servers, switches, and networking devices without additional PDUs.
- Eliminates need for external power strips
- Simplifies cable management
Advanced Management
Integrated DB-9 RS-232 and SmartSlot support enable remote monitoring, configuration, and shutdown procedures via network management software.
- Facilitates proactive maintenance
- Enables automated responses to power events
Deployment / Use Cases
This UPS is purpose-built for environments where power quality and availability directly impact operational continuity. Its 6 kVA capacity and harsh environment rating make it ideal for mid-sized server rooms, network closets, and industrial control systems.
Typical deployments include supporting rack-mounted servers, network switches, storage arrays, and telecommunications equipment in manufacturing facilities, remote offices, or data centers with less stringent environmental controls. The tower design offers flexibility for floor placement where rack space is limited.
Server Room Backup
Provides clean sine wave power to multiple servers and networking gear, protecting against surges, sags, and outages that could cause data loss or hardware damage.
Industrial Networking
The conformal coating safeguards internal components in dusty or humid industrial settings, ensuring reliable operation for PLCs, HMIs, and network infrastructure.
Physical Profile
The tower form factor measures 17" high by 5.11" wide by 25.98" deep, with a substantial weight of 120.26 pounds. Its compact width allows placement in tight spaces, while the black finish blends with standard IT equipment. The design prioritizes stability and serviceability, with accessible components for battery replacement and maintenance.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 17" (431.80 mm), 5.11" (129.79 mm), 25.98" (659.89 mm), 120.26 lb (54549.018416 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 5.11" (129.79 mm)
- Depth
- 25.98" (659.89 mm)
- Height
- 17" (431.80 mm)
- Weight
- 120.26 lb (54549.018416 g)
What's in the Box
The package includes all necessary components for immediate deployment and management of the UPS system.
Highlights
- 6 kVA double conversion online UPS with pure sine wave output
- 14 hard-wire 3-wire receptacles for direct device connections
- Conformally coated boards resist dust and humidity in harsh environments
- 230 V AC output voltage for commercial/industrial power systems
- DB-9 RS-232 and SmartSlot interfaces for network management
- Tower form factor with black finish for flexible placement
- Lead-acid battery chemistry for reliable backup performance
- RoHS compliant and environmentally friendly design
- Includes Web/SNMP management card for remote monitoring
- Backed by a 2-year limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SURT6000XLI-CC |
| Brand Name | APC by Schneider Electric |
| Product Line | Smart-UPS On-Line |
| Product Series | RT |
| Product Name | Smart-UPS RT 6000VA 230V Harsh Environment |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Receptacle Type | Hard Wire 3-wire |
| Receptacle Detail | 14 |
| Number of Battery & Surge Outlets | 14 |
| Application/Usage | Server,Network |
| Power Description | |
| Load Capacity (VA) | 6 kVA |
| Output Voltage | 230 V AC |
| Waveform Type | Sine Wave |
| Management | |
| Network Management | DB-9 RS-232,SmartSlot |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Battery Information | |
| Battery Chemistry | Lead Acid |
| Physical Characteristics | |
| Product Color | Black |
| Height | 17" (431.80 mm) |
| Width | 5.11" (129.79 mm) |
| Depth | 25.98" (659.89 mm) |
| Form Factor | Tower |
| Weight (Approximate) | 120.26 lb (54549.018416 g) |
| Miscellaneous | |
| Package Contents | Smart-UPS RT 6000VA 230V Harsh Environment CD with software Smart UPS signalling RS-232 cable User manual Web/SNMP management card |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What is the power capacity of this UPS?
This APC Smart-UPS RT provides 6 kVA (6000 VA) of power capacity. This rating indicates the maximum apparent power the UPS can deliver to connected equipment, supporting substantial server and networking loads at 230 V AC output voltage.
How many devices can I connect to this UPS?
The UPS features 14 hard-wire 3-wire receptacles, allowing direct connection of up to 14 devices without additional power distribution units. This includes servers, network switches, storage systems, and other critical infrastructure requiring clean power backup.
What does 'harsh environment' mean for this UPS?
The harsh environment designation refers to conformally coated circuit boards that protect internal electronics from dust, humidity, and corrosive elements. This makes the UPS suitable for industrial settings, non-climate-controlled server rooms, or locations where environmental conditions could degrade standard UPS components.
What management options are available?
Management capabilities include a DB-9 RS-232 serial port and a SmartSlot for expansion cards. The included Web/SNMP management card enables remote monitoring, configuration, and shutdown procedures via network connections, facilitating proactive maintenance and automated responses to power events.
Is this a tower or rack-mount UPS?
This UPS has a tower form factor, designed for floor placement rather than rack installation. Its dimensions are 17" H x 5.11" W x 25.98" D, with a weight of 120.26 pounds, offering stability and serviceability in environments where rack space is limited or unavailable.
What type of power output does it provide?
The UPS delivers pure sine wave output at 230 V AC through double conversion online topology. This ensures clean, stable power that matches utility quality, protecting sensitive electronics from waveform distortion that can occur with simulated sine wave or line-interactive UPS models.
What power capacity is listed for this UPS?
The listed power specification is 6 kVA, which helps position the unit for the right load level and installation role.
How many outlets are available?
The product includes 14, which helps buyers understand how many connected devices it can support in its intended deployment.
