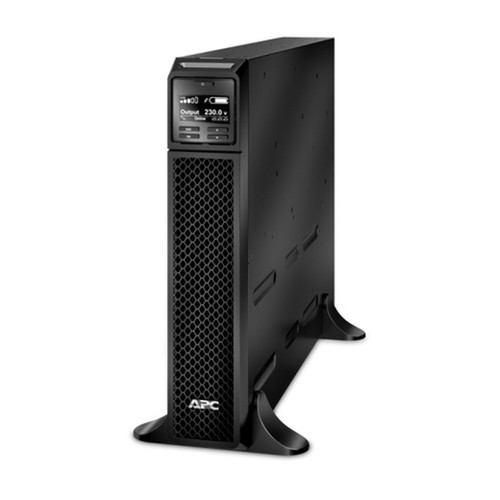

APC by Schneider Electric SRT3000XLI Smart-UPS SRT 3000VA 230V Tower UPS - 3 kVA / 2. 70 kW - 22 Outlets - 4 Min Runtime
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This Smart-UPS SRT model employs double-conversion online topology, which continuously converts incoming AC power to DC and back to clean AC output. This design isolates connected equipment from all common power problems, including blackouts, brownouts, surges, and frequency variations. The sine wave output ensures compatibility with sensitive electronic devices that require stable, distortion-free power.
The unit's lead-acid battery system delivers a 4-minute runtime at full load, providing sufficient time for graceful system shutdowns or transition to backup generators. A typical recharge time of 3 hours minimizes downtime between extended outage events. Built-in management capabilities via USB and optional network interfaces allow for remote monitoring, configuration, and automated shutdown procedures.
This section brings together practical product details such as Number of Battery & Surge Outlets, Load Capacity (VA), Load Capacity (Watt), Output Voltage, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The Smart-UPS SRT 3000VA combines high power capacity with advanced protection features to safeguard critical infrastructure. Its double-conversion design provides the highest level of power conditioning, making it ideal for environments where power quality directly impacts operational reliability and equipment lifespan.
Zero-Transfer Time Protection
Double-conversion technology ensures continuous power conditioning with no break in output during utility failures, eliminating transfer delays that can disrupt sensitive equipment.
- Isolates loads from raw utility power
- Maintains voltage and frequency stability
- Prevents data corruption and hardware stress
Scalable Runtime Management
The 4-minute full-load runtime provides a critical window for automated shutdowns or generator start-up, while external battery packs can extend backup duration for longer outage protection.
- Supports external battery expansion
- Enables runtime customization
- Integrates with power management software
Deployment / Use Cases
The tower form factor and 3 kVA capacity make this Smart-UPS SRT suitable for protecting small to medium server clusters, network infrastructure, and telecommunications equipment in commercial and industrial settings. Its 22 outlets accommodate multiple devices, reducing the need for additional power distribution units.
Common deployment scenarios include branch office server rooms, retail point-of-sale systems, healthcare diagnostic equipment, and manufacturing control systems where power interruptions could result in data loss, operational downtime, or equipment damage. The unit's 230 V AC output aligns with European, Asian, and other regional power standards, supporting global deployment flexibility.
Server Room Protection
Provides backup power for 1-2 rack servers, associated storage, and network switches during utility outages, enabling orderly shutdowns or continuous operation through brief interruptions.
Network Infrastructure Support
Powers core switches, routers, and firewalls to maintain network connectivity and security services during power events, ensuring business communication continuity.
Physical Profile
The black tower enclosure measures 17.01" (432 mm) in height, 3.35" (85 mm) in width, and 25" (635 mm) in depth, with an approximate weight of 69 lb (31.3 kg). This compact footprint allows placement under desks, on shelves, or in equipment corners where space is limited. Removable support feet provide stability on various surfaces, and the design facilitates service access for battery replacement and maintenance.
- Width
- 3.35" (85 mm)
- Depth
- 25" (635 mm)
- Height
- 17.01" (432 mm)
- Weight
- 69 lb (31300 g)
What's in the Box
The package includes all necessary components for immediate deployment and management of the UPS system.
Highlights
- 3 kVA / 2.70 kW load capacity supports critical IT equipment during power disturbances
- 22 battery and surge-protected outlets for connecting multiple servers and network devices
- 4-minute full-load runtime provides time for graceful shutdowns or backup transition
- Double-conversion online topology delivers clean sine wave output with zero transfer time
- 230 V AC output voltage aligns with commercial power standards in many regions
- Tower form factor offers flexible placement in server rooms and office environments
- 3-hour typical battery recharge minimizes downtime between extended outages
- Includes management software and USB cable for monitoring and configuration
- 3-year limited warranty from APC by Schneider Electric
- Environmentally friendly design with lead-acid battery chemistry
Specifications
| Specifications | |
|---|---|
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SRT3000XLI |
| Brand Name | APC by Schneider Electric |
| Product Line | Smart-UPS |
| Product Series | SRT |
| Product Name | Smart-UPS SRT 3000VA 230V |
| Packaged Quantity | 1 Each |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Number of Battery & Surge Outlets | 22 |
| Power Description | |
| Load Capacity (VA) | 3 kVA |
| Load Capacity (Watt) | 2.70 kW |
| Output Voltage | 230 V AC |
| Waveform Type | Sine Wave |
| Battery Information | |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 4 Minute |
| Typical Battery Recharge Time | 3 Hour |
| Physical Characteristics | |
| Product Color | Black |
| Height | 17.01" (432 mm) |
| Width | 3.35" (85 mm) |
| Depth | 25" (635 mm) |
| Form Factor | Tower |
| Weight (Approximate) | 69 lb (31300 g) |
| Miscellaneous | |
| Package Contents | Smart-UPS SRT 3000VA 230V CD with software Country-specific detachable power cord Documentation CD Installation guide Removable support feet USB cable Warranty card |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
FAQ
What is the power capacity of this Smart-UPS SRT unit?
This APC Smart-UPS SRT provides 3 kVA (3000 VA) and 2.70 kW of load capacity, suitable for protecting small to medium server setups, network equipment, and other critical devices. The 230 V AC output voltage matches standard commercial power in many regions, ensuring compatibility with enterprise hardware.
How long will this UPS run at full load during a power outage?
At full load, the Smart-UPS SRT 3000VA delivers 4 minutes of backup runtime. This duration allows sufficient time for connected systems to perform automated shutdowns or for backup generators to engage, preventing data loss and hardware damage during utility failures.
How many devices can I connect to this UPS?
The unit includes 22 battery and surge-protected outlets, providing ample connectivity for multiple servers, storage arrays, switches, routers, and other IT equipment. This outlet count reduces the need for additional power strips or distribution units in typical deployment scenarios.
What type of power topology does this UPS use?
This Smart-UPS SRT employs double-conversion online topology, which continuously converts incoming AC power to DC and back to clean AC output. This design provides the highest level of protection by isolating connected equipment from all common power problems, including blackouts, surges, and frequency variations.
What is the recharge time for the batteries after an outage?
The typical battery recharge time is 3 hours under normal conditions. This relatively fast recharge minimizes downtime between extended power events, ensuring the UPS is ready to provide protection again quickly after the utility power is restored.
What management features are included with this UPS?
The Smart-UPS SRT includes a USB cable and management software CD for local monitoring and configuration. These tools enable runtime calibration, shutdown scheduling, and event logging. For network management, optional SNMP or network management card accessories can be added for remote monitoring and control capabilities.
What power capacity is listed for this UPS?
The listed power specification is 3 kVA, which helps position the unit for the right load level and installation role.
How many outlets are available?
The product includes 22, which helps buyers understand how many connected devices it can support in its intended deployment.
