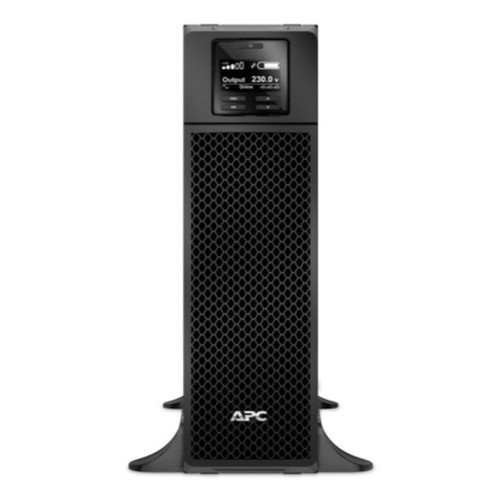

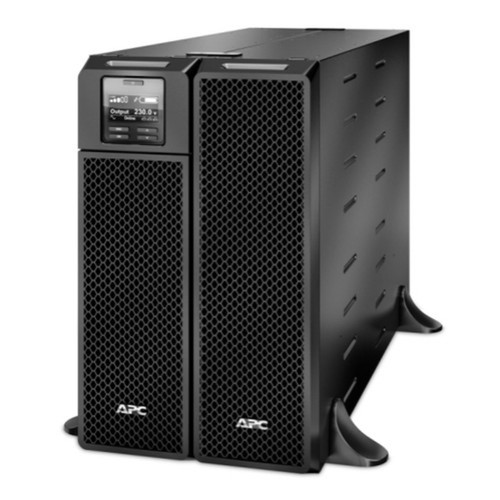

APC by Schneider Electric SRT5KXLI Smart-UPS SRT 5000VA 230V Rack-mountable Double Conversion Online UPS - 4. 50 kW - 12 Outlets - 3-Hour Recharge
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This Smart-UPS SRT model operates on 230 V AC input and output, providing 5 kVA (4500 watts) of load capacity. It uses a single maintenance-free, sealed, spill-proof lead-acid battery that is hot-swappable for uninterrupted operation during replacement.
The UPS delivers up to 4 minutes of runtime at full load and extends to 12 minutes at half load, giving administrators adequate time to initiate graceful shutdowns or transition to backup generators. A 3-hour typical recharge time minimizes downtime between extended outages.
This section brings together practical product details such as Number of Battery & Surge Outlets, Load Capacity (VA), Load Capacity (Watt), Output Voltage, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The Smart-UPS SRT 5000VA combines high power density with advanced management features for reliable backup in rack deployments.
Pure Sine Wave Output
Delivers clean, stable sine wave power compatible with sensitive active PFC power supplies found in modern servers and networking equipment, preventing equipment damage or shutdowns.
- Ensures compatibility with active PFC loads
- Reduces risk of data corruption
- Supports high-efficiency power supplies
Comprehensive Management
Includes USB and network (RJ-45) ports for integration with PowerChute management software, enabling remote monitoring, shutdown sequencing, and environmental monitoring via the optional temperature probe.
- Web/SNMP management card included
- LED status indicators for at-a-glance health
- Battery failure alarm for proactive maintenance
Rack-Optimized Design
Engineered for standard 19-inch racks with a compact 5.12-inch width, saving valuable rack space while supporting heavy loads up to 54.55 kg.
- Removable support feet for tower conversion
- Black finish for professional appearance
- Optimized airflow for thermal management
Deployment / Use Cases
This 5000VA UPS is designed for environments where power quality and continuity are critical to business operations.
In data centers, it provides backup for rack-mounted servers, switches, and storage arrays, ensuring applications remain online during utility failures. For industrial settings, the double-conversion technology protects against voltage fluctuations and harmonics that can disrupt sensitive control systems.
This section brings together practical product details such as Number of Battery & Surge Outlets, Load Capacity (VA), Load Capacity (Watt), Output Voltage, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Server Room Protection
Supports multiple 2U-4U servers and associated networking equipment with 12 outlets, providing enough runtime for automated shutdown or generator start-up.
Network Closet Backup
Ideal for telecom rooms housing switches, routers, and VoIP systems, where clean power prevents network downtime and data loss.
Physical Profile
The black rack-mountable enclosure measures 17.01 inches in height, 5.12 inches in width, and 28.31 inches in depth, fitting standard 19-inch rack cabinets. At 54.55 kg, it is built with robust construction for stable rack mounting. Removable support feet allow flexible deployment as a tower unit when rack space is unavailable.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 17.01" (432 mm), 5.12" (130 mm), 28.31" (719 mm), 55 dB(A). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 5.12" (130 mm)
- Depth
- 28.31" (719 mm)
- Height
- 17.01" (432 mm)
- Weight
- 55 dB(A)
What's in the Box
The package includes all necessary components for installation and management.
Highlights
- 5 kVA / 4.50 kW double conversion online UPS for maximum power protection
- 12 battery and surge-protected outlets support multiple rack-mounted devices
- Up to 4 minutes runtime at full load, 12 minutes at half load
- Hot-swappable, maintenance-free lead-acid battery for uninterrupted operation
- Pure sine wave output ensures compatibility with active PFC equipment
- USB and network (RJ-45) ports for remote management and monitoring
- Rack-mountable design with removable feet for tower conversion
- 3-year limited warranty for long-term reliability
Specifications
| Specifications | |
|---|---|
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SRT5KXLI |
| Brand Name | APC by Schneider Electric |
| Product Line | Smart-UPS |
| Product Series | SRT |
| Product Name | Smart-UPS SRT 5000VA 230V |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Number of Battery & Surge Outlets | 12 |
| Power Description | |
| Load Capacity (VA) | 5 kVA |
| Load Capacity (Watt) | 4.50 kW |
| Output Voltage | 230 V AC |
| Waveform Type | Sine Wave |
| Circuit Breaker | Yes |
| Management | |
| Alarm | Battery Failure |
| Controls/Indicators | |
| Status Indicators | LED Indicators |
| Interfaces/Ports | |
| USB | Yes |
| Network (RJ-45) | Yes |
| Battery Information | |
| Number of Batteries | 1 |
| Battery Characteristics | Maintenance-free, Sealed, Spill-proof |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 4 Minute |
| Backup/Run Time (Half Load) | 12 Minute |
| Hot Swappable | Yes |
| Typical Battery Recharge Time | 3 Hour |
| Environmental Conditions | |
| Maximum Operating Temperature | 104°F (40°C) |
| Sound Emission (A-Weighted) | 55 dB(A) |
| Thermal Dissipation | 931 BTU/h |
| Physical Characteristics | |
| Product Color | Black |
| Height | 17.01" (432 mm) |
| Width | 5.12" (130 mm) |
| Depth | 28.31" (719 mm) |
| Form Factor | Rack-mountable |
| Weight (Approximate) | 54.55 kg |
| Miscellaneous | |
| Package Contents | Smart-UPS SRT 5000VA 230V CD with software Communication cable Documentation CD Installation guide Removable support feet Temperature probe USB cable Warranty card Web/SNMP management card |
| Environmentally Friendly | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
FAQ
What is the power capacity of this UPS?
This APC Smart-UPS SRT provides 5 kVA (5000 VA) and 4.50 kW (4500 watts) of load capacity, making it suitable for protecting multiple servers, network switches, and storage devices in a rack environment.
How long does the battery last during a power outage?
At full load, the UPS delivers up to 4 minutes of runtime, allowing for graceful shutdowns. At half load, runtime extends to approximately 12 minutes, providing additional time for backup systems to engage.
Is this UPS rack-mountable or tower-style?
It is designed as a rack-mountable unit for standard 19-inch cabinets, but includes removable support feet that allow conversion to a tower configuration if rack space is not available.
What type of power output does this UPS provide?
It delivers pure sine wave output at 230 V AC, which is essential for compatibility with modern server power supplies and sensitive electronic equipment, preventing damage or operational issues.
How many devices can I connect to this UPS?
The unit features 12 battery and surge-protected outlets, enabling you to connect multiple pieces of critical equipment such as servers, routers, switches, and storage arrays simultaneously.
What management features are included?
It includes USB and network (RJ-45) ports for integration with APC PowerChute software, a Web/SNMP management card for remote monitoring, LED status indicators, and support for an optional temperature probe for environmental monitoring.
What power capacity is listed for this UPS?
The listed power specification is 5 kVA, which helps position the unit for the right load level and installation role.
How many outlets are available?
The product includes 12, which helps buyers understand how many connected devices it can support in its intended deployment.
