APC by Schneider Electric SRT5KRMXLIM Smart-UPS SRT 5000VA RM 230V Marine - 5 kVA Rack-Mountable Double Conversion Online UPS with 12 Outlets
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This double conversion online UPS continuously converts incoming AC power to DC and back to AC, isolating connected equipment from all power anomalies. It accepts a wide input voltage range of 160-275 V AC and delivers stable 230/240 V AC sine wave output, ensuring compatibility with standard rack-mounted servers, networking gear, and storage systems. The 5 kVA capacity translates to 4.50 kW of real power handling, sufficient for medium-density rack deployments.
Network management is enabled via an RJ-45 port, allowing for remote monitoring and control of power status, battery health, and environmental conditions. The lead-acid battery provides 4 minutes of runtime at full load, giving administrators adequate time to initiate graceful shutdowns or switch to backup generators. The unit's online topology guarantees zero transfer time during power events, eliminating any risk of interruption to critical loads.
Key Product Advantages
The Smart-UPS SRT 5000VA RM 230V Marine combines high power density with robust construction for environments where reliability cannot be compromised. Its double conversion technology provides the highest level of power conditioning, protecting against sags, surges, harmonics, and frequency variations that can damage equipment or cause data corruption. The marine-grade components resist corrosion and humidity, extending service life in non-climate-controlled spaces.
Zero Transfer Time Protection
Online double conversion ensures connected equipment never experiences a break in power, even during severe utility fluctuations or outages.
- Eliminates transfer spikes
- Conditions power continuously
- Suitable for sensitive electronics
Hot-Swappable Battery Design
Replace batteries without powering down the UPS or connected loads, maintaining uptime during routine maintenance.
- Reduces maintenance windows
- Extends system availability
- Simplifies battery replacement
Deployment / Use Cases
This UPS is purpose-built for rack-mounted IT infrastructure in data centers, server rooms, and network closets. Its 5 kVA capacity supports a typical rack with multiple servers, switches, and storage arrays, providing runtime for orderly shutdowns or bridging to generator power. The 12 outlets accommodate a mix of PDU-connected equipment and directly plugged devices, reducing the need for additional power strips.
Industrial and marine applications benefit from the ruggedized design, which withstands vibration, moisture, and temperature extremes. Telecommunications installations, broadcast facilities, and healthcare IT environments rely on this model's pure sine wave output to keep sensitive digital equipment operating smoothly. The included temperature probe allows for environmental monitoring, alerting administrators to cooling failures before they impact system reliability.
Data Center Rack Power
Delivers clean, uninterrupted power to a full rack of servers and networking equipment, with runtime to support automated shutdown procedures.
- Supports medium-density racks
- Integrates with rack PDUs
- Enables graceful shutdowns
Industrial IT Environments
Marine-grade construction ensures reliable operation in manufacturing plants, shipping facilities, and other harsh conditions where standard UPS units may fail.
- Resists corrosion
- Handles vibration
- Operates in wide temperature ranges
Physical Profile

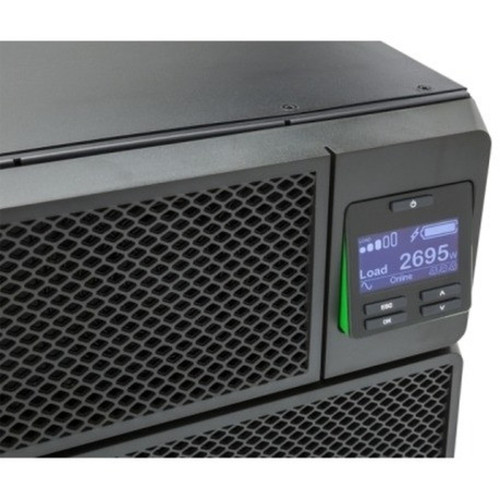

The black, rack-mountable chassis occupies 5U of vertical rack space, with a depth of 28.31 inches to accommodate standard server racks. Its weight of 54.43 kg requires proper rack mounting and consideration of floor loading in high-density deployments. The form factor is optimized for airflow and serviceability, with front-accessible controls and status indicators for easy monitoring in crowded data center aisles.
- Width
- 17.01" (432 mm)
- Depth
- 28.31" (719 mm)
- Height
- 5.12" (130 mm)
- Weight
- 54.43 kg
What's in the Box
This UPS ships with all necessary hardware for immediate rack installation and operation.
Highlights
- 5 kVA / 4.50 kW double conversion online UPS for rack-mounted IT equipment
- 12 battery and surge-protected outlets consolidate power distribution
- 4-minute full-load runtime provides time for graceful shutdowns or generator transfer
- Wide input voltage range (160-275 V AC) handles unstable utility power
- Pure sine wave output protects sensitive servers and networking gear
- Hot-swappable battery design enables maintenance without downtime
- Rack-mountable 5U form factor fits standard server racks
- Marine-grade ruggedized construction for demanding environments
- Network management via RJ-45 for remote monitoring and control
- 3-year limited warranty with environmentally friendly design
Specifications
| Specifications | |
|---|---|
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SRT5KRMXLIM |
| Brand Name | APC by Schneider Electric |
| Product Line | Smart-UPS SRT |
| Product Name | Smart-UPS SRT 5000VA RM 230V Marine |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Number of Battery & Surge Outlets | 12 |
| Power Description | |
| Load Capacity (VA) | 5 kVA |
| Load Capacity (Watt) | 4.50 kW |
| Input Voltage Range | 160 V AC - 275 V AC |
| Output Voltage | 230 V AC,240 V AC |
| Waveform Type | Sine Wave |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Battery Information | |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 4 Minute |
| Hot Swappable | Yes |
| Physical Characteristics | |
| Product Color | Black |
| Height | 5.12" (130 mm) |
| Width | 17.01" (432 mm) |
| Depth | 28.31" (719 mm) |
| Form Factor | Rack-mountable |
| Weight (Approximate) | 54.43 kg |
| Miscellaneous | |
| Package Contents | Smart-UPS SRT 5000VA RM 230V Marine Documentation CD Installation guide Rack mounting brackets Rack mounting hardware Rack mounting support rails Temperature probe Warranty card |
| Environmentally Friendly | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the power capacity of this APC Smart-UPS SRT?
This UPS provides 5 kVA (5000 VA) of apparent power and 4.50 kW (4500 watts) of real power capacity. This is sufficient to support a medium-density server rack with multiple devices, including servers, switches, and storage arrays, during power outages or fluctuations.
How long will this UPS run at full load during a power outage?
At full load (4.50 kW), the battery backup runtime is 4 minutes. This provides adequate time for connected systems to perform graceful shutdowns or for backup generators to start and stabilize, preventing data loss and hardware damage from abrupt power loss.
What type of power output does this UPS deliver?
The unit delivers pure sine wave output at 230 V AC or 240 V AC. This matches the quality of utility power and is essential for sensitive electronic equipment like servers, networking gear, and medical devices, ensuring they operate without disruption or risk of damage from distorted waveforms.
How many devices can I connect to this UPS?
There are 12 battery and surge-protected outlets available. This allows you to power multiple rack-mounted devices directly or through PDUs, reducing the need for additional power strips and consolidating power distribution for better management and efficiency in rack environments.
Is this UPS rack-mountable and what are its dimensions?
Yes, it is designed for rack mounting and occupies 5U of vertical space. The dimensions are 5.12 inches (130 mm) in height, 17.01 inches (432 mm) in width, and 28.31 inches (719 mm) in depth, with a weight of 54.43 kg. It includes all necessary mounting brackets, hardware, and support rails for installation in standard server racks.
What warranty coverage does this APC Smart-UPS SRT include?
The UPS comes with a 3-year limited warranty from APC by Schneider Electric. This covers defects in materials and workmanship, providing peace of mind for critical power protection investments. The unit is also environmentally friendly, designed with sustainable practices in mind.
What power capacity is listed for this UPS?
The listed power specification is 5 kVA, which helps position the unit for the right load level and installation role.
How many outlets are available?
The product includes 12, which helps buyers understand how many connected devices it can support in its intended deployment.
