APC by Schneider Electric SMT3000RM2UC APC Smart-UPS 3000VA 2U Rackmount UPS - 120V - 8 Outlets - SmartConnect - AVR - Pure Sine Wave
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Product Overview
The APC Smart-UPS SMT3000RM2UC is a 3000VA line-interactive UPS engineered for rackmount deployment in server rooms, network closets, and data center environments. This 2U unit delivers reliable battery backup and power conditioning for critical IT infrastructure, supporting loads up to 2700 watts with pure sine wave output. Its design focuses on maintaining uptime for servers, storage arrays, and networking equipment during power disturbances.
Featuring Automatic Voltage Regulation (AVR), this UPS corrects minor utility voltage fluctuations without switching to battery power, extending battery life and ensuring consistent power quality. The integrated LCD provides clear status information for at-a-glance monitoring, while SmartConnect enables cloud-based remote management without additional network management cards. This combination of features makes it a robust solution for protecting sensitive electronics from power anomalies.

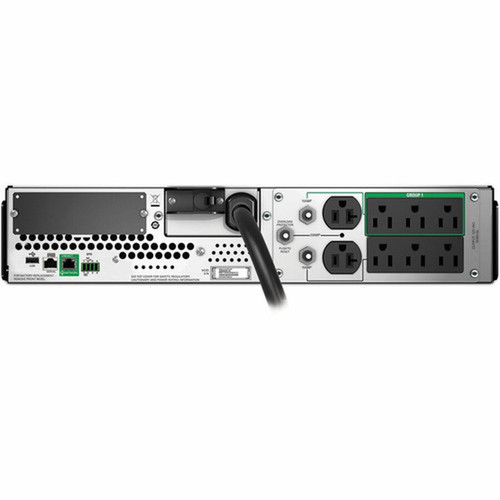

With eight NEMA outlets—six 5-15R and two 5-20R—the unit offers flexible connectivity for various devices, all backed by surge protection. The hot-swappable battery design allows for maintenance without downtime, and the included PowerChute Serial Edition software supports graceful shutdowns during extended outages. These elements work together to provide comprehensive power protection in demanding IT environments.
Technical Overview
This Smart-UPS employs line-interactive topology with a transfer time of 10 milliseconds, ensuring seamless transition to battery power during outages. The input voltage range of 75-154V AC allows operation in varying power conditions, while the output delivers stable 120V AC pure sine wave power compatible with sensitive server and networking equipment. This technical foundation ensures reliable performance in environments with fluctuating utility power.
The unit features eight NEMA outlets with surge protection: six 5-15R and two 5-20R receptacles, providing flexible device connectivity for mixed equipment loads. Battery management includes hot-swappable capability for maintenance without downtime, with a typical recharge time of three hours. The surge energy rating of 459 joules offers additional protection against power spikes, safeguarding connected devices from transient voltage events.
Network management is handled through the built-in SmartConnect Ethernet port, enabling cloud-based monitoring without additional hardware. This allows IT administrators to receive alerts, check status, and manage the UPS remotely via web interface or mobile app. Combined with the Energy Star certification and RoHS compliance, these technical specifications make the UPS a sustainable and manageable choice for modern data centers.
Key Product Advantages
Automatic Voltage Regulation
AVR technology corrects brownouts and overvoltages within ±25% of nominal voltage, reducing battery usage and extending runtime during common power fluctuations.
- Extends battery life
- Reduces unnecessary battery cycles
- Maintains consistent output voltage
Pure Sine Wave Output
Delivers clean, utility-grade power compatible with active PFC power supplies found in modern servers, storage arrays, and networking equipment.
- Compatible with sensitive electronics
- Prevents equipment damage
- Ensures optimal performance
Deployment / Use Cases
The SMT3000RM2UC is engineered for rack environments requiring reliable power protection for critical infrastructure. Its 2U form factor optimizes rack space while delivering substantial power capacity for mixed equipment loads.
This UPS supports graceful shutdown of connected equipment through included PowerChute Serial Edition software, which works with both serial and USB connections. The software enables automated shutdown sequences for servers and network devices during extended outages, protecting data and preventing hardware damage.
Server Room Protection
Ideal for protecting rack-mounted servers, storage arrays, and network switches in data center and server room environments.
Network Closet Deployment
Provides backup power for networking equipment, VoIP systems, and security appliances in distributed network locations.
Retail & POS Systems
Protects point-of-sale systems, inventory management servers, and retail networking infrastructure from power disruptions.
Physical Profile

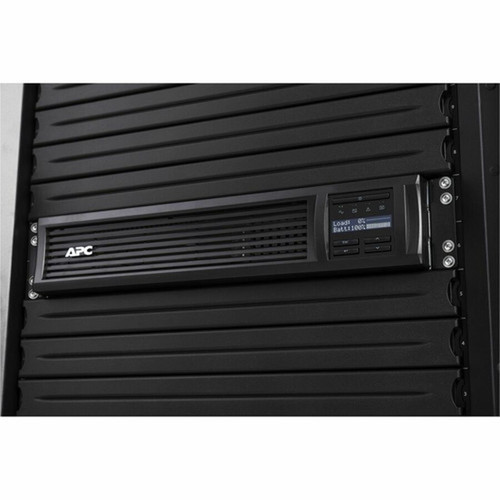

Designed for standard 19-inch rack installation, this UPS occupies 2U of vertical space with dimensions of 3.39" H × 17.01" W × 26.89" D. The black finish matches typical rack equipment aesthetics, while integrated mounting rails and hardware simplify installation.
Weighing 97.62 pounds, the unit requires proper rack support and consideration of weight distribution in multi-unit installations. The front-panel LCD provides at-a-glance status information, and the 8-foot power cord offers flexible placement within rack configurations.
- Width
- 17.01" (432 mm)
- Depth
- 26.89" (683 mm)
- Height
- 3.39" (86 mm)
- Weight
- 97.62 lb (44279.69 g)
- Length
- 8 ft (2.44 m)
What's in the Box
The package includes all necessary components for immediate deployment and management of the UPS system.
Highlights
- 3000VA/2700W line-interactive UPS with pure sine wave output
- 2U rackmount form factor for standard 19-inch rack installation
- Eight NEMA outlets: six 5-15R and two 5-20R with surge protection
- SmartConnect enables cloud-based remote monitoring without additional cards
- Automatic Voltage Regulation corrects brownouts and overvoltages
- Hot-swappable batteries for maintenance without downtime
- Includes PowerChute Serial Edition for graceful shutdown
- LCD display for clear status and configuration
- 3-year UPS warranty with 2-year battery warranty
- Energy Star certified and RoHS compliant
Specifications
| Specifications | |
|---|---|
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SMT3000RM2UC |
| Brand Name | APC by Schneider Electric |
| Product Line | Smart-UPS |
| Product Name | Smart-UPS 3000VA LCD RM 2U 120V with SmartConnect |
| Product Type | Line-interactive UPS |
| Technical Information | |
| Plug/Connector Type | NEMA L5-30P |
| Receptacle Type | NEMA L5-30P |
| Receptacle Detail | 2 x NEMA 5-20R,6 x NEMA 5-15R |
| Number of Battery & Surge Outlets | 8 |
| Cord Length | 8 ft (2.44 m) |
| Transfer Time | 10 ms |
| Phase | Single Phase |
| Power Description | |
| Load Capacity (VA) | 2.88 kVA |
| Load Capacity (Watt) | 2.70 kW |
| Input Voltage | 120 V |
| Input Voltage Range | 75 V AC - 154 V AC |
| Output Voltage | 120 V AC |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 459 J |
| Management | |
| Network Management | SmartConnect |
| Battery Information | |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 2.80 Minute |
| Hot Swappable | Yes |
| Typical Battery Recharge Time | 3 Hour |
| Physical Characteristics | |
| Product Color | Black |
| Height | 3.39" (86 mm) |
| Width | 17.01" (432 mm) |
| Depth | 26.89" (683 mm) |
| Rack Height | 2U |
| Form Factor | Rack-mountable |
| Weight (Approximate) | 97.62 lb (44279.69 g) |
| Miscellaneous | |
| Package Contents | Smart-UPS 3000VA LCD RM 2U 120V with SmartConnect Documentation CD Installation guide Rack mounting hardware Rack mounting support rails Smart UPS signalling RS-232 cable USB cable |
| Software Included | Powerchute Serial Edition |
| Energy Star | Yes |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | UPS: 36 month(s)|Battery: 24 month(s) |
User Manual
FAQ
What is the power capacity of this UPS?
This APC Smart-UPS delivers 2.88 kVA (2880VA) and 2.70 kW (2700W) of power capacity, making it suitable for protecting multiple servers, storage arrays, or networking equipment in rack environments.
What runtime can I expect at full load?
At full 2700W load, the UPS provides approximately 2.8 minutes of battery runtime. This allows sufficient time for connected equipment to perform graceful shutdowns via the included PowerChute software during power outages.
How many outlets does this UPS have?
The unit features eight NEMA outlets: six 5-15R receptacles and two 5-20R receptacles. This configuration supports mixed equipment loads with both standard and higher-current devices in server room and network closet deployments.
What voltage specifications does this UPS support?
This is a 120V single-phase UPS with an input voltage range of 75-154V AC and stable 120V AC output. The wide input range allows operation in areas with fluctuating utility power, while the pure sine wave output ensures compatibility with sensitive electronic equipment.
Is this UPS designed for rack or tower installation?
This is a rackmount UPS designed for standard 19-inch racks with a 2U form factor. It includes mounting rails and hardware for straightforward installation in server racks, network cabinets, or data center environments.
What remote management capabilities does this UPS offer?
The built-in SmartConnect Ethernet port enables cloud-based remote monitoring without additional management cards. IT administrators can receive alerts, check status, and manage the UPS remotely through web interfaces or mobile apps for distributed infrastructure management.
