APC by Schneider Electric SMTL3KRM2UCLNC APC Smart-UPS 3kVA Line Interactive UPS - 2.88kVA/2700W - Lithium-ion - 2U Rackmount - 120V - 1x L5-30R + 6 x
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
Engineered for single-phase 120V/110V AC operation, this Smart-UPS model maintains 60 Hz output frequency with a fast 10 ms transfer time during power events. The sine wave output ensures compatibility with active PFC power supplies found in modern servers and networking gear.

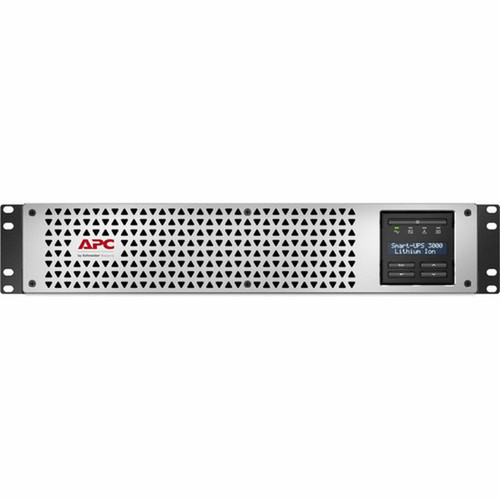

Management features include an LCD/LED display for local status monitoring, USB and EPO ports for connectivity and emergency shutdown, and LED indicators for on-line, on-battery, replace battery, and overload conditions. The unit operates efficiently with a 0.9 input power factor and 348 BTU/h thermal dissipation.
Relevant factors for this section include AVR, Plug/Connector Type, Receptacle Type, Load Capacity (VA). When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Lithium-Ion Battery Longevity, SmartConnect Remote Management, Comprehensive Power Protection.
Lithium-Ion Battery Longevity
The integrated lithium-ion battery provides extended service life with minimal maintenance requirements compared to traditional lead-acid batteries, reducing total cost of ownership over the UPS lifespan.
SmartConnect Remote Management
Preinstalled network management card with included 1-year subscription enables cloud-based monitoring, graceful shutdown of physical and virtual servers, and remote power management without additional hardware.
Comprehensive Power Protection
Automatic voltage regulation corrects brownouts without battery drain, while pure sine wave output and surge protection safeguard sensitive electronics from power quality issues.
Deployment / Use Cases
This 3kVA rackmount UPS is ideally suited for protecting critical infrastructure in space-constrained environments where reliable power is essential. Its 2U form factor makes it perfect for standard server racks in network closets, IDF/MDF rooms, and edge computing locations.

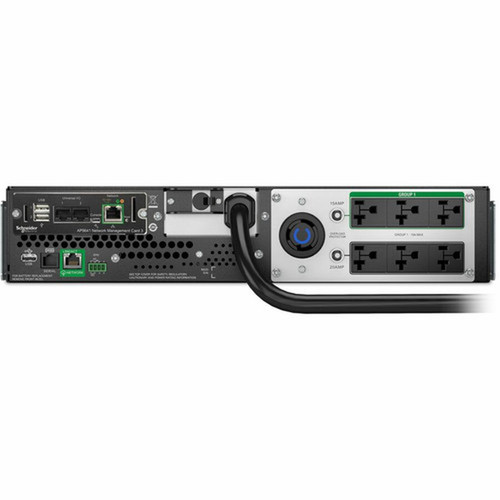

Typical applications include supporting small server clusters, virtualization hosts, hyperconverged infrastructure (HCI), network switches, routers, POS systems, and office equipment. The mixed outlet configuration allows simultaneous protection of high-power equipment via the L5-30R receptacle and standard devices through the six 5-20R outlets.
Edge Computing & Network Closets
Provides backup power for distributed IT infrastructure in remote locations with limited space, ensuring continuous operation of network equipment and edge servers.
Small Server Rooms & Back Offices
Protects physical servers, virtual machines, and critical business systems with sufficient runtime for graceful shutdown or continued operation during brief outages.
Physical Profile

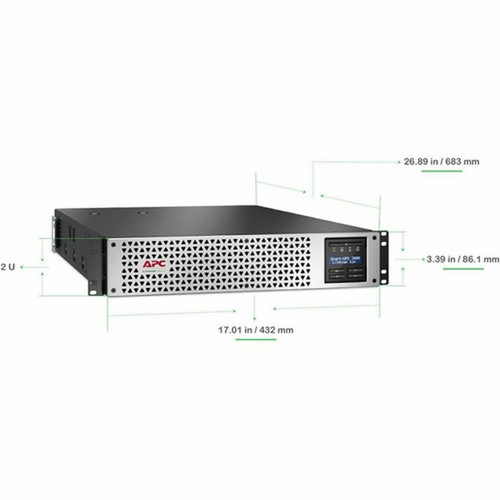

Designed for standard 19-inch server racks, this UPS occupies 2U of vertical space with dimensions of 3.39" (86 mm) height, 17.01" (432 mm) width, and 26.89" (683 mm) depth. The black and silver finish matches typical data center aesthetics, while the 75.44 lb weight requires proper rack mounting with the included support rails and brackets.
- Width
- 17.01" (432 mm)
- Depth
- 26.89" (683 mm)
- Height
- 3.39" (86 mm)
- Weight
- 75.44 lb (34219.01 g)
- Length
- 8 ft (2.44 m)
What's in the Box
The package includes all necessary components for immediate rack installation and operation.
Highlights
- 2.88kVA/2700W line-interactive UPS with pure sine wave output
- 2U rackmount form factor for standard server cabinet installation
- Lithium-ion battery for extended service life and reduced maintenance
- SmartConnect network management card preinstalled with 1-year subscription
- Automatic voltage regulation (AVR) corrects brownouts without battery drain
- 7-outlet configuration: 1x NEMA L5-30R + 6x NEMA 5-20R
- Supports graceful shutdown of physical servers and virtual machines
- 5-year warranty covering both UPS and battery
- Energy Star certified for energy efficiency
- RoHS compliant and environmentally friendly
Specifications
| Specifications | |
|---|---|
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SMTL3KRM2UCLNC |
| Brand Name | APC by Schneider Electric |
| Product Line | Smart-UPS |
| Product Name | Smart-UPS 3KVA Rack-mountable UPS |
| Packaged Quantity | 1 |
| Product Type | Line-interactive UPS |
| Technical Information | |
| AVR | Yes |
| Plug/Connector Type | NEMA L5-30P |
| Receptacle Type | NEMA L5-30P |
| Receptacle Detail | 1 x NEMA L5-30R,6 x NEMA 5-20R |
| Cord Length | 8 ft (2.44 m) |
| Transfer Time | 10 ms |
| Phase | Single Phase |
| Application/Usage | Edge Computing,Office,Network Equipment,IT,Business,Critical System,Server,Virtual Machine,Hyperconverged Infrastructure (HCI),POS,Router,Switch,Hub |
| Power Description | |
| Load Capacity (VA) | 2.88 kVA |
| Load Capacity (Watt) | 2.70 kW |
| Input Voltage | 120 V AC,110 V AC |
| Output Voltage | 120 V AC,110 V AC |
| Input Frequency | 60 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 459 J |
| Input Power Factor | 0.9 |
| Display & Graphics | |
| Display | LCD/LED |
| Management | |
| Alarm | On Battery,Low Battery,Overload |
| Controls/Indicators | |
| Status Indicators | LED Indicators: On Line On Battery Replace Battery Overload |
| Interfaces/Ports | |
| USB | Yes |
| EPO Port | Yes |
| Battery Information | |
| Number of Batteries | 1 |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Battery Energy | 1209.6 kJ |
| Backup/Run Time (Full Load) | 5.30 Minute |
| Backup/Run Time (Half Load) | 10.23 Minute |
| Typical Battery Recharge Time | 2 Hour |
| Environmental Conditions | |
| Maximum Operating Elevation | 10000 ft (3048000 mm) |
| Maximum Storage Elevation | 50000 ft (15240000 mm) |
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
| Storage Relative Humidity | 95% |
| Maximum Operating Temperature | 104°F (40°C) |
| Sound Emission | 55 dB |
| Thermal Dissipation | 348 BTU/h |
| Physical Characteristics | |
| Product Color | Black,Silver |
| Height | 3.39" (86 mm) |
| Width | 17.01" (432 mm) |
| Depth | 26.89" (683 mm) |
| Rack Height | 2U |
| Form Factor | Rack-mountable |
| Weight (Approximate) | 75.44 lb (34219.01 g) |
| Miscellaneous | |
| Package Contents | Smart-UPS 3KVA Rack-mountable UPS Rack Mounting Brackets Rack Mounting Support Rails Ethernet Patch Cable Washer Screw Temperature Sensor |
| Energy Star | Yes |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
What is the power capacity of this APC Smart-UPS?
This Smart-UPS model provides 2.88 kVA (2880 VA) and 2.70 kW (2700 watts) of power capacity. It can support equipment loads up to these ratings while delivering pure sine wave output for compatibility with sensitive electronics and active PFC power supplies.
How long will this UPS provide backup power during an outage?
At full load (2700 watts), the UPS provides approximately 5.3 minutes of runtime. At half load (1350 watts), runtime extends to about 10.23 minutes. These times allow for graceful shutdown of protected equipment or continued operation during brief power interruptions.
What type of battery does this UPS use and how long does it take to recharge?
This unit features a lithium-ion (Li-Ion) battery that offers longer service life and reduced maintenance compared to traditional lead-acid batteries. The typical recharge time to 90% capacity is 2 hours after a complete discharge, minimizing downtime between power events.
What outlets are available on this rackmount UPS?
The outlet configuration includes one NEMA L5-30R receptacle for high-power equipment (up to 30 amps) and six NEMA 5-20R receptacles for standard devices (up to 20 amps each). This mixed configuration supports diverse equipment loads in server rooms and network closets.
What management features are included with this Smart-UPS?
Management features include a preinstalled SmartConnect network management card with 1-year subscription for cloud-based monitoring, USB connectivity for local management, EPO port for emergency shutdown, LCD/LED display for local status, and LED indicators for operational states. These enable remote monitoring and graceful shutdown of protected systems.
What are the physical dimensions and installation requirements?
The UPS measures 3.39" (86 mm) high, 17.01" (432 mm) wide, and 26.89" (683 mm) deep, occupying 2U of space in a standard 19-inch server rack. It weighs 75.44 lb and includes all necessary mounting brackets and support rails for secure installation. The unit operates at up to 104°F (40°C) with 55 dB sound emission.
