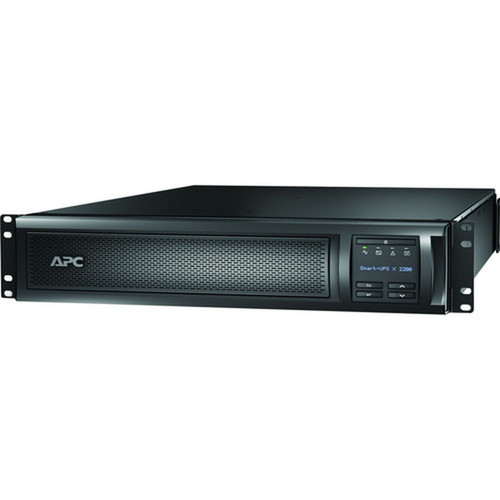

APC by Schneider Electric SMX2200RMLV2U APC Smart-UPS X 2200VA Line Interactive UPS - 2U Rack/Tower Convertible - 120V - 8 Outlets - Pure Sine Wave
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Product Overview
The APC Smart-UPS X SMX2200RMLV2U is a 2200VA line-interactive UPS engineered for reliable power protection in server rooms, network closets, and commercial IT environments. This 2U rack/tower convertible unit delivers pure sine wave output, ensuring compatibility with sensitive electronic equipment and active PFC power supplies. With 1980W of real power capacity and eight NEMA outlets, it provides substantial backup power for critical infrastructure.
The hot-swappable, maintenance-free battery supports continuous operation during battery replacement, while the included PowerChute Serial Edition software enables automated graceful shutdowns and remote management. The unit's line-interactive design incorporates Automatic Voltage Regulation (AVR) to correct minor voltage fluctuations without draining the battery, extending runtime and reducing wear. This UPS is built for environments where power quality and uptime are non-negotiable requirements.
Featuring both serial and USB connectivity, the Smart-UPS X integrates seamlessly with network management systems. The 540-joule surge energy rating provides robust protection against voltage spikes and transients, while the user-selectable low voltage setting (100V-127V) allows optimization for specific electrical conditions. This combination of features makes it a comprehensive power protection solution for modern IT infrastructure.
Technical Overview
This Smart-UPS X model operates on 120V AC input and output, with a transfer time of 4 milliseconds to ensure seamless transition to battery power during outages. The pure sine wave output maintains clean power quality essential for servers, storage arrays, and networking gear. The unit delivers 2.20 kVA (2200VA) of apparent power capacity and 1.98 kW (1980W) of real power capacity, providing substantial load support for connected equipment.
The battery system utilizes maintenance-free, sealed, spill-proof lead-acid chemistry with hot-swappable capability. At half load, the UPS provides up to 25 minutes of runtime, while full load operation delivers 10 minutes of backup power. Typical battery recharge time is 3 hours, ensuring rapid recovery after discharge events. The unit supports connection of up to 10 external SMX120RMBP2U battery packs for extended runtime requirements.
Connectivity includes both serial and USB ports for management integration, while power distribution features eight outlets: two NEMA 5-20R and six NEMA 5-15R receptacles. The input cord measures 8 feet (2.44 meters) with an NEMA L5-30P connector. These technical specifications combine to create a UPS that balances power capacity, runtime performance, and management capabilities in a single 2U form factor.
Key Product Advantages
The Smart-UPS X series combines high power density with flexible deployment options, making it a versatile choice for growing IT infrastructures. Its convertible rack/tower design allows installation in standard 19-inch racks or as a standalone tower, adapting to space constraints and future expansion needs.
Extended Runtime Capability
Supports connection of up to 10 external battery packs (SMX120RMBP2U) for significantly extended backup duration, ideal for prolonged outages or high-availability applications.
- Scalable runtime
- Modular expansion
- High-availability support
Intelligent Power Management
PowerChute Serial Edition software provides comprehensive monitoring, graceful shutdown, and environmental reporting capabilities, reducing downtime and data loss risks.
- Automated shutdown
- Remote management
- Event logging
Deployment / Use Cases
This 2200VA UPS is optimally sized for protecting small to medium server racks, network infrastructure, and storage systems. Its 2U form factor maximizes power density in space-constrained rack environments while maintaining adequate runtime for orderly shutdown procedures.
Typical deployments include rack-mounted server installations, network operation centers, point-of-sale systems, and telecommunications equipment. The pure sine wave output makes it particularly suitable for powering sensitive medical devices, laboratory equipment, and audio/video production gear that requires clean power waveforms.
Server Room Protection
Provides backup power for 1-2 rack servers, associated switches, and storage devices, with sufficient runtime for automated shutdown or short-duration outages.
- Rack-optimized
- Server compatibility
- Network integration
Network Infrastructure
Protects core networking equipment including routers, switches, and firewalls, maintaining network availability during power disturbances.
- Communications gear
- Continuous operation
- Voltage stabilization
Physical Profile
The black chassis measures 3.35 inches (85 mm) in height, 17 inches (431.80 mm) in width, and 26.26 inches (667 mm) in depth, occupying exactly 2U of standard 19-inch rack space. At 84.77 pounds (38.45 kg), the unit requires proper rack mounting and weight consideration during installation. The included rack mounting brackets, support rails, and removable feet facilitate both rack and tower configurations.
The convertible design allows deployment flexibility - it can be installed as a standalone tower using the removable support feet or integrated into rack environments using the complete rail kit. The compact 2U height maximizes power density in space-constrained rack cabinets while maintaining adequate ventilation and service access. The substantial weight reflects the robust construction and internal battery capacity, ensuring stable operation in both rack and tower orientations.
Physical dimensions are critical for deployment planning in server rooms, network closets, and equipment cabinets. The 17-inch width matches standard rack widths, while the 26.26-inch depth accommodates most rack depths with proper clearance for cable management. The black finish provides professional appearance that blends with typical IT equipment, and the form factor supports both front-to-back and side-to-side airflow patterns common in rack environments.
- Width
- 17" (431.80 mm)
- Depth
- 26.26" (667 mm)
- Height
- 3.35" (85 mm)
- Weight
- 84.77 lb (38451.03 g)
- Length
- 8 ft (2.44 m)
What's in the Box
The package includes all necessary components for immediate deployment in either rack or tower orientation.
Highlights
- 2200VA/1980W line interactive pure sine wave UPS
- 2U rack/tower convertible design with included rail kit
- 25 minutes runtime at half load (10 minutes at full load)
- 8 outlets: 2 x NEMA 5-20R and 6 x NEMA 5-15R
- Hot-swappable, maintenance-free lead-acid battery
- Pure sine wave output for sensitive equipment
- Serial and USB connectivity for management
- PowerChute Serial Edition software included
- Supports up to 10 external battery packs
- Automatic Voltage Regulation (AVR) technology
Specifications
| Specifications | |
|---|---|
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SMX2200RMLV2U |
| Brand Name | APC by Schneider Electric |
| Product Line | Smart-UPS |
| Product Series | X |
| Product Model | SMX2200RMLV2U |
| Product Name | Smart-UPS X SMX2200RMLV2U 2200 VA Rack-mountable UPS |
| Product Type | Line-interactive UPS |
| Technical Information | |
| Plug/Connector Type | NEMA L5-30P |
| Receptacle Type | NEMA L5-30P |
| Receptacle Detail | 2 x NEMA 5-20R,6 x NEMA 5-15R |
| Number of Battery & Surge Outlets | 8 |
| Cord Length | 8 ft (2.44 m) |
| Transfer Time | 4 ms |
| Power Description | |
| Load Capacity (VA) | 2.20 kVA |
| Load Capacity (Watt) | 1.98 kW |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 540 J |
| Interfaces/Ports | |
| Serial Port | Yes |
| USB | Yes |
| Battery Information | |
| Battery Characteristics | Maintenance-free, Sealed, Spill-proof |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 10 Minute |
| Backup/Run Time (Half Load) | 25 Minute |
| Hot Swappable | Yes |
| Typical Battery Recharge Time | 3 Hour |
| Physical Characteristics | |
| Product Color | Black |
| Height | 3.35" (85 mm) |
| Width | 17" (431.80 mm) |
| Depth | 26.26" (667 mm) |
| Rack Height | 2U |
| Form Factor | Rack-mountable |
| Weight (Approximate) | 84.77 lb (38451.03 g) |
| Miscellaneous | |
| Package Contents | Smart-UPS X SMX2200RMLV2U 2200 VA Rack-mountable UPS CD with software Documentation CD Installation guide Rack mounting brackets Rack mounting hardware Rack mounting support rails Removable support feet Smart UPS signalling RS-232 cable USB cable |
| Software Included | Powerchute Serial Edition |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | Battery: 24 month(s)|UPS: 36 month(s) |
