APC by Schneider Electric SRT1000RMXLA-NC APC Smart-UPS SRT 1000VA/900W Double-Conversion Online UPS - 2U Rackmount - 120V - 6x NEMA 5-15R Outlets
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Product Overview
The APC Smart-UPS SRT 1000VA RM 120V Network Card is a double-conversion online UPS engineered for critical power protection in rack-mounted server and network environments. This unit delivers 1000VA/900W of pure sine wave output with zero transfer time, ensuring clean, stable power for sensitive equipment. Its double-conversion topology continuously converts incoming AC power to DC and back to clean AC, eliminating power disturbances and providing seamless protection during outages.
Designed as a 2U rackmount solution, it includes a preinstalled network management card for remote monitoring and management. The UPS supports rack/tower convertible deployment with the included rail kit, offering flexibility for data centers, server rooms, and network closets. Its 120V input and output voltage aligns with standard North American power infrastructure, while six NEMA 5-15R outlets provide ample connectivity for servers, storage, and networking gear. The unit is Energy Star certified and RoHS compliant, reflecting its environmental responsibility.
Technical Overview
This Smart-UPS SRT model employs double-conversion online technology, continuously converting incoming AC power to DC and back to clean AC, eliminating power disturbances and providing zero transfer time during outages. The pure sine wave output is compatible with active PFC power supplies found in modern servers and networking gear, ensuring reliable operation without compatibility issues.

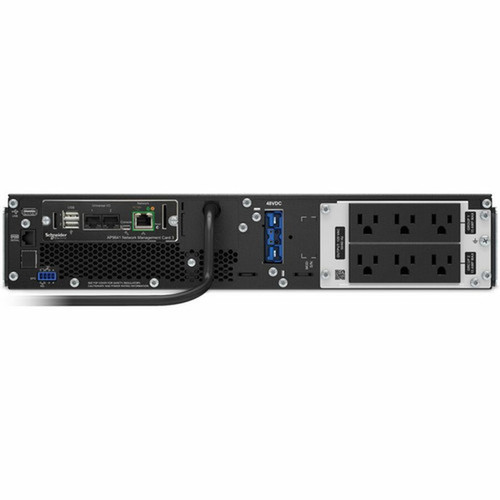

Electrical specifications include a single-phase 120V AC input and output, 1 kVA/900W load capacity, and a surge energy rating of 432 joules. The unit features six NEMA 5-15R outlets for connected equipment, backed by a 5.9-foot power cord with a NEMA 5-15P plug. Battery performance includes a 10-minute full-load runtime and a typical recharge time of three hours after complete discharge, using lead-acid chemistry. The preinstalled network management card enables remote monitoring via RJ-45, supporting graceful shutdown of physical servers, virtual machines, and HCI clusters.
Key Product Advantages
The APC Smart-UPS SRT 1000VA RM combines robust power protection with deployment flexibility. Its rack/tower convertible design, supported by included mounting rails and hardware, adapts to various installation scenarios. The double-conversion topology ensures clean power delivery, protecting critical loads from surges, sags, and outages.
Integrated Network Management
The preinstalled network management card enables remote monitoring, configuration, and graceful shutdown of connected physical servers, virtual machines, and HCI clusters via network-based management software. A one-year secure subscription is included.
- Remote UPS monitoring and management
- Graceful shutdown capabilities
- One-year secure subscription included
Runtime Scalability
For extended backup requirements, this UPS supports the addition of up to 10 external battery packs (SRT48RMBP), allowing runtime customization to meet specific application needs beyond the standard 10-minute full-load runtime.
- Supports up to 10 external battery packs
- Customizable runtime expansion
- Ideal for prolonged outage protection
Deployment / Use Cases
This UPS is engineered for environments where power quality and uptime are critical. Its 1000VA/900W capacity and pure sine wave output make it appropriate for servers, storage devices, voice/data networks, medical lab equipment, and light industrial applications.
The rackmount form factor and included rail kit facilitate integration into standard 19-inch server racks, while the network management capabilities support centralized power management in distributed IT infrastructures.
Server & Storage Protection
Ideal for rack-mounted servers, storage arrays, and network-attached storage (NAS) in data centers and server rooms, providing clean power and graceful shutdown during outages to prevent data loss and hardware damage.
Voice/Data Network Infrastructure
Suited for protecting voice-over-IP (VoIP) systems, network switches, routers, and other telecommunications equipment in network closets and telecom rooms, ensuring uninterrupted communication services.

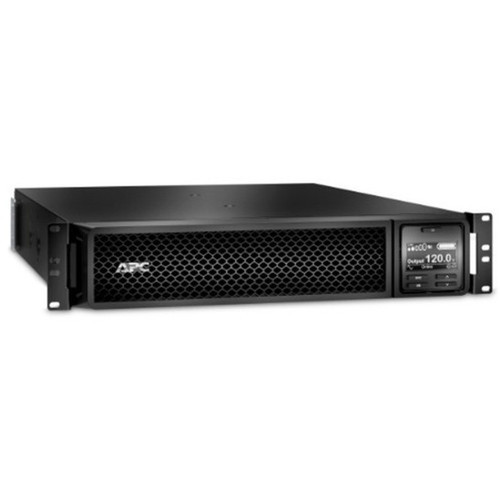

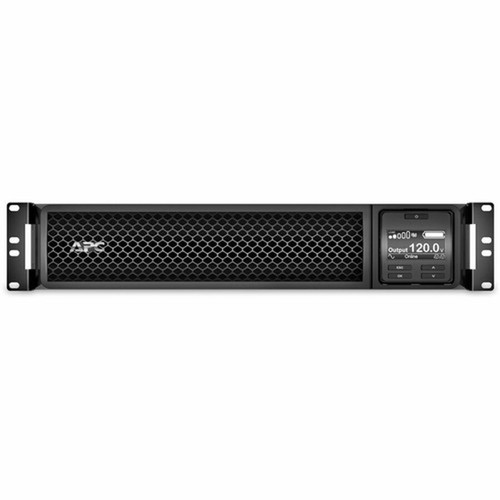

Physical Profile
The Smart-UPS SRT 1000VA RM occupies 2U of rack space with dimensions of 3.35 inches (85 mm) in height, 17.01 inches (432 mm) in width, and 20 inches (508 mm) in depth. Its black finish blends with standard rack equipment, and the approximate weight is 48.50 pounds (21999.23 grams). The included rail kit supports both rackmount and tower deployment configurations.
- Width
- 17.01" (432 mm)
- Depth
- 20" (508 mm)
- Height
- 3.35" (85 mm)
- Weight
- 48.50 lb (21999.23 g)
- Length
- 5.9 ft (1.80 m)
What's in the Box
The package includes the Smart-UPS SRT 1000VA RM 120V unit with preinstalled network management card, rack mounting brackets, hardware, support rails, a temperature probe, USB cable, CD with software, documentation CD, installation guide, and warranty card.
Highlights
- 1000VA/900W double-conversion online UPS with pure sine wave output
- 2U rackmount design with included rail kit for rack/tower convertible deployment
- Preinstalled network management card with one-year secure subscription
- Supports up to 10 external battery packs (SRT48RMBP) for extended runtime
- Six NEMA 5-15R outlets for connected equipment
- 120V input and output voltage for North American power standards
- Zero transfer time and double-conversion topology for clean power
- Energy Star certified and RoHS compliant
- Three-year UPS warranty with two-year battery warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SRT1000RMXLA-NC |
| Brand Name | APC by Schneider Electric |
| Product Line | Smart-UPS SRT |
| Product Name | Smart-UPS SRT 1000VA RM 120V Network Card |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15P |
| Receptacle Detail | 6 x NEMA 5-15R |
| Number of Battery & Surge Outlets | 6 |
| Cord Length | 5.9 ft (1.80 m) |
| Phase | Single Phase |
| Power Description | |
| Load Capacity (VA) | 1 kVA |
| Load Capacity (Watt) | 900 W |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 432 J |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Battery Information | |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 10 Minute |
| Typical Battery Recharge Time | 3 Hour |
| Physical Characteristics | |
| Product Color | Black |
| Height | 3.35" (85 mm) |
| Width | 17.01" (432 mm) |
| Depth | 20" (508 mm) |
| Rack Height | 2U |
| Form Factor | Rack-mountable |
| Weight (Approximate) | 48.50 lb (21999.23 g) |
| Miscellaneous | |
| Package Contents | Smart-UPS SRT 1000VA RM 120V Network Card CD with software Documentation CD Installation guide Network management card Rack mounting brackets Rack mounting hardware Rack mounting support rails Temperature probe USB cable Warranty card |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | UPS: 36 month(s)|Battery: 24 month(s) |
User Manual
FAQ
What is the power capacity of this APC Smart-UPS?
This APC Smart-UPS SRT model offers a power capacity of 1000VA (1 kVA) and 900 watts, providing robust backup for servers, storage, and networking equipment in rack-mounted environments.
What is the runtime at full load for this UPS?
At full load, this UPS provides a backup runtime of 10 minutes. For extended runtime needs, it supports adding up to 10 external battery packs (SRT48RMBP) to customize protection duration.
How many outlets does this UPS have and what type are they?
This unit includes six NEMA 5-15R outlets, allowing connection of multiple devices such as servers, switches, and storage arrays, all protected by battery backup and surge suppression.
What input and output voltage does this UPS support?
The UPS supports 120V AC input and output, making it compatible with standard North American power infrastructure for seamless integration into data centers and server rooms.
Is this UPS designed for rackmount or tower deployment?
This UPS is designed as a 2U rackmount unit with an included rail kit, enabling rack/tower convertible deployment for flexibility in data centers, network closets, or standalone setups.
What management features are included with this UPS?
It comes with a preinstalled network management card, offering remote monitoring, configuration, and graceful shutdown capabilities for physical servers, virtual machines, and HCI clusters, with a one-year secure subscription included.
