APC by Schneider Electric SRT1500RMXLA APC Smart-UPS SRT 1500VA RM 2U Rackmount UPS - 1350W Double-Conversion Online - Pure Sine Wave - 6x NEMA 5-15R
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Product Overview

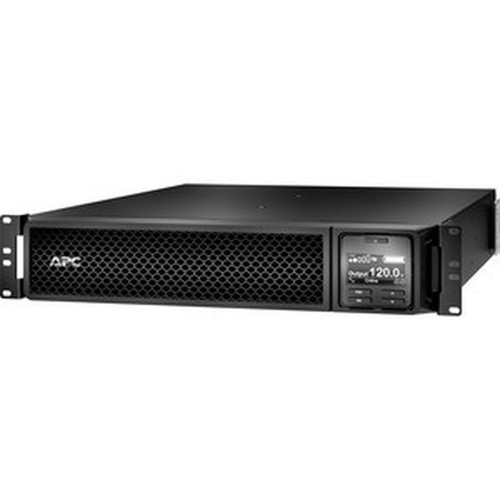

The APC Smart-UPS SRT 1500VA RM is a double-conversion online UPS engineered for rackmount deployment in server rooms, data centers, and network closets. This 2U unit delivers 1500VA/1350W of pure sine wave output with zero transfer time, ensuring clean and continuous power for sensitive IT equipment. Its double-conversion topology continuously converts incoming AC power to DC and back to AC, providing complete isolation from utility power anomalies and voltage fluctuations.
Designed with rack/tower convertible flexibility, it includes a complete rail kit for straightforward installation into standard 19-inch racks. The unit supports up to 10 external battery packs for extended runtime, making it scalable for demanding backup requirements. Its black finish and compact 3.35-inch height optimize space efficiency in dense rack environments. The UPS features six NEMA 5-15R battery-backed outlets, all protected against surges and outages, with network connectivity provided via an RJ-45 port for integration with management systems.
Technical Overview
This Smart-UPS SRT model employs double-conversion online topology, which continuously converts incoming AC power to DC and back to AC, providing complete isolation from utility power anomalies. The output is a pure sine wave, compatible with active PFC power supplies found in modern servers and networking gear. Electrical specifications include a 120V AC single-phase input and output, a 5.9-foot power cord, and a surge energy rating of 480 joules.
The unit features six NEMA 5-15R battery-backed outlets, all protected against surges and outages. Network connectivity is provided via an RJ-45 port for integration with management systems. Battery specifications include lead acid chemistry with a typical recharge time of 3 hours. The UPS is Energy Star certified and RoHS compliant, meeting environmental standards while delivering reliable power protection.
Key Product Advantages
The Smart-UPS SRT 1500VA RM provides robust power protection with features that enhance reliability and manageability. Its pure sine wave output ensures compatibility with sensitive electronic loads, while the included management capabilities enable graceful shutdown of physical servers, virtual machines, and HCI clusters.
Rack/Tower Flexibility
Includes rail kit for 2U rackmount installation, but can also operate as a tower unit, offering deployment versatility.
Scalable Runtime
Supports connection of up to 10 external APC SRT48RMBP battery packs, allowing runtime extension to meet specific backup needs.
Deployment / Use Cases
This UPS is suited for environments where power quality and uptime are non-negotiable. Its 1500VA capacity and online topology make it a fit for server rooms, data centers, and network closets supporting critical business operations.
Additional applications include medical labs, light industrial settings, and any installation with sensitive equipment requiring pure sine wave power and zero transfer time. The rack/tower convertible design allows it to adapt to both rack-mounted and standalone deployments.
Relevant product facts for this section include Plug/Connector Type: NEMA 5-15P, Receptacle Type: NEMA 5-15P, Receptacle Detail: 6 x NEMA 5-15R, Load Capacity (VA): 1.50 kVA. When those details are considered together, they give buyers a clearer picture of how the product is equipped, how it connects, and what kind of day-to-day role it is meant to support.
Server & Data Center Racks
Ideal for protecting 1U/2U servers, network switches, and storage arrays in rack environments, with 2U footprint minimizing space consumption.
Voice/Data Network Closets
Provides clean power for VoIP systems, routers, and switches in telecommunications and network infrastructure deployments.
Physical Profile
The unit features a black chassis with dimensions of 3.35 inches high, 17.01 inches wide, and 20 inches deep, occupying 2U of rack space. It weighs approximately 48.5 pounds, with the included rail kit supporting secure mounting in standard 19-inch racks. The compact height and depth are designed for efficient use of rack real estate.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 3.35" (85 mm), 17.01" (432 mm), 20" (508 mm), 48.50 lb (21999.23 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 17.01" (432 mm)
- Depth
- 20" (508 mm)
- Height
- 3.35" (85 mm)
- Weight
- 48.50 lb (21999.23 g)
- Length
- 5.9 ft (1.80 m)
What's in the Box
The package includes all necessary components for installation and operation.
Highlights
- 1500VA/1350W double-conversion online UPS with pure sine wave output
- 2U rackmount form factor with included rail kit for easy installation
- Six NEMA 5-15R battery-backed outlets for connected equipment
- Zero transfer time ensures continuous power for sensitive devices
- Supports up to 10 external battery packs for extended runtime
- Network RJ-45 port for management and monitoring
- Rack/tower convertible design offers deployment flexibility
- Energy Star certified and RoHS compliant
- 3-year UPS warranty with 2-year battery warranty
- Ideal for servers, storage, voice/data networks, and medical labs
Specifications
| Specifications | |
|---|---|
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SRT1500RMXLA |
| Brand Name | APC by Schneider Electric |
| Product Line | Smart-UPS SRT |
| Product Name | Smart-UPS SRT 1500VA RM 120V |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15P |
| Receptacle Detail | 6 x NEMA 5-15R |
| Number of Battery & Surge Outlets | 6 |
| Cord Length | 5.9 ft (1.80 m) |
| Phase | Single Phase |
| Power Description | |
| Load Capacity (VA) | 1.50 kVA |
| Load Capacity (Watt) | 1.35 kW |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 480 J |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Battery Information | |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 5 Minute |
| Typical Battery Recharge Time | 3 Hour |
| Physical Characteristics | |
| Product Color | Black |
| Height | 3.35" (85 mm) |
| Width | 17.01" (432 mm) |
| Depth | 20" (508 mm) |
| Rack Height | 2U |
| Form Factor | Rack-mountable |
| Weight (Approximate) | 48.50 lb (21999.23 g) |
| Miscellaneous | |
| Package Contents | Smart-UPS SRT 1500VA RM 120V CD with software Documentation CD Installation guide Rack mounting brackets Rack mounting hardware Rack mounting support rails USB cable Warranty card |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | UPS: 36 month(s)|Battery: 24 month(s) |
User Manual
FAQ
What is the power capacity of this APC Smart-UPS?
This UPS delivers 1500VA/1350W of double-conversion online power. The 1.50 kVA capacity and 1.35 kW wattage rating make it suitable for protecting servers, network equipment, and other critical IT infrastructure requiring reliable backup power.
What is the runtime at full load?
At full load, the internal battery provides approximately 5 minutes of backup runtime. This runtime can be significantly extended by connecting up to 10 external APC SRT48RMBP battery packs, allowing you to scale protection based on your specific uptime requirements.
How many outlets does this UPS have?
The unit features six NEMA 5-15R battery and surge-protected outlets. This configuration supports multiple connected devices, such as servers, switches, and storage arrays, from a single power protection source.
What are the input and output voltage specifications?
The UPS is designed for 120V AC single-phase power. Both the input and output operate at 120V AC, providing consistent voltage regulation and pure sine wave output for compatibility with sensitive electronic equipment.
Is this UPS designed for rackmount or tower deployment?
This is a rack/tower convertible unit. It comes with a complete rail kit for installation as a 2U rackmount device in a standard 19-inch rack. It can also be deployed as a standalone tower, offering flexibility for server rooms, network closets, or office environments.
What management and connectivity options are included?
The UPS includes an RJ-45 network port for integration with power management software. This enables features like graceful shutdown of physical and virtual servers, remote monitoring, and environmental reporting. A USB cable is also included for direct computer connectivity.
