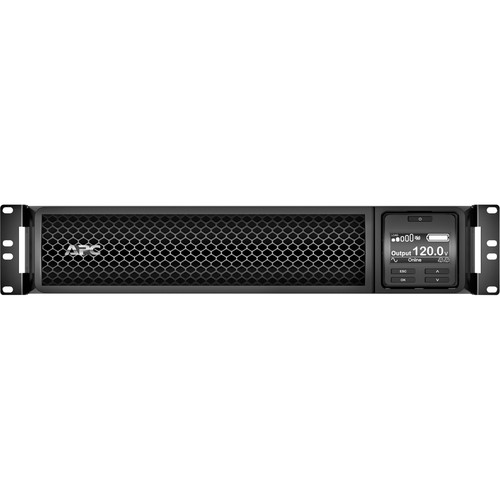

APC by Schneider Electric SRT2200RMXLA-NC APC Smart-UPS SRT 2200VA/1800W Double-Conversion Online UPS - 2U Rackmount - 120V - 7 NEMA Outlets - Network
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Product Overview
The APC Smart-UPS SRT 2200VA RM 120V Network Card is a double-conversion online UPS engineered for protecting critical IT infrastructure in server rooms, network closets, and edge computing environments. This 2200VA/1800W unit delivers pure sine wave output with zero transfer time, ensuring clean, stable power for sensitive electronic equipment such as servers, storage arrays, and networking gear. Its double-conversion topology continuously converts incoming AC power to DC and back to clean AC, providing complete isolation from utility power anomalies including voltage fluctuations, frequency variations, and harmonic distortion.
Designed for rack deployment, this 2U form factor UPS includes a complete rail kit for straightforward installation in standard 19-inch server cabinets. The preinstalled network management card enables remote monitoring, configuration, and graceful shutdown of connected physical servers, virtual machines, and hyper-converged infrastructure clusters. With 7 NEMA outlets (6×5-20R + 1×L5-20R), the unit offers flexible power distribution for multiple devices while maintaining 120V AC input and output voltage with single-phase operation. The 5.9-foot power cord provides adequate reach for standard rack installations, and the black chassis is built for durability in data center environments.
Technical Overview
This Smart-UPS SRT model employs double-conversion online technology that maintains consistent power quality regardless of input conditions. The system continuously converts incoming AC power to DC, then back to clean AC output, providing complete electrical isolation from utility power issues. This topology ensures zero transfer time during outages, eliminating the brief power interruption that occurs with line-interactive UPS systems. The pure sine wave output is identical to utility power, making it compatible with sensitive server power supplies, medical equipment, and networking gear that may malfunction with simulated sine wave approximations.
The unit's 340-joule surge energy rating offers robust protection against power surges and spikes, while the lead-acid battery chemistry provides reliable backup power with a typical recharge time of 3 hours. The system maintains 120V AC input and output voltage with single-phase operation, supporting standard North American power infrastructure. The rack-mountable form factor occupies 2U of vertical space in standard server cabinets, with dimensions of 3.35" (85 mm) height, 17.01" (432 mm) width, and 22.99" (584 mm) depth. The 55.12-pound weight requires proper rack mounting consideration for safe installation.
Key Product Advantages
The Smart-UPS SRT 2200VA delivers enterprise-grade power protection with features specifically designed for IT environments. Its combination of robust power conditioning, flexible deployment options, and comprehensive management capabilities makes it suitable for protecting critical infrastructure.
Advanced Power Protection
Double-conversion online technology ensures complete isolation from utility power issues, while pure sine wave output maintains compatibility with sensitive server power supplies and networking equipment.
- Zero transfer time during outages
- Continuous voltage regulation
- Complete harmonic isolation
Integrated Management
The preinstalled network management card enables remote monitoring, configuration, and graceful shutdown of connected servers and virtual machines through network-based management interfaces.
- 1-year secure subscription included
- Physical and virtual server support
- HCI cluster compatibility
Flexible Deployment
Rack/tower convertible design with included rail kit allows installation in standard 19-inch server racks or as a standalone tower unit, adapting to various data center and server room configurations.
- Complete rail kit included
- 2U rack height
- 55.12 lb weight for manageable installation
Deployment / Use Cases
This 2200VA UPS is engineered for protecting critical infrastructure in small to medium server rooms, network closets, and edge computing environments. Its power capacity and form factor make it suitable for supporting multiple servers, storage arrays, and networking equipment simultaneously.
The unit's double-conversion technology and pure sine wave output make it particularly valuable for medical laboratories, light industrial applications, and voice/data networks where power quality directly impacts operational reliability and equipment longevity.
Server Room Protection
Ideal for protecting 1-2 rack servers, associated storage, and networking equipment with sufficient runtime for graceful shutdown during extended power outages.
Network Infrastructure
Provides clean power for switches, routers, and other networking equipment in data closets and telecommunications rooms where power fluctuations can cause network disruptions.
Physical Profile
The black chassis measures 3.35" (85 mm) in height, 17.01" (432 mm) in width, and 22.99" (584 mm) in depth, occupying 2U of vertical rack space. The rack-mountable form factor includes all necessary mounting hardware and support rails for secure installation in standard 19-inch server cabinets. The unit's weight of 55.12 pounds requires proper rack mounting consideration and potentially two-person installation for safety.
- Width
- 17.01" (432 mm)
- Depth
- 22.99" (584 mm)
- Height
- 3.35" (85 mm)
- Weight
- 55.12 lb (25002.01 g)
- Length
- 5.9 ft (1.80 m)
What's in the Box
The package includes all components necessary for immediate deployment and management of the UPS system.
Highlights
- 2200VA/1800W double-conversion online UPS with pure sine wave output
- 2U rackmount form factor with included rail kit for server cabinet installation
- Preinstalled network management card with 1-year secure subscription
- 7 NEMA outlets (6×5-20R + 1×L5-20R) for flexible device connectivity
- 120V AC input and output voltage with single-phase operation
- Zero transfer time ensures uninterrupted power to critical equipment
- Rack/tower convertible design for deployment flexibility
- Supports graceful shutdown of physical servers, virtual machines, and HCI clusters
- Compatible with up to 10 external battery packs (SRT72RMBP) for extended runtime
- 3-year UPS warranty with 2-year battery warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SRT2200RMXLA-NC |
| Brand Name | APC by Schneider Electric |
| Product Line | Smart-UPS |
| Product Name | Smart-UPS SRT 2200VA RM 120V Network Card |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Plug/Connector Type | NEMA 5-20P |
| Receptacle Type | NEMA 5-20P |
| Receptacle Detail | 1 x NEMA L5-20R,6 x NEMA 5-20R |
| Number of Battery & Surge Outlets | 7 |
| Cord Length | 5.9 ft (1.80 m) |
| Phase | Single Phase |
| Power Description | |
| Load Capacity (VA) | 2.20 kVA |
| Load Capacity (Watt) | 1.80 kW |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 340 J |
| Battery Information | |
| Battery Chemistry | Lead Acid |
| Typical Battery Recharge Time | 3 Hour |
| Physical Characteristics | |
| Product Color | Black |
| Height | 3.35" (85 mm) |
| Width | 17.01" (432 mm) |
| Depth | 22.99" (584 mm) |
| Rack Height | 2U |
| Form Factor | Rack-mountable |
| Weight (Approximate) | 55.12 lb (25002.01 g) |
| Miscellaneous | |
| Package Contents | Smart-UPS SRT 2200VA RM 120V Network Card CD with software Documentation CD Installation guide Network management card Rack mounting brackets Rack mounting hardware Rack mounting support rails USB cable Warranty card |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | UPS: 36 month(s)|Battery: 24 month(s) |
User Manual
FAQ
What is the power capacity of this APC Smart-UPS SRT?
This UPS delivers 2200VA (2.20 kVA) and 1800W of power capacity, suitable for protecting multiple servers, storage arrays, and networking equipment in small to medium server rooms or edge computing environments.
What type of output waveform does this UPS provide?
The unit supplies pure sine wave output, identical to utility power, ensuring compatibility with sensitive server power supplies, medical equipment, and networking gear that may malfunction with simulated sine wave approximations.
How many outlets are included and what types are they?
It features 7 NEMA outlets: 6 NEMA 5-20R and 1 NEMA L5-20R, offering flexible power distribution for various devices while supporting 120V AC input and output voltage with single-phase operation.
Is this UPS designed for rack or tower deployment?
This unit is rack-mountable with a 2U form factor and includes a complete rail kit for installation in standard 19-inch server cabinets. It is also rack/tower convertible, allowing standalone tower use if needed.
What management capabilities are included with this UPS?
A preinstalled network management card enables remote monitoring, configuration, and graceful shutdown of connected physical servers, virtual machines, and HCI clusters, with a 1-year secure subscription included for network-based management.
Can the runtime be extended on this APC Smart-UPS SRT?
Yes, the UPS is compatible with up to 10 external battery packs (model SRT72RMBP), allowing for extended runtime to meet longer backup needs during power outages in critical applications.
