APC by Schneider Electric SRT3000RMXLW-IEC APC Smart-UPS On-Line 3kVA 2U Rackmount UPS - 208V/230V - 6x C13 + 2x C19 Outlets - Double Conversion Pure
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Product Overview

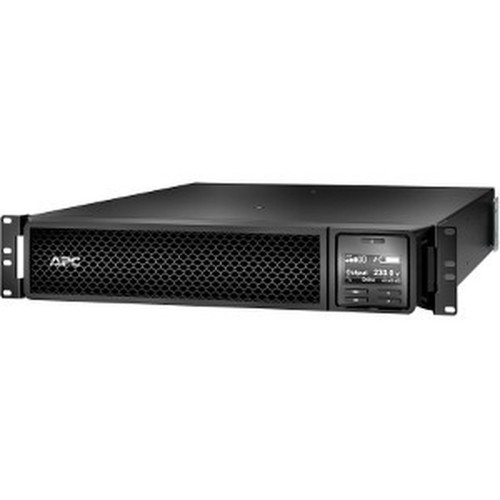

The APC Smart-UPS On-Line SRT3000RMXLW-IEC is a 3kVA double-conversion online UPS engineered for rackmount deployment in demanding IT environments. This unit delivers pure sine wave output with zero transfer time, ensuring clean and consistent power for sensitive server, storage, and networking equipment. Its 2U rackmount form factor includes a comprehensive rail kit for straightforward installation in standard 19-inch racks, optimizing space in dense server cabinets.
Supporting 208V/230V input and output voltages, this UPS is suitable for commercial and light industrial power infrastructures. The black finish and compact 3.35-inch height enhance its integration into professional settings. With 10 total outlets—6 IEC C13 and 2 IEC C19—it provides versatile connectivity for a range of equipment, from servers to higher-power devices, all backed by battery and surge protection.
This Smart-UPS employs a double-conversion topology that continuously conditions incoming AC power, converting it to DC and then back to clean AC output. This process eliminates transfer delays and provides complete isolation from grid disturbances, including sags, surges, and harmonics. The 340-joule surge energy rating offers robust protection against transient voltage spikes, while the 7.9-foot power cord with a British BS1363A plug ensures flexible connectivity to standard IEC C20 or Schuko receptacles.
Internal lead-acid batteries support a 4-minute runtime at full load, with a typical recharge cycle of 3 hours. The unit is designed for scalability, allowing connection of up to 10 external APC SRT96RMBP battery packs to extend runtime for prolonged outages or higher load scenarios. Included PowerChute Serial Edition software enables automated graceful shutdowns of connected systems, enhancing reliability in critical applications.
Technical Overview
This Smart-UPS employs a double-conversion online topology that continuously conditions incoming AC power, converting it to DC and then back to clean AC output. This process eliminates transfer delays and provides complete isolation from grid disturbances, including sags, surges, and harmonics.
The unit features a 340-joule surge energy rating for robust protection against transient voltage spikes. Its 7.9-foot power cord with a British BS1363A plug connects to standard IEC C20 or Schuko receptacles. Internal lead-acid batteries support a 4-minute runtime at full load, with a typical recharge cycle of 3 hours.
Relevant product facts for this section include Plug/Connector Type: British BS1363A, Receptacle Type: IEC 60320 C20,Schuko CEE 7/EU1-16P, Receptacle Detail: 2 x IEC 60320 C19,2 x IEC Jumper,6 x IEC 60320 C13, Load Capacity (VA): 3 kVA. When those details are considered together, they give buyers a clearer picture of how the product is equipped, how it connects, and what kind of day-to-day role it is meant to support.
Extended Runtime Capability
Connect up to 10 external APC SRT96RMBP battery packs to significantly increase backup duration for prolonged outages or higher load scenarios.
Key Product Advantages
The Smart-UPS On-Line series provides enterprise-grade power protection with features tailored for critical infrastructure. Its rack/tower convertible design offers deployment flexibility, while the included PowerChute Serial Edition software enables automated graceful shutdowns of connected systems.
Zero Transfer Time
Double-conversion technology ensures uninterrupted power delivery with no switching gap, ideal for sensitive medical, laboratory, and financial hardware.
- Eliminates power interruptions
- Protects against all grid anomalies
- Maintains consistent sine wave output
Comprehensive Management
Integrated SmartSlot accepts management cards for remote monitoring, while USB and serial connectivity support local shutdown sequences via PowerChute software.
- SmartSlot for expansion modules
- Serial and USB shutdown interfaces
- PowerChute Serial Edition included
Deployment / Use Cases
This 3kVA rackmount UPS is purpose-built for protecting rack-mounted IT equipment in server rooms, data closets, and network operation centers. Its 2U form factor and included rail kit make it ideal for standard 19-inch cabinet installations where vertical space is at a premium.
The unit's pure sine wave output and double-conversion topology make it suitable for applications requiring clean power, including voice/data network equipment, storage arrays, medical diagnostic devices, and light industrial control systems. The ability to add external battery packs extends its utility for environments requiring longer runtime protection.
Server Room Protection
Safeguard critical server infrastructure with clean, uninterrupted power that prevents data corruption and hardware damage during outages.
Network Equipment Support
Maintain connectivity for switches, routers, and VoIP systems through consistent power delivery that prevents network downtime.
Physical Profile
The UPS measures 3.35 inches in height (2U), 17.01 inches in width, and 25 inches in depth, with a weight of 69 pounds. Its black chassis matches standard rack equipment aesthetics, while the front-panel display provides real-time status monitoring. The included rack mounting brackets and support rails facilitate secure installation in compatible server cabinets.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 3.35" (85 mm), 17.01" (432 mm), 25" (635 mm), 69 lb (31297.87 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 17.01" (432 mm)
- Depth
- 25" (635 mm)
- Height
- 3.35" (85 mm)
- Weight
- 69 lb (31297.87 g)
- Length
- 7.9 ft (2.40 m)
What's in the Box
The package includes all necessary components for immediate deployment and management.
Highlights
- 3kVA/2.7kW double-conversion online UPS with pure sine wave output
- 2U rackmount form factor with included rail kit for 19-inch cabinets
- Supports 208V/230V input and output voltages for commercial power systems
- Features 6x IEC C13 and 2x IEC C19 outlets for versatile equipment connectivity
- Provides zero transfer time protection for sensitive server and network devices
- Includes PowerChute Serial Edition software for automated graceful shutdowns
- Accepts up to 10 external battery packs (SRT96RMBP) for extended runtime
- RoHS compliant with 3-year UPS warranty and 2-year battery warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SRT3000RMXLW-IEC |
| Brand Name | APC by Schneider Electric |
| Product Line | Smart-UPS On-Line |
| Product Name | Smart-UPS SRT 3000VA RM 208/230V IEC |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Plug/Connector Type | British BS1363A |
| Receptacle Type | IEC 60320 C20,Schuko CEE 7/EU1-16P |
| Receptacle Detail | 2 x IEC 60320 C19,2 x IEC Jumper,6 x IEC 60320 C13 |
| Number of Battery & Surge Outlets | 10 |
| Cord Length | 7.9 ft (2.40 m) |
| Phase | Single Phase |
| Power Description | |
| Load Capacity (VA) | 3 kVA |
| Load Capacity (Watt) | 2.70 kW |
| Input Voltage | 208 V AC,230 V AC |
| Output Voltage | 208 V AC,230 V AC |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 340 J |
| Battery Information | |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 4 Minute |
| Typical Battery Recharge Time | 3 Hour |
| Physical Characteristics | |
| Product Color | Black |
| Height | 3.35" (85 mm) |
| Width | 17.01" (432 mm) |
| Depth | 25" (635 mm) |
| Rack Height | 2U |
| Form Factor | Rack-mountable |
| Weight (Approximate) | 69 lb (31297.87 g) |
| Miscellaneous | |
| Package Contents | Smart-UPS SRT 3000VA RM 208/230V IEC CD with software Documentation CD Installation guide Rack mounting brackets Rack mounting support rails USB cable Warranty card |
| Software Included | Powerchute Serial Edition |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | UPS: 36 month(s)|Battery: 24 month(s) |
User Manual
FAQ
What is the power capacity of this APC Smart-UPS?
This APC Smart-UPS On-Line delivers 3 kVA (3,000 VA) and 2.7 kW of power capacity. This double-conversion online UPS is designed to protect critical IT equipment like servers, storage arrays, and network infrastructure in commercial and light industrial environments, providing clean sine wave output with zero transfer time.
What is the runtime at full load?
At full load (2.7 kW), the internal lead-acid batteries provide approximately 4 minutes of backup runtime. This allows sufficient time for connected systems to perform a graceful shutdown via PowerChute software or for short-duration power interruptions. Runtime can be extended significantly by adding up to 10 external APC SRT96RMBP battery packs.
How many outlets does this UPS have and what types?
This UPS features 10 total battery and surge-protected outlets. The configuration includes 6 IEC C13 outlets (common for servers and networking equipment) and 2 IEC C19 outlets (for higher-power devices), plus 2 IEC jumper connections. This versatile outlet mix supports a range of rack-mounted IT equipment in data center and server room deployments.
What input and output voltages does it support?
The UPS supports both 208V and 230V AC input and output voltages, making it compatible with standard commercial power systems in North America and other regions. This single-phase unit accepts these voltages automatically, delivering the same clean output voltage to connected equipment regardless of input fluctuations.
Is this UPS designed for rack or tower deployment?
This is primarily a 2U rackmount UPS that includes a complete rail kit for installation in standard 19-inch server cabinets. The rack/tower convertible design allows it to be deployed as a tower unit if needed, though its 3.35-inch height and included mounting hardware make it ideal for rack environments where space optimization is critical.
What management and software features are included?
The UPS includes PowerChute Serial Edition software for automated graceful shutdown of connected systems via USB or serial cable. It also features a SmartSlot for adding management cards for remote monitoring and control. These management capabilities help protect data integrity and prevent hardware damage during extended power outages.
