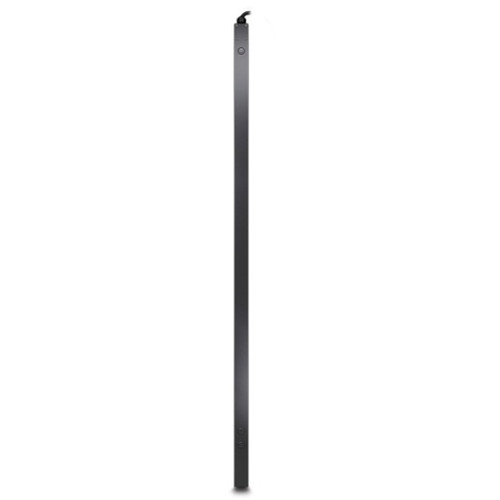

APC by Schneider Electric AP8965 Switched Rack PDU - 24 Outlets - 8. 6kW - NEMA L21-30P - 3x C19 & 21x C13
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This switched PDU features a comprehensive technical specification that supports high-density rack deployments. The unit accepts 230V AC input through a NEMA L21-30P connector and distributes 208V AC output across 24 outlets, comprising 3 IEC 60320 C19 and 21 IEC 60320 C13 receptacles.
The digital current meter provides real-time monitoring capabilities, allowing administrators to track power consumption and prevent overload conditions. With a tower form factor measuring 72 inches in height and just 2.20 inches in width, the AP8965 maximizes vertical space utilization in standard server racks.
This section brings together practical product details such as PDU Type, Plug/Connector Type, Receptacle Type, Input Voltage, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The AP8965 combines robust power delivery with intelligent management features that enhance rack deployment efficiency. The switched PDU architecture allows for individual outlet control and monitoring, enabling precise power management for connected equipment.
High-Density Power Distribution
Delivers 8.6kW of power through 24 strategically configured outlets, supporting multiple servers and networking devices in a single rack unit.
- 3x C19 outlets for high-power equipment
- 21x C13 outlets for standard devices
- Balanced load distribution across circuits
Intelligent Monitoring & Control
Switched functionality enables remote power management and monitoring through the built-in digital current meter, providing visibility into power consumption patterns.
- Real-time current monitoring
- Remote outlet control capabilities
- Overload prevention features
Deployment / Use Cases
The APC AP8965 Switched Rack PDU is specifically designed for environments where reliable power distribution and management are critical. Its 8.6kW capacity and 24-outlet configuration make it suitable for fully populated server racks in enterprise data centers, cloud hosting facilities, and telecommunications infrastructure.
The tower form factor and rack-mountable design ensure seamless integration into standard 19-inch server racks, while the switched functionality provides the monitoring and control capabilities needed for modern IT infrastructure management. The unit's environmental compliance with RoHS and REACH standards makes it suitable for deployment in facilities with strict environmental requirements.
Data Center Rack Deployment
Ideal for server racks in data centers and colocation facilities where high-density power distribution and remote management are essential for operational efficiency.
Network Equipment Rooms
Supports networking equipment rooms requiring multiple power outlets for switches, routers, and other infrastructure components with reliable power distribution.
Physical Profile
The AP8965 features a tower form factor specifically designed for vertical rack mounting. With dimensions of 72 inches in height, 2.20 inches in width, and 2 inches in depth, the PDU maximizes vertical space utilization while maintaining a slim profile that doesn't interfere with equipment installation or airflow.
Weighing approximately 18 pounds, the unit is manageable for installation while providing substantial construction for long-term reliability. The rack-mountable design includes mounting brackets for secure installation in standard server racks, ensuring stable operation in vibration-prone environments.
- Width
- 2.20" (55.88 mm)
- Depth
- 2" (50.80 mm)
- Height
- 72" (1828.80 mm)
- Weight
- 18 lb (8164.66 g)
What's in the Box
The APC AP8965 Switched Rack PDU ships complete with all necessary components for immediate deployment and configuration.
Highlights
- 8.6kW power capacity for high-density rack deployments
- 24 total outlets with 3x C19 and 21x C13 receptacle configuration
- NEMA L21-30P input connector for 230V AC power sources
- Switched PDU functionality with remote monitoring and control
- Built-in digital current meter for real-time power monitoring
- Overload protection safeguards connected equipment
- Tower form factor designed for vertical rack mounting
- RoHS and REACH environmental compliance
- 2-year limited warranty for peace of mind
- Includes serial configuration cable for management setup
Specifications
| Specifications | |
|---|---|
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | AP8965 |
| Brand Name | APC by Schneider Electric |
| Product Line | Switched Rack |
| Product Model | AP8965 |
| Product Name | Switched Rack AP8965 24-Outlets 8.6kW PDU |
| Product Type | PDU |
| Technical Information | |
| PDU Type | Switched |
| Plug/Connector Type | NEMA L21-30P |
| Receptacle Type | IEC 60320 C19,IEC 60320 C13 |
| Receptacle Detail | 3 x IEC 60320 C19,21 x IEC 60320 C13 |
| Protection Type | Overload Protection |
| Power Description | |
| Input Voltage | 230 V AC |
| Output Voltage | 208 V AC |
| Power Rating (Watt) | 8.60 kW |
| Physical Characteristics | |
| Mount Type | Rack-mountable |
| Form Factor | Tower |
| Height | 72" (1828.80 mm) |
| Width | 2.20" (55.88 mm) |
| Depth | 2" (50.80 mm) |
| Weight (Approximate) | 18 lb (8164.66 g) |
| Miscellaneous | |
| Package Contents | Switched Rack AP8965 24-Outlets 8.6kW PDU Installation guide Rack mounting brackets Safety guide Serial configuration cable |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Warranty | |
| Limited Warranty | 2 Year |
FAQ
What is the power capacity of the APC AP8965 PDU?
The APC AP8965 Switched Rack PDU delivers 8.6 kilowatts (8,600 watts) of power capacity. This high-capacity rating supports demanding server rack environments with multiple connected devices, providing sufficient power for high-density deployments while maintaining efficient power distribution across all outlets.
How many outlets does this PDU have and what types are they?
This PDU features 24 total outlets configured as 3 IEC 60320 C19 receptacles and 21 IEC 60320 C13 receptacles. The C19 outlets support higher-power equipment, while the C13 outlets accommodate standard server and networking devices, providing a balanced configuration for diverse rack deployments.
What input connector does the AP8965 use?
The AP8965 utilizes a NEMA L21-30P input connector designed for 230V AC power sources. This connector type is commonly used in commercial and data center environments for three-phase power distribution, ensuring compatibility with standard rack power infrastructure.
What are the physical dimensions of this rack PDU?
The APC AP8965 measures 72 inches in height, 2.20 inches in width, and 2 inches in depth. This tower form factor is specifically designed for vertical mounting in standard 19-inch server racks, maximizing vertical space utilization while maintaining a slim profile that doesn't interfere with equipment installation or airflow management.
What does 'switched PDU' mean for this unit?
A switched PDU provides remote monitoring and control capabilities for individual outlets. The AP8965 includes a built-in digital current meter that enables real-time power consumption monitoring and remote outlet control through network management interfaces. This functionality allows administrators to manage power distribution, reboot equipment remotely, and prevent overload conditions.
What protection features does this PDU include?
The APC AP8965 includes overload protection that safeguards connected equipment from excessive current draw. This protection mechanism helps prevent damage to servers and networking devices while maintaining stable power distribution. The unit also complies with RoHS and REACH environmental standards, restricting hazardous substances in its construction.
What power capacity is listed for this UPS?
The listed power specification is 8.60 kW, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 230 V AC, which helps position the unit for the right load level and installation role.
