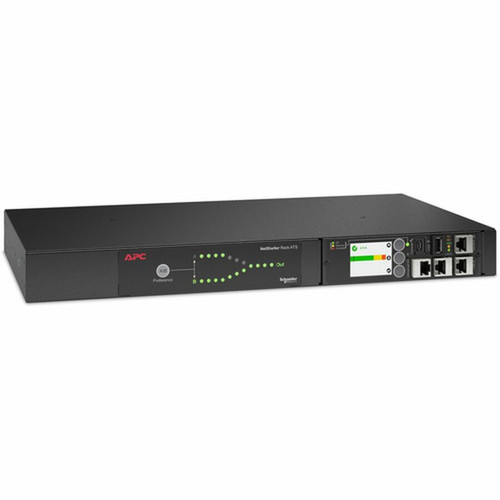

APC by Schneider Electric AP4434A NetShelter Automatic Transfer Switch - 1U Rack-Mountable - 20A 208V - 8 C13 + 1 C19 Outlets
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This automatic transfer switch operates at 208V AC with 20A current capacity across both input and output circuits. The dual C20 input connectors accept power from separate sources, while the output configuration includes eight IEC 60320 C13 receptacles and one C19 receptacle for mixed equipment connectivity.
The transfer mechanism achieves seamless switching within 10 milliseconds, minimizing disruption to connected devices. The unit's 1U rack-mount design occupies minimal vertical space while providing full-width mounting compatibility with standard 19-inch racks.
This section brings together practical product details such as Plug/Connector Type, Receptacles, Input Voltage, Output Voltage, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The AP4434A combines rapid failover protection with advanced management features for modern IT environments. The field-replaceable NMC3 network management card enables remote monitoring of power status, temperature, and humidity conditions while providing enhanced cybersecurity protections.
Dual-Input Redundancy
Two independent power inputs ensure continuous operation by automatically switching to the secondary source during primary power failures.
- 10ms transfer time
- Automatic failover
- Manual override capability
Centralized Management
Manage up to 32 rack ATS units from a single IP address through the integrated NMC3 with Gigabit Ethernet connectivity.
- Web UI access
- SNMP monitoring
- EcoStruxure IT Expert integration
Flexible Installation
Supports both traditional wired setup and wireless configuration via optional APC Wi-Fi USB device for cable-free installation.
- Rack mounting brackets included
- Serial configuration cable provided
- 1U space-efficient design
Deployment / Use Cases
The NetShelter Automatic Transfer Switch is designed for environments requiring high availability power protection. Its 1U form factor and 208V 20A capacity make it ideal for server racks, network closets, and edge computing deployments where space is constrained but reliability cannot be compromised.
Typical applications include protecting rack-mounted servers, storage arrays, network switches, and telecommunications equipment in data centers, colocation facilities, and enterprise server rooms. The dual-input design provides redundancy for critical systems connected to separate power circuits or UPS units.
This section brings together practical product details such as Plug/Connector Type, Receptacles, Input Voltage, Output Voltage, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Data Center Racks
Provide automatic failover protection for server and storage equipment in high-density rack environments.
Network Infrastructure
Ensure continuous operation of core networking equipment including switches, routers, and firewalls.
Physical Profile
This black automatic transfer switch features a standard 1U rack-mount design measuring 1.73 inches in height, 17.01 inches in width, and 9.29 inches in depth. The compact footprint maximizes usable rack space while the 8.25-pound weight ensures stable installation without excessive load on rack rails.
The unit includes rack mounting brackets and hardware for secure installation in 19-inch rack enclosures. The RoHS-compliant construction meets environmental standards while maintaining durability for continuous operation in controlled IT environments.
- Width
- 17.01" (432 mm)
- Depth
- 9.29" (236 mm)
- Height
- 1U
- Weight
- 8.25 lb (3742.14 g)
What's in the Box
The AP4434A NetShelter Automatic Transfer Switch ships complete with all necessary components for immediate deployment in rack environments.
Highlights
- Dual-input power redundancy with automatic 10ms transfer switching
- 1U rack-mountable design for space-efficient installation
- 20A 208V power capacity for critical IT equipment
- 8 x C13 + 1 x C19 output receptacles for mixed device connectivity
- Integrated APC NMC3 with Gigabit Ethernet for network management
- Field-replaceable network management card for easy maintenance
- Supports wireless setup with optional APC Wi-Fi USB device
- RoHS compliant construction with 2-year limited warranty
- Monitor temperature and humidity conditions remotely
- Manage up to 32 rack ATS units from single IP address
Specifications
| Specifications | |
|---|---|
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | AP4434A |
| Brand Name | APC by Schneider Electric |
| Product Line | NetShelter |
| Product Name | NetShelter Automatic Transfer Switch |
| Product Type | Automatic Transfer Switch |
| Technical Information | |
| Plug/Connector Type | IEC 60320 C20 16A (2P+E) |
| Receptacles | 8 x IEC 60320 C13,1 x IEC 60320 C19 |
| Power Description | |
| Input Voltage | 208 V AC |
| Output Voltage | 208 V AC |
| Current | 20 A |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Rack-mountable |
| Rack Height | 1U |
| Height | 1.73" (44 mm) |
| Width | 17.01" (432 mm) |
| Depth | 9.29" (236 mm) |
| Weight (Approximate) | 8.25 lb (3742.14 g) |
| Miscellaneous | |
| Package Contents | NetShelter Automatic Transfer Switch Mounting Hardware Rack Mounting Brackets Serial Configuration Cable |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What is the purpose of an automatic transfer switch in a rack environment?
An automatic transfer switch provides power redundancy by automatically switching between two independent power sources when the primary source fails. This ensures continuous operation of critical IT equipment like servers, storage, and networking gear during power disruptions, minimizing downtime in data center and server room environments.
What power specifications does the AP4434A ATS support?
The AP4434A operates at 208 volts AC with a 20-amp current rating. It accepts dual input power through C20 connectors and distributes power through eight C13 and one C19 output receptacles. The unit is designed for 50/60Hz power systems commonly found in North American commercial and data center environments.
How quickly does this ATS switch between power sources?
This automatic transfer switch achieves seamless power transfer within 10 milliseconds. This rapid switching time minimizes disruption to connected equipment, ensuring servers and network devices maintain operation without rebooting or experiencing significant power interruptions during source transitions.
What management capabilities does the integrated NMC3 provide?
The APC Network Management Card 3 (NMC3) offers comprehensive monitoring and control through web interface, SNMP, command-line interface, and EcoStruxure IT Expert software. It enables remote management of power status, temperature, humidity, and transfer events, while supporting enhanced cybersecurity features for secure network integration.
How many rack units does this transfer switch occupy?
The AP4434A has a 1U form factor, occupying one rack unit of vertical space in standard 19-inch racks. With dimensions of 1.73 inches high, 17.01 inches wide, and 9.29 inches deep, it provides power redundancy without consuming excessive rack space, making it ideal for high-density server environments.
What is included in the package with this automatic transfer switch?
The package includes the NetShelter Automatic Transfer Switch unit, mounting hardware, rack mounting brackets, and a serial configuration cable. These components provide everything needed for immediate installation in rack environments without requiring additional purchases for basic deployment.
What power capacity is listed for this UPS?
Power specifications help show where the unit fits best, including the type of load level, electrical environment, and backup role it is intended to support. These are usually the most decision-critical facts in a UPS or power-protection comparison.
What voltage details are listed?
The listed power specification is 208 V AC, which helps position the unit for the right load level and installation role.
