APC by Schneider Electric APDU11452SM APC NetShelter Rack PDU Advanced Gen 2 - Switched Metered Outlet - 3-Phase - 17. 3kW - 208V 60A - 42 Outlets
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This PDU operates on three-phase 208V power with a 60A input current, delivering 17.3kW of total power capacity across 42 individually controlled outlets. The advanced metering capability provides real-time power consumption data at the outlet level, enabling precise capacity planning and energy cost allocation.
The Live Swap Network Management Card 3 (NMC3) offers multiple management interfaces including web browser, SNMP, and command-line access. This allows integration with existing monitoring systems and supports remote power cycling of individual outlets to resolve equipment issues without physical access to the data center.
This section brings together practical product details such as PDU Type, Phase, Plug/Connector Type, Input Voltage, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
Enhanced cybersecurity features protect the management interface from unauthorized access, while EcoStruxure IT compatibility enables integration with broader data center management platforms. The included one-year subscription to Secure NMC3 System provides additional security monitoring and threat detection capabilities.
Intelligent Power Management
Individual outlet switching and metering enables precise control over power distribution, allowing administrators to power cycle specific equipment remotely and monitor energy consumption at the device level for accurate chargeback and capacity planning.
- Outlet-level power monitoring
- Remote reboot capability
- Energy usage reporting
Flexible Outlet Design
The 4-in-1 combination outlets accept C13, C15, C19, and C21 connectors interchangeably, reducing the need for multiple PDU types and adapters in mixed-equipment environments.
- Universal outlet compatibility
- Reduced adapter requirements
- Simplified cable management
Deployment / Use Cases

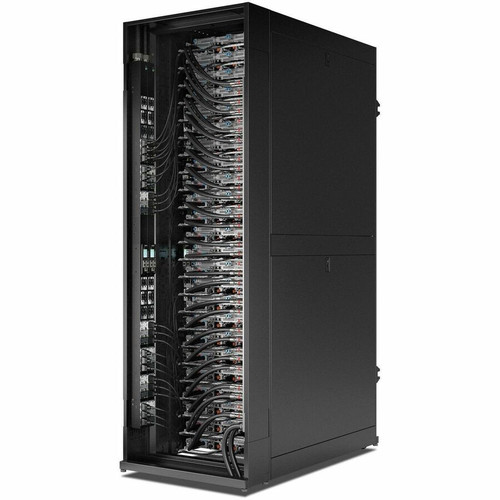

This PDU is specifically designed for IT equipment in server and network racks within data center environments. The vertical mounting orientation and side placement conserve valuable rack space while providing accessible power distribution for equipment throughout the cabinet height.
The 0U form factor mounts vertically in the rack without consuming equipment U-space, making it ideal for fully populated server cabinets where every rack unit is allocated to computing or networking equipment.
High-Density Server Racks
Ideal for AI training clusters, high-performance computing nodes, and virtualization hosts where precise power monitoring and individual outlet control are essential for managing energy consumption and equipment availability.
Data Center Power Distribution
Suitable for cabinet-level power distribution in enterprise data centers, colocation facilities, and cloud infrastructure where three-phase power and intelligent management are required for efficient operations.
Physical Profile
Designed for vertical mounting in standard 19-inch racks, this PDU features a slim 2.20-inch width that fits neatly in side-mounted configurations. The 70.08-inch height accommodates full-height server cabinets, while the minimal 2.95-inch depth ensures compatibility with shallow and deep rack designs alike.
The unit includes a 9.8-foot power cord for flexible installation options, and its 24.91-pound weight provides stability when mounted. The construction meets multiple environmental compliance standards including RoHS, REACH, and China RoHS for global deployment.
- Width
- 2.20" (55.88 mm)
- Depth
- 2.95" (74.93 mm)
- Height
- 0U
- Weight
- 24.91 lb (11298.99 g)
- Length
- 9.8 ft (3 m)
Highlights
- 17.3kW power capacity for high-density applications
- 42 individually switched and metered outlets
- Three-phase 208V 60A input power
- 4-in-1 combination outlets accept C13/C15/C19/C21 connectors
- Live Swap Network Management Card 3 with web, SNMP, and CLI access
- Enhanced cybersecurity features and EcoStruxure IT compatible
- 0U vertical rack mounting conserves equipment space
- One-year free subscription to Secure NMC3 System
- Remote outlet switching for equipment management
- Three-year limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | APDU11452SM |
| Brand Name | APC by Schneider Electric |
| Product Line | NetShelter |
| Product Name | NetShelter 42-Outlets PDU |
| Packaged Quantity | 1 |
| Product Type | PDU |
| Technical Information | |
| PDU Type | Switched,Metered-by-Outlet |
| Phase | Three Phase |
| Plug/Connector Type | IEC 60309 60A 3P+PE |
| Receptacle Type | IEC 60320 C13/C15/C19/C21,IEC 60320 C13/C15 |
| Receptacle Detail | 21 x IEC 60320 C13/C15/C19/C21,21 x IEC 60320 C13/C15 |
| Load Capacity (Watt) | 17.30 kW |
| Power Description | |
| Input Voltage | 208 V AC |
| Output Voltage | 208 V AC |
| Power Source | Power Supply |
| Input Current | 60 A |
| Management | |
| Management | NMC3 Web SNMP CLI |
| Remote Outlet Switching | Yes |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Physical Characteristics | |
| Mounting Orientation | Vertical |
| Mount Type | Rack-mountable |
| Form Factor | Rack |
| Placement | Side |
| Rack Height | 0U |
| Cord Length | 9.8 ft (3 m) |
| Height | 70.08" (1780.03 mm) |
| Width | 2.20" (55.88 mm) |
| Depth | 2.95" (74.93 mm) |
| Weight (Approximate) | 24.91 lb (11298.99 g) |
| Environmental Conditions | |
| Maximum Operating Temperature | 140°F (60°C) |
| Miscellaneous | |
| Application/Usage | IT Equipment,Server/Network Rack,Data Center |
| TAA Compliant | No |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),China Restriction of Hazardous Substances (China RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the power capacity of this APC NetShelter PDU?
This PDU has a total load capacity of 17.30 kilowatts (17,300 watts), making it suitable for high-density server racks and equipment clusters. The three-phase 208V 60A input power supports demanding applications including AI infrastructure and virtualization environments where substantial power distribution is required.
How many outlets does this rack PDU provide and what types are supported?
The unit provides 42 total outlets with a flexible configuration: 21 combination outlets that accept C13, C15, C19, and C21 connectors interchangeably, plus 21 additional outlets that accept C13 and C15 connectors. This design accommodates a wide range of server, storage, and networking equipment without requiring adapters.
What management capabilities does the NMC3 card provide?
The Live Swap Network Management Card 3 offers comprehensive management through web browser interface, SNMP protocol, and command-line access. It enables remote outlet switching for individual power control, real-time power monitoring at the outlet level, and integration with data center management systems. The enhanced cybersecurity features protect management access, and compatibility with EcoStruxure IT allows broader infrastructure monitoring.
How is this PDU mounted in a server rack?
This PDU is designed for vertical side mounting in standard 19-inch racks with a 0U form factor, meaning it doesn't consume any equipment U-space. The vertical orientation and side placement provide accessible power distribution throughout the cabinet height while conserving valuable rack space for computing and networking equipment.
What input power requirements does this PDU have?
The PDU requires three-phase 208V AC power with a 60A input current. This electrical configuration is standard in commercial and data center environments for efficient power distribution to high-density equipment. The output voltage matches the input at 208V AC, providing consistent power to connected devices.
What warranty and compliance standards apply to this product?
This APC NetShelter PDU comes with a three-year limited warranty from the manufacturer. It complies with multiple environmental standards including Restriction of Hazardous Substances (RoHS), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), and China Restriction of Hazardous Substances (China RoHS). The product is not TAA compliant and is rated for operation up to 140°F (60°C) maximum temperature.
What power capacity is listed for this UPS?
The listed power specification is 17.30 kW, which helps position the unit for the right load level and installation role.
How many outlets are available?
The product includes Yes, which helps buyers understand how many connected devices it can support in its intended deployment.
