APC by Schneider Electric APDU10452SM APC NetShelter Rack PDU Advanced - Switched Metered Outlet - 3-Phase 17. 3kW - 208V 60A - 42 Outlets - 0U Rack
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This switched PDU features comprehensive power management with active measurement capabilities. The unit accepts three-phase input power through an IEC 60309 60A 3P+PE connector, delivering stable 208V output across all 42 outlets. The input voltage range accommodates 200-240V AC variations while maintaining consistent output.
Network connectivity enables remote management through standard protocols, allowing administrators to monitor power consumption, control individual outlets, and receive alerts. The built-in metering provides real-time visibility into electrical parameters without requiring external measurement devices.
This section brings together practical product details such as PDU Type, Phase, Plug/Connector Type, Input Voltage, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The APC NetShelter PDU combines high-density power distribution with intelligent management features. The switched functionality allows individual outlet control for power cycling equipment remotely, reducing the need for physical access to the rack.
High-Density Outlet Configuration

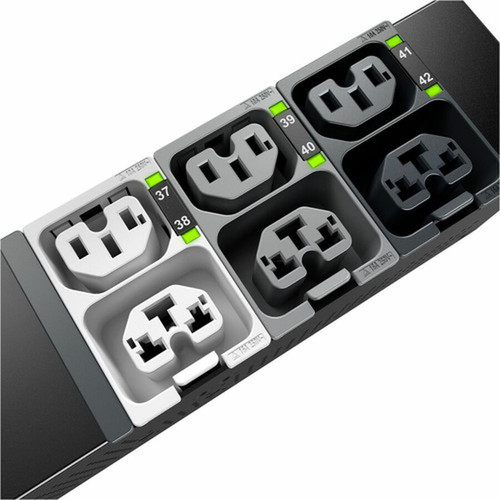

With 42 outlets supporting C13, C15, C19, and C21 connectors, this PDU accommodates mixed equipment types including servers, switches, storage arrays, and network appliances within a single rack.
- 21 x IEC 60320 C13/C15 outlets
- 21 x IEC 60320 C13/C15/C19/C21 outlets
- Supports power cords with various connector types
Advanced Monitoring Capabilities
The integrated metering and network management provide detailed power analytics and control options essential for modern data center operations.

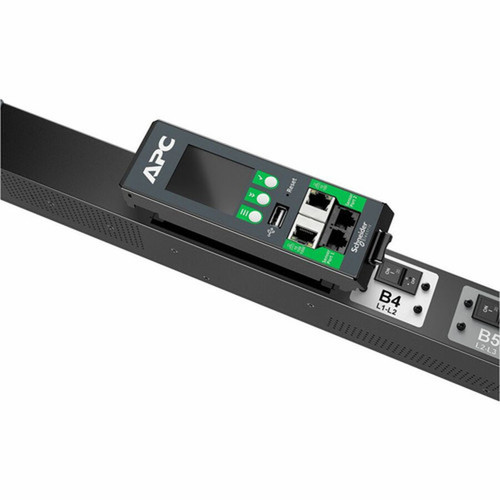

- Interactive LCD display for local monitoring
- Active power measurements (volts, amps, kW, kWh)
- Network management for remote access and control
Deployment / Use Cases
This 0U rack-mount PDU installs vertically in standard 19-inch racks, making efficient use of space while providing power distribution to the entire rack. The side placement and vertical orientation optimize airflow and cable management in dense server environments.
Ideal for data centers, server rooms, and network closets requiring reliable power distribution with management capabilities. The unit supports mixed IT equipment deployments where different power connector types are present, eliminating the need for multiple PDUs or adapter solutions.
Data Center Power Distribution
Deploy in server racks containing multiple devices requiring individual power control and monitoring. The three-phase input supports higher power demands than single-phase alternatives.
Network Equipment Racks
Power switches, routers, firewalls, and other network infrastructure with the ability to remotely reboot individual devices when needed for maintenance or troubleshooting.
Physical Profile
Designed for vertical mounting in standard 19-inch racks, this PDU features a slim 2.20-inch width that minimizes space consumption. The 70.08-inch height accommodates full-height rack installations while the 0U form factor preserves valuable rack space for equipment.
The black finish matches standard rack aesthetics, and the side placement facilitates clean cable routing. The unit includes a 5.9-foot input cord for flexible installation options relative to power sources.
- Width
- 2.20" (56 mm)
- Depth
- 2.95" (75 mm)
- Height
- 0U
- Weight
- 24.91 lb (11298.99 g)
- Length
- 5.9 ft (1.80 m)
Highlights
- 17.3kW power capacity for demanding rack deployments
- 42 outlets with mixed IEC 60320 receptacle types
- Three-phase 208V input with IEC 60309 60A connector
- Switched functionality for individual outlet control
- Interactive LCD display for local power monitoring
- Network management capabilities for remote access
- 0U rack-mount form factor with vertical orientation
- Active power measurements (volts, amps, kW, kWh)
- Compliant with TAA, RoHS, WEEE, and REACH regulations
- 3-year APC warranty for reliable performance
Specifications
| Specifications | |
|---|---|
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | APDU10452SM |
| Brand Name | APC by Schneider Electric |
| Product Line | NetShelter |
| Product Name | NetShelter 42-Outlets PDU |
| Product Type | PDU |
| Technical Information | |
| PDU Type | Switched |
| Phase | Three Phase |
| Plug/Connector Type | IEC 60309 60A 3P+PE |
| Receptacle Type | IEC 60320 C13/C15/C19/C21,IEC 60320 C13/C15 |
| Receptacle Detail | 21 x IEC 60320 C13/C15,21 x IEC 60320 C13/C15/C19/C21 |
| Power Description | |
| Input Voltage | 208 V |
| Input Voltage Range | 200 V AC - 240 V AC |
| Output Voltage | 208 V AC |
| Power Rating (VA) | 17.30 kVA |
| Power Rating (Watt) | 17.30 kW |
| Input Current | 60 A |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Mounting Orientation | Vertical |
| Form Factor | Rack |
| Placement | Side |
| Rack Height | 0U |
| Cord Length | 5.9 ft (1.80 m) |
| Height | 70.08" (1780 mm) |
| Width | 2.20" (56 mm) |
| Depth | 2.95" (75 mm) |
| Weight (Approximate) | 24.91 lb (11298.99 g) |
| Miscellaneous | |
| Country of Origin | India |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE),Restriction of Hazardous Substances (RoHS),China Restriction of Hazardous Substances (China RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the power capacity of this APC NetShelter PDU?
This PDU delivers 17.30 kVA (17.30 kW) of power capacity, supporting three-phase 208V input at 60A. This capacity handles demanding rack deployments with multiple servers, storage systems, and network equipment while providing headroom for future expansion.
How many outlets does this PDU provide and what types are they?
The unit provides 42 total outlets with mixed receptacle types: 21 IEC 60320 C13/C15 outlets and 21 IEC 60320 C13/C15/C19/C21 outlets. This configuration supports various equipment power cords including those with C13, C15, C19, and C21 connectors commonly found in data center environments.
What type of input power connection does this PDU require?
This PDU uses an IEC 60309 60A 3P+PE connector for three-phase input power. It operates at 208V with an input voltage range of 200-240V AC, making it compatible with standard three-phase power distribution systems found in commercial and data center facilities.
What management features does this switched PDU offer?
The APC NetShelter PDU includes full-featured network management capabilities allowing remote monitoring and control via standard network protocols. The interactive LCD display provides local visibility into power metrics including voltage, current, kilowatts, and kilowatt-hour consumption. Individual outlets can be switched remotely for power cycling equipment.
How is this PDU mounted in a rack and what space does it require?
This is a 0U rack-mount PDU designed for vertical installation in standard 19-inch racks. It mounts on the side of the rack with vertical orientation, measuring 70.08 inches in height, 2.20 inches in width, and 2.95 inches in depth. The 0U form factor preserves all rack space for equipment while providing full-height power distribution.
What environmental and regulatory compliance does this PDU meet?
This PDU is TAA compliant and meets multiple environmental regulations including RoHS, China RoHS, WEEE, and REACH. It's manufactured with environmentally friendly materials and processes, and the 3-year APC warranty ensures reliable performance in commercial and data center applications.
What power capacity is listed for this UPS?
The listed power specification is 17.30 kVA, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 208 V, which helps position the unit for the right load level and installation role.
