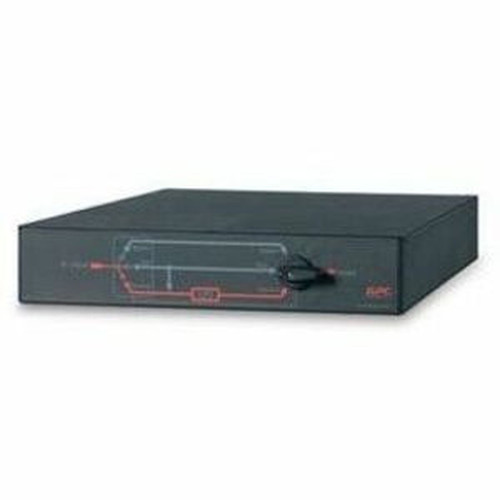

APC by Schneider Electric SBP3000 19" Rack Mountable 24A Maintenance Bypass Panel - 4. 80 kW - 100-230V AC - 2U - Hardwire
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This maintenance bypass panel delivers robust electrical performance with a 4.80 kW load capacity and dual current ratings of 24A and 30A. The hardwire 3-wire connection system provides a direct, low-resistance path for power, minimizing voltage drop and ensuring reliable operation under full load conditions.
Voltage flexibility is a key technical advantage, with the panel accepting input voltages of 100V, 120V, and 230V AC and delivering the same output voltages. This wide range compatibility makes the unit suitable for international deployments and mixed-voltage environments. The overload protection mechanism safeguards connected equipment from current spikes during maintenance operations.
This section brings together practical product details such as Plug/Connector Type, Receptacles, Protection Type, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
This bypass panel combines electrical reliability with practical installation features. The hardwire connections eliminate connector wear and provide superior current handling compared to plug-based systems. The RoHS compliance and environmentally friendly construction demonstrate APC's commitment to sustainable manufacturing practices while the 2-year limited warranty provides assurance of product quality and durability.
Safe Maintenance Operations
The integrated bypass switch enables technicians to perform UPS maintenance without powering down critical systems, eliminating downtime for servers, networking equipment, and other essential infrastructure.
- Isolates UPS for servicing
- Maintains continuous power flow
- Reduces maintenance windows
Rack-Optimized Design
With a standard 2U rack height and 19" width, the panel integrates seamlessly into existing rack infrastructure. The black finish matches typical data center aesthetics while the compact dimensions preserve valuable rack space.
- Standard 19" rack width
- 2U height efficiency
- Professional black finish
Deployment / Use Cases
The SBP3000 maintenance bypass panel serves organizations that require zero-downtime maintenance capabilities for their power protection systems. Its 30A maximum current rating makes it suitable for medium-density installations where multiple servers or networking devices share a single UPS.
Healthcare facilities, financial institutions, and manufacturing operations benefit from the panel's ability to maintain continuous power during UPS servicing. The hardwire installation provides permanent, reliable connections for environments where equipment moves infrequently but maintenance accessibility is essential.
Data Center UPS Maintenance
Install in server racks alongside Smart-UPS or Symmetra systems to enable safe maintenance procedures. The panel allows IT staff to service UPS batteries or components while critical servers and storage arrays remain powered and operational.
Network Infrastructure Protection
Deploy in network closets and telecom rooms to protect switches, routers, and communication equipment. The 100-230V AC compatibility supports global network deployments while the 4.80 kW capacity handles typical network gear power requirements.
Physical Profile
The panel features a compact 2U rack-mountable design with dimensions of 3.50" height, 17.01" width, and 25" depth (89 × 432 × 635 mm). This standard form factor fits seamlessly into 19" server racks while the 26.46 lb (12002.05 g) weight ensures stable mounting without requiring additional support. The black finish provides a professional appearance that blends with typical data center equipment.
- Width
- 17.01" (432 mm)
- Depth
- 25" (635 mm)
- Height
- 2U
- Weight
- 26.46 lb (12002.05 g)
What's in the Box
The package includes all necessary components for immediate installation and operation.
Highlights
- 4.80 kW load capacity for medium-density power requirements
- Supports 24A and 30A current ratings for flexible deployment
- 100V, 120V, and 230V AC input/output voltage compatibility
- Hardwire 3-wire connections for secure, reliable power transfer
- 2U rack-mountable form factor saves valuable rack space
- Integrated bypass switch enables safe UPS maintenance
- Overload protection safeguards connected equipment
- RoHS compliant and environmentally friendly construction
- 2-year limited warranty for peace of mind
- Black finish matches standard data center aesthetics
Specifications
| Specifications | |
|---|---|
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SBP3000 |
| Brand Name | APC by Schneider Electric |
| Product Name | 19" Rack Mountable 24A Maintenance Bypass Panel |
| Packaged Quantity | 1 Each |
| Product Type | Bypass Switch |
| Technical Information | |
| Plug/Connector Type | Hard Wire 3-wire |
| Receptacles | 1 x Hard Wire 3-wire (H+N+E) |
| Protection Type | Overload |
| Power Description | |
| Load Capacity (VA) | 4.80 kW |
| Input Voltage | 100 V AC,120 V AC,230 V AC |
| Output Voltage | 100 V AC,120 V AC,230 V AC |
| Current | 24 A,30 A |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| Height | 3.50" (89 mm) |
| Width | 17.01" (432 mm) |
| Depth | 25" (635 mm) |
| Weight (Approximate) | 26.46 lb (12002.05 g) |
| Miscellaneous | |
| Package Contents | 19" Rack Mountable 24A Maintenance Bypass Panel Installation guide Rack mounting brackets User manual |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What is the maximum load capacity of the APC SBP3000 bypass panel?
The APC SBP3000 maintenance bypass panel supports a maximum load capacity of 4.80 kW. This capacity makes it suitable for protecting medium-density server racks, network equipment clusters, and other critical infrastructure that requires continuous power during UPS maintenance operations.
What input and output voltages does this bypass panel support?
This panel is compatible with 100V AC, 120V AC, and 230V AC input voltages and delivers the same output voltages. This wide voltage range allows deployment in various regions and electrical standards without requiring additional voltage conversion equipment.
How is the bypass panel installed in a rack?
The panel features a standard 19" rack-mountable design with a 2U height. Installation uses the included rack mounting brackets, and the unit occupies 3.50" of vertical rack space. The 17.01" width and 25" depth dimensions fit typical server rack configurations while the 26.46 lb weight ensures stable mounting.
What type of electrical connections does the panel use?
The SBP3000 utilizes hardwire 3-wire connections for both input and output. This connection method provides secure, low-resistance power transfer compared to plug-based systems and includes one hard wire 3-wire receptacle (H+N+E) for reliable installation.
How does the bypass switch function during UPS maintenance?
The integrated bypass switch allows technicians to isolate the connected UPS system for servicing while maintaining continuous power flow to critical equipment. This enables battery replacement, component repairs, or system upgrades without interrupting power to servers, networking gear, or other essential devices.
What protection features does the bypass panel include?
The panel includes overload protection to safeguard connected equipment during maintenance operations. This protection mechanism helps prevent damage from current spikes or electrical faults that could occur when bypassing the UPS system for servicing.
What power capacity is listed for this UPS?
The listed power specification is 4.80 kW, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 100 V AC,120 V AC,230 V AC, which helps position the unit for the right load level and installation role.
