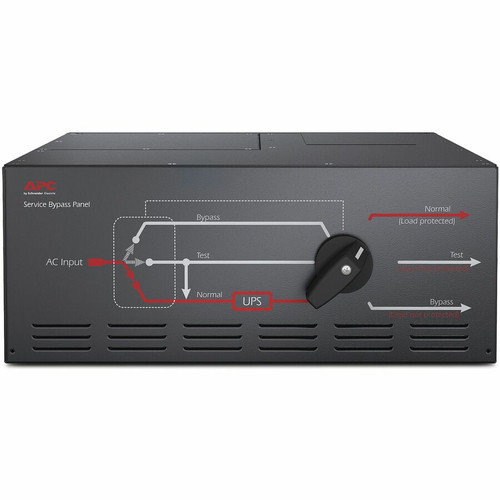

APC Service Bypass Panel 200/208/240V 125A HW input (2) L6-30R (4) L6-20R output - 1 x Hard Wire 3-wire (2PH + G) - 20 kW - 200 V AC, (SBP20KRMT4U)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- Bypass Panel
- Installation guide
- Rack mounting brackets
- User manual
- InfraStruXure Type A
- Smart-UPS
- Symmetra UPS
Plug/Connector Type: Hard Wire 3-wire (2PH + G)
Receptacles: 1 x Hard Wire 3-wire (2PH + G)
Protection Type: Overload
Load Capacity (VA): 20 kW
Input Voltage: 200 V AC,208 V AC,240 V AC
Output Voltage: 200 V AC,208 V AC,240 V AC
Current: 125 A
Color Family: Black
Product Color: Black
Form Factor: Rack-mountable
Rack Height: 4U
Height: 7.01" (178 mm)
Width: 17.01" (432 mm)
Depth: 22.52" (572 mm)
Weight (Approximate): 41.40 lb (18778.72 g)
Package Contents:
Compatibility:
APC Products:
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Limited Warranty: 2 Year
- APC Service Bypass Panel 200/208/240V 125A HW input (2) L6-30R (4) L6-20R output
- Extremely reliable service bypass panels designed for APC InfraStruXure Type A, Smart-UPS, and Symmetra UPS products.
- Includes : Installation Guide , Rack Mounting Brackets , User Manual
[custom-specifications]
| Specifications | |
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SBP20KRMT4U |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Brand Name | APC by Schneider Electric |
| Product Name | Bypass Panel |
| Product Type | Bypass Panel |
| Technical Information | |
| Plug/Connector Type | Hard Wire 3-wire (2PH + G) |
| Receptacles | 1 x Hard Wire 3-wire (2PH + G) |
| Protection Type | Overload |
| Power Description | |
| Load Capacity (VA) | 20 kW |
| Input Voltage | 200 V AC,208 V AC,240 V AC |
| Output Voltage | 200 V AC,208 V AC,240 V AC |
| Current | 125 A |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Rack-mountable |
| Rack Height | 4U |
| Height | 7.01" (178 mm) |
| Width | 17.01" (432 mm) |
| Depth | 22.52" (572 mm) |
| Weight (Approximate) | 41.40 lb (18778.72 g) |
| Miscellaneous | |
| Package Contents | |
| Compatibility | APC Products:
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Warranty | |
| Limited Warranty | 2 Year |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Additional-pdf1
[/custom-user-manual]
