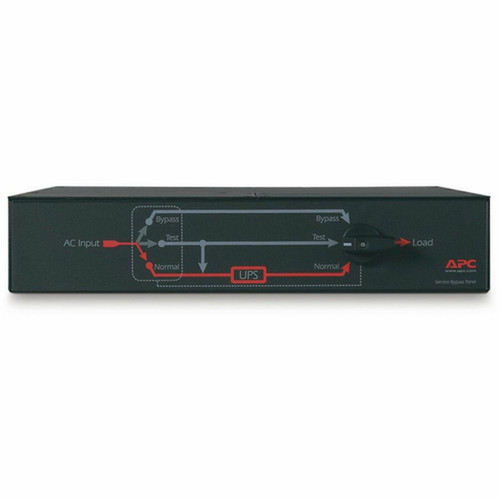

APC by Schneider Electric SBP5000RMT2U APC 19" Rack-Mountable 24A Maintenance Bypass Panel - 5 kW - 200/208V AC - 2U - Black
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This maintenance bypass panel delivers 5 kW of power capacity with a 24 A current rating, suitable for demanding applications. It operates at 200/208V AC input and output voltages, compatible with standard three-phase power systems.
The unit includes overload protection to safeguard connected equipment from electrical faults. Its NEMA L6-30P plug connector and multiple output receptacles ensure secure and versatile power connections. The 2U rack-mountable design integrates seamlessly into existing infrastructure.
This section brings together practical product details such as Plug/Connector Type, Receptacles, Protection Type, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
This APC bypass panel offers reliable power management with features that prioritize safety and flexibility. Its robust construction and compliance with RoHS standards ensure environmental responsibility and durability.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Safe Maintenance Bypass, High-Capacity Power Distribution.
Safe Maintenance Bypass
The integrated bypass switch enables maintenance without power interruption, enhancing operational continuity and safety during servicing.
High-Capacity Power Distribution
With 5 kW capacity and 24 A rating, this panel supports high-power equipment in data centers and server rooms efficiently.
Deployment / Use Cases
Deploy the APC SBP5000RMT2U in environments where power continuity is critical. Its rack-mountable form factor makes it perfect for organized installations in racks or cabinets.
Use this panel to manage power for high-demand equipment such as servers, storage arrays, and networking devices. The bypass functionality allows technicians to perform maintenance without shutting down connected systems, minimizing downtime.
This section brings together practical product details such as Plug/Connector Type, Receptacles, Protection Type, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Data Center Power Management
Ideal for data centers requiring uninterrupted power during maintenance, this panel ensures continuous operation of servers and networking gear.
Server Room Upgrades
Suitable for server rooms needing reliable power distribution with safe bypass capabilities for routine maintenance and equipment swaps.
Physical Profile
This bypass panel features a black finish and measures 3.50" (89 mm) in height, 17.01" (432 mm) in width, and 25.98" (660 mm) in depth. With a weight of approximately 30.07 lb (13639.52 g), it is designed for stable rack mounting. The 2U rack height ensures compatibility with standard 19" racks, optimizing space utilization in tight environments.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 2U, 17.01" (432 mm), 25.98" (660 mm), 30.07 lb (13639.52 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 17.01" (432 mm)
- Depth
- 25.98" (660 mm)
- Height
- 2U
- Weight
- 30.07 lb (13639.52 g)
What's in the Box
The package includes all necessary components for installation and operation.
Package contents include 19" Rack Mountable 24A Maintenance Bypass Panel Installation guide Rack mounting brackets User manual, 19" Rack Mountable 24A Maintenance Bypass Panel. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- 5 kW load capacity for high-power applications
- 24 A current rating supports demanding equipment
- 200/208V AC input and output voltage compatibility
- 2U rack-mountable design saves space in data centers
- Includes bypass switch for safe maintenance without power interruption
- Features 2 x NEMA L6-30R and 2 x NEMA L6-20R output connectors
- Overload protection ensures equipment safety
- RoHS compliant for environmental responsibility
- Black finish matches standard rack aesthetics
- Includes installation guide and mounting brackets
Specifications
| Specifications | |
|---|---|
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SBP5000RMT2U |
| Brand Name | APC by Schneider Electric |
| Product Name | 19" Rack Mountable 24A Maintenance Bypass Panel |
| Packaged Quantity | 1 Each |
| Product Type | Bypass Panel |
| Technical Information | |
| Plug/Connector Type | NEMA L6-30P |
| Receptacles | 2 x NEMA L6-20R,2 x NEMA L6-30R |
| Protection Type | Overload |
| Power Description | |
| Load Capacity (VA) | 5 kW |
| Input Voltage | 200 V AC,208 V AC |
| Output Voltage | 200 V AC,208 V AC |
| Current | 24 A |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| Height | 3.50" (89 mm) |
| Width | 17.01" (432 mm) |
| Depth | 25.98" (660 mm) |
| Weight (Approximate) | 30.07 lb (13639.52 g) |
| Miscellaneous | |
| Package Contents | 19" Rack Mountable 24A Maintenance Bypass Panel Installation guide Rack mounting brackets User manual |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
