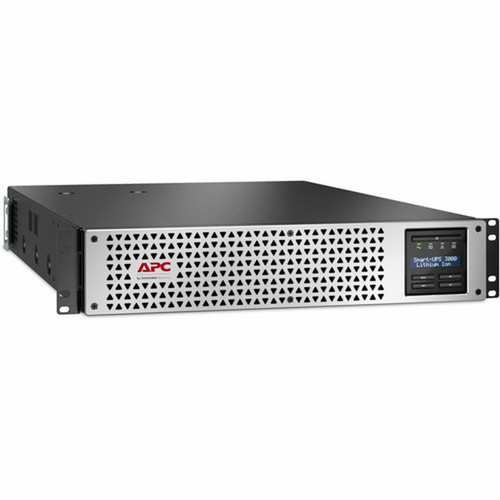

APC by Schneider Electric SMTL3KRM2UCL APC Smart-UPS 3kVA Rackmount 2U UPS - 2880VA/2700W - Lithium-ion - 120V - 1x L5-30R + 6 x 5-20R Outlets - LCD
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The Smart-UPS 3kVA operates as a line-interactive UPS with automatic voltage regulation, maintaining output voltage at 120V AC within an input range of 75-154V AC. It delivers pure sine wave output at 60Hz with a fast 10ms transfer time, ensuring clean power for sensitive electronics. The unit includes comprehensive surge protection with 459 joules of energy rating and supports single-phase power distribution.
Power management is facilitated through multiple interface options including serial, USB, and EPO (Emergency Power Off) ports, enabling integration with monitoring software and safety systems. The LCD display provides real-time status information, while LED indicators offer at-a-glance monitoring of line, battery, and overload conditions. Environmental specifications include operation up to 104°F (40°C) with thermal dissipation of 348 BTU/h and sound emission of 55 dB.
This section brings together practical product details such as AVR, Plug/Connector Type, Receptacle Type, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The lithium-ion battery technology represents a significant advancement over traditional lead-acid batteries, offering a 10-year expected lifespan that typically exceeds the operational life of the UPS itself. This eliminates the need for periodic battery replacements during normal deployment, reducing total cost of ownership and maintenance downtime. The battery provides 1209.6 kJ of energy storage, supporting critical loads during power events.
SmartConnect Remote Monitoring
Cloud-based power monitoring via the integrated Ethernet port enables remote management, alerting, and historical reporting without additional hardware. This provides IT administrators with visibility into power conditions and UPS status from anywhere.
- Cloud-based management
- Remote alerting
- Historical reporting
- No additional hardware required
Comprehensive Protection
The UPS delivers multiple layers of protection including automatic voltage regulation, surge suppression, and pure sine wave output to safeguard sensitive equipment from power anomalies that can cause data loss or hardware damage.
- Automatic voltage regulation
- Surge suppression
- Pure sine wave output
- Fast transfer switching
Deployment / Use Cases
The 2U rackmount form factor makes this UPS ideal for deployment in standard 19-inch server racks within data centers, network infrastructure closets (IDF/MDF), and edge computing environments. Its compact height preserves valuable rack space while providing substantial power capacity for critical loads.
Primary applications include protection for small to medium server installations, network infrastructure (routers, switches, hubs), virtualization platforms, hyperconverged infrastructure (HCI), point-of-sale systems, and business-critical computing equipment. The outlet configuration supports mixed equipment types, with the L5-30R receptacle handling higher-power devices while the six 5-20R outlets accommodate standard IT equipment.
Network Infrastructure Protection
Deploy in network closets to protect routers, switches, and communication equipment, ensuring network availability during power events that could disrupt business operations.
- Router protection
- Switch backup
- Network availability
- Communication equipment
Server & Virtualization Support
Provide runtime for graceful shutdown of physical servers, virtual machines, and hyperconverged infrastructure using PowerChute Serial Shutdown software via serial or USB connections.
- Server shutdown protection
- VM protection
- HCI support
- Graceful shutdown capability
Physical Profile

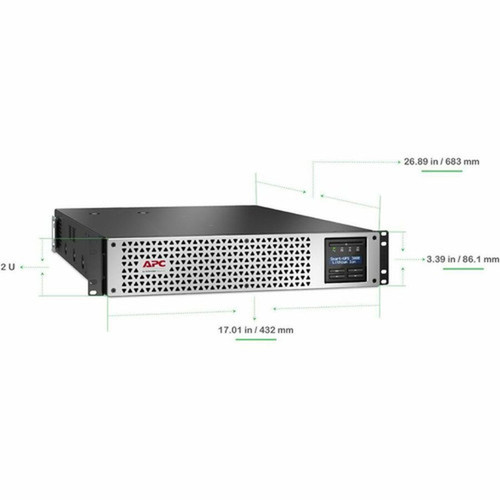

The UPS features a black and silver finish with dimensions of 3.39" (86 mm) height, 17.01" (432 mm) width, and 26.89" (683 mm) depth, occupying exactly 2U of rack space. The 75.44 lb weight includes the integrated lithium-ion battery, with rack mounting brackets and support rails included for secure installation. The front-panel LCD display and status indicators provide clear operational feedback while maintaining a professional appearance in rack environments.
- Width
- 17.01" (432 mm)
- Depth
- 26.89" (683 mm)
- Height
- 3.39" (86 mm)
- Weight
- 75.44 lb (34219.01 g)
- Length
- 8 ft (2.44 m)
What's in the Box
The package includes all necessary components for immediate deployment:
Highlights
- 2880VA/2700W line-interactive UPS with pure sine wave output
- Lithium-ion battery with 10-year expected lifespan minimizes replacement needs
- 2U rackmount form factor for space-efficient deployment in standard server racks
- Cloud-based remote monitoring via SmartConnect Ethernet port
- Graceful shutdown capability using PowerChute Serial Shutdown software

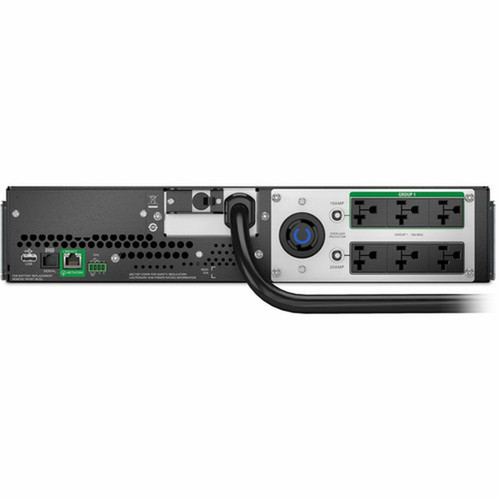

- 1x NEMA L5-30R and 6x NEMA 5-20R outlets for mixed equipment support
- 5-year comprehensive warranty covering both UPS and battery
- Automatic voltage regulation (AVR) maintains stable output voltage
- LCD display with real-time status monitoring and configuration
- Energy Star certified for energy efficiency
Specifications
| Specifications | |
|---|---|
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SMTL3KRM2UCL |
| Brand Name | APC by Schneider Electric |
| Product Line | Smart-UPS |
| Product Name | Smart-UPS 3kVA Rack-mountable UPS |
| Packaged Quantity | 1 |
| Product Type | Line-interactive UPS |
| Technical Information | |
| AVR | Yes |
| Plug/Connector Type | NEMA L5-30P |
| Receptacle Type | NEMA L5-30P |
| Receptacle Detail | 1 x NEMA L5-30R,6 x NEMA 5-20R |
| Cord Length | 8 ft (2.44 m) |
| Transfer Time | 10 ms |
| Phase | Single Phase |
| Application/Usage | IT,Network,Business,Critical System,Server,Virtual Machine,Hyperconverged Infrastructure (HCI),POS,Router,Switch,Hub |
| Power Description | |
| Load Capacity (VA) | 2.88 kVA |
| Load Capacity (Watt) | 2.70 kW |
| Input Voltage | 120 V AC |
| Input Voltage Range | 75 V AC - 154 V AC,82 V AC - 143 V AC |
| Output Voltage | 120 V AC |
| Input Frequency | 60 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 459 J |
| Input Power Factor | 0.9 |
| Display & Graphics | |
| Display | LCD/LED |
| Management | |
| Alarm | On Battery,Low Battery,Overload |
| Controls/Indicators | |
| Status Indicators | LED Indicators: On Line On Battery Replace Battery Overload |
| Interfaces/Ports | |
| Serial Port | Yes |
| USB | Yes |
| EPO Port | Yes |
| Battery Information | |
| Number of Batteries | 1 |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Battery Energy | 1209.6 kJ |
| Backup/Run Time (Full Load) | 5.30 Minute |
| Backup/Run Time (Half Load) | 11.40 Minute |
| Battery Life | 10 Year |
| Typical Battery Recharge Time | 2 Hour |
| Environmental Conditions | |
| Maximum Operating Elevation | 10000 ft (3048000 mm) |
| Maximum Storage Elevation | 50000 ft (15240000 mm) |
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
| Storage Relative Humidity | 95% |
| Maximum Operating Temperature | 104°F (40°C) |
| Sound Emission | 55 dB |
| Thermal Dissipation | 348 BTU/h |
| Physical Characteristics | |
| Product Color | Black,Silver |
| Height | 3.39" (86 mm) |
| Width | 17.01" (432 mm) |
| Depth | 26.89" (683 mm) |
| Rack Height | 2U |
| Form Factor | Rack-mountable |
| Weight (Approximate) | 75.44 lb (34219.01 g) |
| Miscellaneous | |
| Package Contents | Smart-UPS 3kVA Rack-mountable UPS Rack Mounting brackets Rack Mounting support rails Washer Ethernet patch cable Screw |
| Software Included | Powerchute Serial Edition |
| Energy Star | Yes |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
What is the power capacity of this UPS?
The APC Smart-UPS 3kVA provides 2880VA (2.88 kVA) and 2700W of power capacity. This rating indicates the maximum load the UPS can support while maintaining battery runtime specifications. The unit operates at 120V input and output voltage with automatic voltage regulation to maintain stable power delivery to connected equipment.
How long does the battery last during a power outage?
At full load (2700W), the lithium-ion battery provides approximately 5.3 minutes of runtime. At half load (1350W), runtime extends to approximately 11.4 minutes. These runtime figures allow sufficient time for connected systems to perform graceful shutdowns or continue operating through brief power interruptions. The battery typically recharges within 2 hours after a discharge event.
What type of battery does this UPS use?
This UPS utilizes a lithium-ion (Li-Ion) battery with an expected lifespan of 10 years under normal operating conditions. Lithium-ion technology offers advantages over traditional lead-acid batteries including longer life, reduced maintenance, and typically no need for replacement during the UPS's operational lifetime. The battery provides 1209.6 kJ of energy storage capacity.
What outlets are available on this UPS?
The outlet configuration includes one NEMA L5-30R receptacle and six NEMA 5-20R receptacles. The L5-30R supports higher-power equipment with 30-amp capacity, while the six 5-20R outlets accommodate standard 20-amp devices. This mixed configuration allows support for both specialized and general IT equipment within the same UPS deployment.
How do I monitor and manage this UPS remotely?
Remote management is available through the SmartConnect Ethernet port, which enables cloud-based monitoring, alerting, and historical reporting without additional hardware. For local management, the UPS includes serial and USB ports for connection to PowerChute Serial Shutdown software, which facilitates graceful shutdown of connected systems. The front-panel LCD display provides real-time status information and configuration options.
What is included in the warranty coverage?
The APC Smart-UPS 3kVA comes with a 5-year comprehensive warranty that covers both the UPS unit and the integrated lithium-ion battery. This warranty provides protection against defects in materials and workmanship under normal use. The product also meets Restriction of Hazardous Substances (RoHS) environmental compliance standards and is Energy Star certified for energy efficiency.
What power capacity is listed for this UPS?
The listed power specification is 2.88 kVA, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 120 V AC, which helps position the unit for the right load level and installation role.
