APC by Schneider Electric SMT3000RMI2U Smart-UPS - 3kVA Line Interactive Rackmount UPS - 230V - 2U - 12 Outlets - AVR - LCD
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This Smart-UPS model employs line-interactive topology with sine wave output, ensuring compatibility with sensitive server power supplies and network gear. The 3 kVA/2.70 kW capacity provides substantial headroom for multiple rack-mounted devices, while the 230V operation matches standard European power infrastructure.
Battery management includes hot-swappable, spill-proof lead-acid batteries that can be replaced without powering down connected equipment. The system offers 3 minutes of runtime at full load and 11 minutes at half load, with a typical 3-hour recharge time. Integrated surge protection provides 320 joules of energy absorption for additional equipment safety.
This section brings together practical product details such as Plug/Connector Type, Receptacle Detail, Number of Battery & Surge Outlets, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The SMT3000RMI2U combines substantial power protection with rack-optimized design for IT environments where space and reliability are paramount. Its comprehensive feature set addresses both immediate power events and long-term equipment protection needs.
Rack-Optimized Design
The 2U form factor maximizes rack space efficiency while supporting substantial power capacity. Pre-installed mounting rails simplify deployment in standard 19-inch racks.
- 2U rack height
- 19-inch rack compatible
- Includes mounting rails
Comprehensive Outlet Configuration

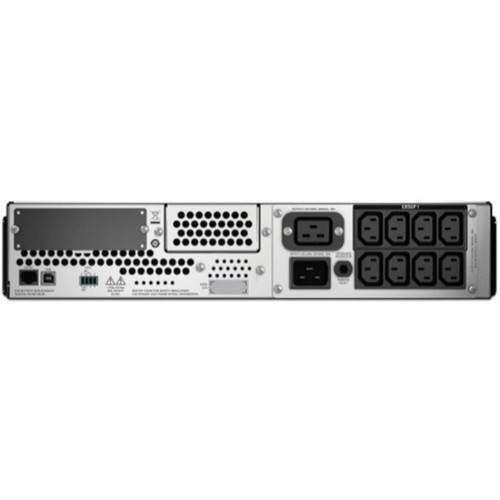

Twelve total outlets provide flexibility for connecting various server and network equipment, with IEC C13 and C19 connectors supporting different power cord requirements.
- 8 x IEC C13 outlets
- 1 x IEC C19 outlet
- 3 x IEC jumper outlets
Advanced Management Capabilities
Serial and USB connectivity enable remote monitoring and management through APC software, while the front-panel LCD provides real-time status and configuration access.
- Serial port for legacy systems
- USB for modern management
- LCD for local monitoring
Deployment / Use Cases
This 3 kVA rackmount UPS is engineered for environments where uninterrupted operation is critical. Its 230V operation makes it particularly suitable for European data centers, international branch offices, and facilities with single-phase power distribution.
Typical applications include protecting rack-mounted servers, network switches, storage arrays, and telecommunications equipment. The unit's substantial capacity allows it to support multiple devices simultaneously, making it ideal for consolidated rack deployments where space efficiency matters.
This section brings together practical product details such as Plug/Connector Type, Receptacle Detail, Number of Battery & Surge Outlets, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Server Rack Protection
Provide battery backup for 1-2 rack servers and associated networking equipment, ensuring graceful shutdowns during extended outages and protection against damaging power events.
Network Infrastructure Support
Maintain connectivity for switches, routers, and firewalls during power disturbances, preventing network downtime and data loss in critical communications paths.
Physical Profile
Designed for standard 19-inch racks, this UPS occupies 2U of vertical space with dimensions of 3.39" (86.11 mm) height, 18.90" (480.06 mm) width, and 26.89" (683.01 mm) depth. The 97.62 lb weight reflects its substantial battery capacity and robust construction for rack stability. The front panel features an LCD display for status monitoring and configuration, with management ports conveniently accessible for integration with monitoring systems.
- Width
- 18.90" (480.06 mm)
- Depth
- 26.89" (683.01 mm)
- Height
- 3.39" (86.11 mm)
- Weight
- 97.62 lb (44279.69 g)
- Length
- 6.6 ft (2 m)
What's in the Box
The package includes all necessary components for immediate deployment and management of the UPS system.
Highlights
- 3 kVA/2.70 kW power capacity for substantial equipment protection
- 2U rackmount form factor optimizes data center space
- 230V input/output voltage for European and international markets
- 12 total outlets with IEC C13 and C19 connectors
- Line interactive topology with sine wave output
- Hot-swappable, spill-proof lead-acid batteries
- 3 minutes runtime at full load, 11 minutes at half load
- Serial and USB ports for comprehensive management
- Front-panel LCD for real-time status monitoring
- 3-year UPS warranty with 2-year battery coverage
Specifications
| Specifications | |
|---|---|
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SMT3000RMI2U |
| Brand Name | APC by Schneider Electric |
| Product Line | Smart-UPS |
| Product Model | SMT3000RMI2U |
| Product Name | Smart-UPS 3000VA Rack-mountable UPS |
| Product Type | Line-interactive UPS |
| Technical Information | |
| Plug/Connector Type | British BS1363A,SCHUKO CEE 7 EU1-16P,IEC 320-C20 |
| Receptacle Detail | 8 x IEC 320-C13,1 x IEC 320-C19,3 x IEC Jumper |
| Number of Battery & Surge Outlets | 12 |
| Cord Length | 6.6 ft (2 m) |
| Phase | Single Phase |
| Power Description | |
| Load Capacity (VA) | 3 kVA |
| Load Capacity (Watt) | 2.70 kW |
| Input Voltage | 230 V |
| Output Voltage | 230 V AC |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 320 J |
| Interfaces/Ports | |
| Serial Port | Yes |
| USB | Yes |
| Battery Information | |
| Battery Characteristics | Spill-proof, Maintenance-free |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 3 Minute |
| Backup/Run Time (Half Load) | 11 Minute |
| Hot Swappable | Yes |
| Typical Battery Recharge Time | 3 Hour |
| Physical Characteristics | |
| Height | 3.39" (86.11 mm) |
| Width | 18.90" (480.06 mm) |
| Depth | 26.89" (683.01 mm) |
| Rack Height | 2U |
| Form Factor | Rack-mountable |
| Weight (Approximate) | 97.62 lb (44279.69 g) |
| Miscellaneous | |
| Package Contents | USB cable Country-specific detachable power cord Documentation CD Installation guide Rack Mounting support rails Smart UPS signalling RS-232 cable Temperature Probe |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | UPS: 36 month(s)|Battery: 24 month(s) |
User Manual
FAQ
What is the power capacity of this APC Smart-UPS?
This Smart-UPS provides 3 kVA (3000 VA) of apparent power and 2.70 kW (2700 watts) of real power capacity. This substantial capacity can support multiple rack-mounted servers, network switches, and storage devices simultaneously during power events.
How long will this UPS run on battery power?
At full 2.70 kW load, the UPS provides approximately 3 minutes of runtime. At half load (1.35 kW), runtime extends to approximately 11 minutes. These times allow for graceful shutdowns of connected equipment or continuation of operations during brief outages.
What type of outlets does this rackmount UPS have?
The unit features 12 total outlets: 8 IEC C13 outlets, 1 IEC C19 outlet, and 3 IEC jumper outlets. This configuration supports various server and network equipment power cords commonly used in rack environments.
Is this UPS compatible with 230V power systems?
Yes, this Smart-UPS is designed for 230V operation with both input and output at 230V. It accepts 230V input power and delivers 230V output to connected equipment, making it suitable for European and other markets using 230V infrastructure.
What management options are available for this UPS?
The UPS includes both serial and USB ports for connectivity to management systems. These interfaces allow monitoring, configuration, and automated shutdown through APC power management software. The front-panel LCD provides local status display and basic configuration access.
Are the batteries in this UPS hot-swappable?
Yes, the lead-acid batteries are hot-swappable, meaning they can be replaced without powering down connected equipment. This feature minimizes downtime during battery maintenance or replacement cycles in critical environments.
What power capacity is listed for this UPS?
The listed power specification is 3 kVA, which helps position the unit for the right load level and installation role.
How many outlets are available?
The product includes 12, which helps buyers understand how many connected devices it can support in its intended deployment.
