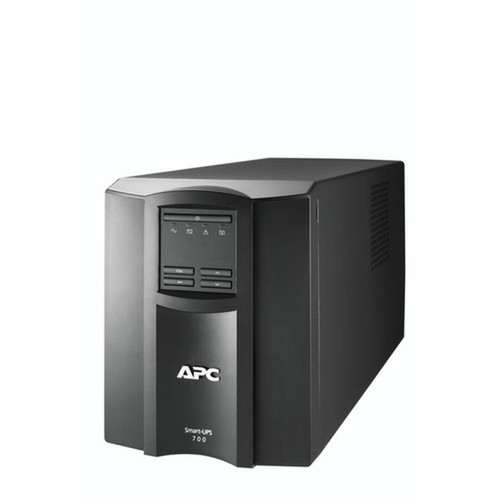

APC by Schneider Electric SMT700X167 APC Smart-UPS 700VA/450W Tower UPS - Line Interactive - 8x NEMA 5-15R Outlets - AVR - Pure Sine Wave - 120V
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This Smart-UPS model operates on 120V input and output, delivering a clean sine wave at 60Hz with a fast 10ms transfer time. It includes built-in Automatic Voltage Regulation to correct minor utility voltage fluctuations without switching to battery, extending runtime and reducing wear. The unit incorporates an EMI/RFI noise filter and offers a 540-joule surge energy rating for additional protection against transient spikes.
Management capabilities are enhanced through a serial port and a USB HID-compliant port, compatible with APC's PowerChute Business Edition software for graceful shutdowns, monitoring, and reporting. The LCD display provides real-time bar-graph indicators for load, battery status, and system conditions, while audible alarms alert users to events such as on-battery operation or overloads.
This section brings together practical product details such as AVR, Plug/Connector Type, Receptacle Type, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The Smart-UPS 700VA Tower stands out with its combination of capacity, manageability, and physical design tailored for business continuity. Its eight outlets support multiple devices, while the tower form factor allows flexible placement without rack requirements.
Automatic Voltage Regulation
Corrects brownouts and overvoltages from 97V to 147V without draining the battery, ensuring stable power delivery and prolonging battery life during minor grid fluctuations.
- Extends battery runtime
- Reduces frequent battery cycles
- Maintains output quality
Management & Monitoring
Serial and USB ports enable integration with PowerChute software for automated shutdowns, event logging, and remote management, critical for unattended servers and network gear.
- Graceful shutdown capability
- Real-time status alerts
- Compatible with business power management
Serviceable Design
Features a user-replaceable battery with a typical 5-year life and 3-hour recharge time, supported by a clear battery replacement indicator to simplify maintenance.
- Hot-swappable battery
- 5-year typical battery life
- 3-hour recharge time
Deployment / Use Cases
This UPS is engineered for environments where power quality and uptime directly impact operations. Its 700VA/450W capacity makes it suitable for protecting a mix of equipment in small server rooms, network closets, or point-of-sale setups.
In retail or office settings, it can support POS terminals, VoIP phones, and desktop computers, while in IT infrastructure roles, it provides backup for network switches, storage devices, and entry-level servers during outages or brownouts.
Small Server & Network Protection
Ideal for single servers, NAS units, or network switches in branch offices or small businesses, offering enough runtime for orderly shutdowns or brief outages.
Business VoIP & Desktop Support
Supports VoIP phone systems and critical desktops, ensuring communication and productivity continuity during power disturbances with its pure sine wave output.
Physical Profile
The tower design measures 8.62" (219 mm) in height, 5.43" (138 mm) in width, and 17.28" (439 mm) in depth, with a weight of approximately 43.43 lb (19.7 kg). Its compact footprint allows placement under desks, on shelves, or in network cabinets, while the black finish blends with office equipment. The unit includes a 6-foot power cord for flexible installation.
- Width
- 5.43" (138 mm)
- Depth
- 17.28" (439 mm)
- Height
- 8.62" (219 mm)
- Weight
- 45 dB(A)
- Length
- 6 ft (1.83 m)
What's in the Box
The package includes the Smart-UPS 700VA Tower UPS unit and a user manual for setup and reference.
Package contents include Smart-UPS 700VA Tower UPS User Manual, Smart-UPS 700VA Tower UPS. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- 700VA/450W line-interactive tower UPS with pure sine wave output
- Eight NEMA 5-15R outlets for connecting multiple devices
- Automatic Voltage Regulation corrects utility voltage without battery drain
- Serial and USB ports for management with PowerChute Business Edition software
- LCD display with load and battery bar-graph indicators
- User-replaceable lead-acid battery with 5-year typical life
- 3-hour typical battery recharge time
- Tower form factor with compact dimensions for flexible placement
- EMI/RFI noise filtering and 540-joule surge protection
- 3-year UPS warranty with 2-year battery warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SMT700X167 |
| Brand Name | APC by Schneider Electric |
| Product Line | Smart-UPS |
| Product Name | Smart-UPS 700VA Tower UPS |
| Product Type | Line-interactive UPS |
| Technical Information | |
| AVR | Yes |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15P |
| Receptacle Detail | 8 x NEMA 5-15R |
| Number of Battery & Surge Outlets | 8 |
| Cord Length | 6 ft (1.83 m) |
| Transfer Time | 10 ms |
| EMI/RFI Noise Filter | Yes |
| Application/Usage | IT,Network,Critical System,Server |
| Power Description | |
| Load Capacity (VA) | 700 VA |
| Load Capacity (Watt) | 450 W |
| Input Voltage | 120 V |
| Output Voltage | 120 V AC |
| Input Frequency | 60 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 540 J |
| Management | |
| Alarm | Alarm |
| Controls/Indicators | |
| Status Indicators | LED Display: Load bar-graphs Battery bar-graphs On Line On Battery Replace Battery Overload Indicator |
| Interfaces/Ports | |
| Serial Port | Yes |
| USB (HID Compliant) Port | Yes |
| Battery Information | |
| Battery Chemistry | Lead Acid |
| Battery Life | 5 Year |
| Typical Battery Recharge Time | 3 Hour |
| Replaceable Battery | Yes |
| Environmental Conditions | |
| Storage Temperature | -4°F (-20°C) - 131°F (55°C) |
| Storage Relative Humidity | 0% - 95% |
| Maximum Operating Temperature | 104°F (40°C) |
| Sound Emission (A-Weighted) | 45 dB(A) |
| Thermal Dissipation | 90 BTU/h |
| Physical Characteristics | |
| Product Color | Black |
| Height | 8.62" (219 mm) |
| Width | 5.43" (138 mm) |
| Depth | 17.28" (439 mm) |
| Form Factor | Tower |
| Weight (Approximate) | 43.43 lb (19699.52 g) |
| Miscellaneous | |
| Package Contents | Smart-UPS 700VA Tower UPS User Manual |
| Country of Origin | United States |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | Battery: 24 month(s)|UPS: 36 month(s) |
User Manual
FAQ
What is the power capacity of this APC Smart-UPS?
This Smart-UPS has a load capacity of 700 VA (volt-amps) and 450 watts. It is designed to support equipment like small servers, network switches, VoIP systems, and multiple desktops, providing battery backup and surge protection during power outages or fluctuations.
How many outlets does this UPS have and what type are they?
The unit features eight NEMA 5-15R outlets, all providing battery backup and surge protection. These standard North American outlets are suitable for servers, networking gear, monitors, and other office equipment, allowing you to consolidate power protection for multiple devices.
Does this UPS include Automatic Voltage Regulation (AVR)?
Yes, it includes AVR, which corrects minor utility voltage fluctuations (brownouts and overvoltages) without switching to battery power. This extends battery life, reduces wear, and ensures stable output voltage, making it ideal for areas with unreliable grid power.
What management options are available for this Smart-UPS?
Management is supported through a serial port and a USB HID-compliant port. These interfaces allow integration with APC's PowerChute Business Edition software for graceful shutdowns, monitoring, alerts, and reporting, which is essential for unattended servers and network equipment.
Is the battery user-replaceable and what is its typical life?
Yes, the battery is user-replaceable and uses lead-acid chemistry with a typical life of 5 years. The unit includes a battery replacement indicator, and the battery typically recharges within 3 hours after a full discharge, facilitating easy maintenance.
What are the physical dimensions and form factor of this UPS?
This is a tower-form UPS measuring 8.62" high, 5.43" wide, and 17.28" deep, weighing approximately 43.43 lb. Its compact design allows placement under desks, on shelves, or in network closets without requiring a rack, making it versatile for various office environments.
What power capacity is listed for this UPS?
The listed power specification is 700 VA, which helps position the unit for the right load level and installation role.
How many outlets are available?
The product includes 8, which helps buyers understand how many connected devices it can support in its intended deployment.
