APC by Schneider Electric SRYL10K15RMXLT APC Smart-UPS Modular Ultra On-Line UPS - 10kW Scalable to 15kW - Lithium-ion - 9U Rackmount - 208/240V
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This Smart-UPS model operates as a double conversion online UPS, providing clean, regulated power output regardless of input fluctuations. It supports single-phase power with input voltages of 208 V AC, 120 V AC, and 240 V AC, and delivers output at 120 V AC, 208 V AC, and 240 V AC, making it versatile for various electrical configurations.
The hard-wire 4-wire (2P+N+E) receptacle type ensures secure, direct electrical connections, while the LCD/LED display offers real-time monitoring of power status, load, and battery health. The chassis is backward compatible with existing Symmetra LX wiring, simplifying upgrades and integration into established infrastructure.
This section brings together practical product details such as Receptacle Type, Phase, Application/Usage, Load Capacity (Watt), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
This UPS stands out with its modular design, allowing capacity expansion from 10 kW to 15 kW by adding power and battery modules. This scalability ensures future-proofing for growing power demands without replacing the entire unit.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Sustainability & Efficiency, Network Management.
Sustainability & Efficiency
As the most sustainable modular UPS of its kind, it features best-in-class embodied carbon reduction and is 50% smaller and 60% lighter than previous models, reducing installation effort and environmental impact.
- RoHS compliant
- Environmentally friendly design
Network Management
Includes a 1-year Secure Network Management Card subscription, enabling remote monitoring, configuration, and alerts for proactive power management across IT networks.
Deployment / Use Cases
Ideal for data centers, IT server rooms, and business environments requiring high-availability power protection. Its rackmount form factor and scalable capacity make it suitable for colocation facilities, enterprise server racks, and critical infrastructure deployments.
Use cases include protecting network equipment, storage arrays, and servers from power outages, surges, and fluctuations. The extended runtime capabilities ensure operational continuity during extended power failures, while the network management features support centralized oversight in distributed IT environments.
This section brings together practical product details such as Receptacle Type, Phase, Application/Usage, Load Capacity (Watt), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Data Center Power Protection
Provides reliable backup for servers, switches, and storage in data center racks, with scalability to match expanding power loads.
Business IT Infrastructure
Safeguards critical business systems against power disruptions, ensuring uptime for applications, databases, and communication tools.
Highlights
- 10 kW load capacity scalable to 15 kW with modular power and battery modules

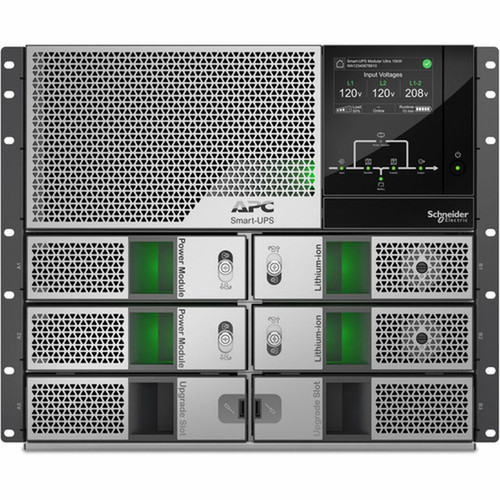

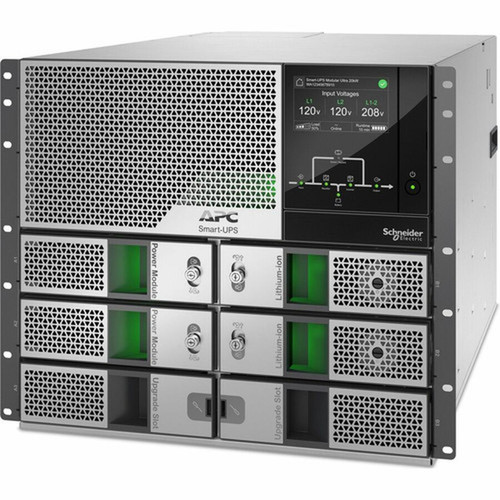

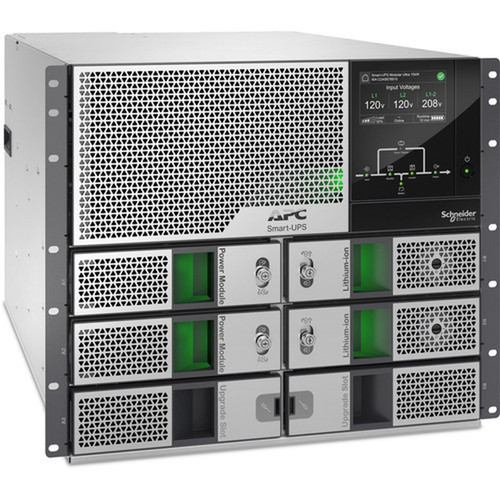

- 9U rackmount chassis for seamless integration into server racks
- Lithium-ion battery technology for extended runtime and sustainability
- Double conversion online topology for clean, regulated power output
- Input and output voltages: 208 V AC, 120 V AC, 240 V AC
- LCD/LED display for real-time monitoring and status alerts
- Backward compatible with existing Symmetra LX wiring
- 1-year Secure Network Management Card subscription included
- 5-year limited warranty for long-term reliability
- RoHS compliant and environmentally friendly design
Specifications
| Specifications | |
|---|---|
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SRYL10K15RMXLT |
| Brand Name | APC by Schneider Electric |
| Product Name | Smart-UPS 10000VA Rack-mountable UPS |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Receptacle Type | Hard Wire 4-wire (2P+N+E) |
| Phase | Single Phase |
| Application/Usage | Data Center,IT,Business |
| Power Description | |
| Load Capacity (Watt) | 10 kW |
| Input Voltage | 208 V AC,120 V AC,240 V AC |
| Output Voltage | 120 V AC,208 V AC,240 V AC |
| Display & Graphics | |
| Display | LCD/LED |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
What is the load capacity of this APC Smart-UPS?
This UPS has a base load capacity of 10 kW, which can be scaled up to 15 kW by adding modular power and battery modules. This scalability allows it to adapt to increasing power demands in data center or business environments without requiring a full unit replacement.
What input and output voltages does this UPS support?
The UPS supports input voltages of 208 V AC, 120 V AC, and 240 V AC, and delivers output at 120 V AC, 208 V AC, and 240 V AC. This versatility makes it compatible with various electrical systems commonly found in North American and international settings.
Is this UPS rack-mountable, and what size is it?
Yes, this UPS is designed as a rack-mountable unit with a 9U chassis. It fits standard 19-inch server racks, making it ideal for data centers and IT rooms where space optimization is crucial. The compact design simplifies installation and integration with other rack-mounted equipment.
What type of battery technology does this UPS use?
This UPS utilizes lithium-ion battery technology, which offers benefits such as extended runtime, longer lifespan, and reduced environmental impact compared to traditional lead-acid batteries. Lithium-ion batteries also contribute to the unit's lighter weight and smaller footprint.
Does this UPS include network management capabilities?
Yes, it includes a 1-year subscription for a Secure Network Management Card. This allows for remote monitoring, configuration, and alerting via network connections, enabling proactive management of power status, load levels, and battery health from a centralized interface.
What warranty is provided with this APC Smart-UPS?
The UPS comes with a 5-year limited warranty, covering defects in materials and workmanship. This warranty provides long-term assurance for investments in critical power protection infrastructure, supporting reliable operation in business and data center applications.
What power capacity is listed for this UPS?
The listed power specification is 10 kW, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 208 V AC,120 V AC,240 V AC, which helps position the unit for the right load level and installation role.
