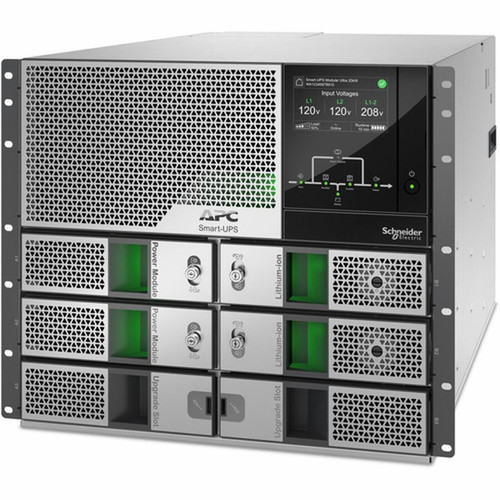

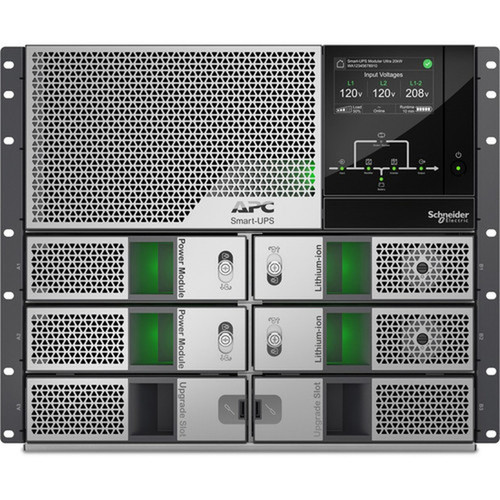

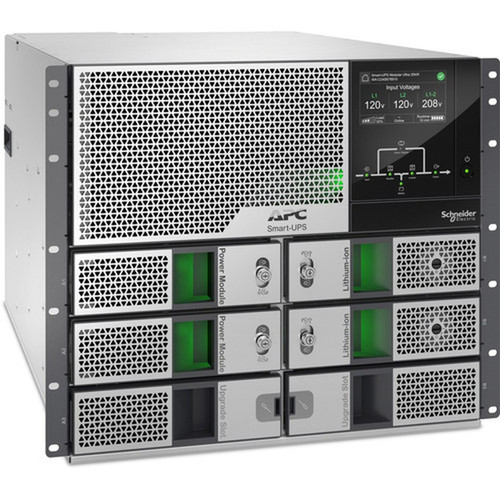

APC by Schneider Electric SRYL10K20RMXLT APC Smart-UPS Modular Ultra 10kW Scalable to 20kW N+1 Rackmount UPS - Lithium-ion - 208/240V - Network
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This modular UPS employs double conversion online topology, providing complete isolation from input power anomalies and delivering clean, regulated sine wave output. The system accepts a wide input voltage range from 120V to 240V AC and maintains stable output across the same range, ensuring compatibility with diverse power infrastructures.
The lithium-ion battery subsystem offers higher energy density and longer lifecycle compared to traditional VRLA batteries, with two battery modules providing 4665.6 kJ of stored energy. Intelligent battery management extends battery life and provides accurate runtime predictions.
This section brings together practical product details such as Plug/Connector Type, Phase, Load Capacity (Watt), Input Voltage, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The Smart-UPS Modular Ultra delivers exceptional value through its combination of scalability, sustainability, and serviceability. The system's modular architecture allows organizations to start with 10kW of protection and expand to 20kW as power requirements grow, protecting infrastructure investments.
Sustainable Design
This UPS features best-in-class embodied carbon reduction, making it the most sustainable modular UPS in its class. The lithium-ion batteries have a significantly longer lifespan than traditional alternatives, reducing replacement frequency and environmental impact.
- 50% smaller footprint than previous models
- 60% lighter weight for easier installation
- RoHS compliant construction
Advanced Management
Included network management capabilities provide comprehensive monitoring and control through a secure web interface. The system includes a 1-year subscription to APC's secure management platform for remote monitoring and alerting.
- LCD display for local status monitoring
- USB HID-compliant port for direct computer connection
- EPO (Emergency Power Off) port for safety integration
Deployment / Use Cases
This modular UPS system is ideally suited for environments requiring high-availability power protection with growth flexibility. The scalable architecture makes it particularly valuable for organizations with evolving power requirements or those implementing power infrastructure in phases.
Primary deployment scenarios include high-density server racks in data centers, network operations centers, telecommunications facilities, and financial trading floors. The system's compatibility with existing Symmetra LX wiring reduces implementation complexity for organizations upgrading from previous-generation APC infrastructure.
Data Center Implementation
Deploy in server racks supporting virtualization clusters, database servers, or storage arrays where uninterrupted operation is critical. The N+1 redundancy ensures continuous protection even during module maintenance or failure.
Network Infrastructure Protection
Secure core networking equipment including switches, routers, and security appliances in central network closets or edge computing locations. The wide input voltage range accommodates varying facility power quality.
Highlights
- 10kW scalable to 20kW in N+1 redundant configuration
- Double conversion online topology for complete power isolation
- Lithium-ion battery technology with longer lifecycle
- 9U rackmount chassis with 50% smaller footprint
- Backward compatible with existing Symmetra LX wiring
- Includes 1-year secure network management subscription
- Wide input voltage range (120V-240V AC)
- 5-year limited warranty for long-term protection
- RoHS compliant and Energy Star certified
- EPO port for emergency power-off integration
Specifications
| Specifications | |
|---|---|
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SRYL10K20RMXLT |
| Brand Name | APC by Schneider Electric |
| Product Name | Smart-UPS Modular Ultra 10kW Scalable to 20kW N+1 Rackmount 208/240V |
| Packaged Quantity | 1 Pack |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Plug/Connector Type | Hard Wire 4-wire (2PH+N+G) |
| Phase | Single Phase |
| Power Description | |
| Load Capacity (Watt) | 10 kW |
| Input Voltage | 208 V AC,120 V AC,240 V AC |
| Output Voltage | 120 V AC,208 V AC,240 V AC |
| Input Frequency | 70 Hz |
| Input Power Factor | 0.5 |
| Display & Graphics | |
| Display | LCD |
| Management | |
| Network Management | Network Card |
| Interfaces/Ports | |
| USB (HID Compliant) Port | Yes |
| EPO Port | Yes |
| Battery Information | |
| Number of Batteries | 2 |
| Battery Energy | 4665.6 kJ |
| Environmental Conditions | |
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
| Maximum Operating Elevation | 9842.52 ft (3000000 mm) |
| Maximum Storage Elevation | 49212.60 ft (15000000 mm) |
| Storage Relative Humidity | 0% - 95% |
| Sound Emission | 60 dB |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Miscellaneous | |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
What is the power capacity of this UPS system?
This APC Smart-UPS Modular Ultra chassis provides 10kW of power protection with the ability to scale up to 20kW through additional power modules. The system supports N+1 redundancy at full capacity, ensuring continuous operation even if one power module requires maintenance or experiences failure.
What battery technology does this UPS use?
This system utilizes advanced lithium-ion battery technology, which offers higher energy density and longer lifecycle compared to traditional valve-regulated lead-acid (VRLA) batteries. The lithium-ion batteries provide 4665.6 kJ of stored energy and feature intelligent management for optimal performance and longevity.
What input voltages does this UPS support?
The UPS accepts input voltages of 120V AC, 208V AC, and 240V AC, providing flexibility for different electrical infrastructures. This wide input range allows deployment in various facility types without requiring voltage conversion equipment.
What management capabilities are included?
The system includes a network management card with a 1-year subscription to APC's secure management platform. This enables remote monitoring, configuration, and alerting through a web interface. Local management is available via the front-panel LCD display and USB HID-compliant port for direct computer connection.
What is the rack space requirement for this UPS?
This modular UPS requires 9U of rack space. The chassis design is 50% smaller and 60% lighter than comparable previous-generation systems, reducing installation complexity and rack space consumption while maintaining full power protection capabilities.
What warranty coverage is provided?
APC provides a 5-year limited warranty for this Smart-UPS Modular Ultra system. This comprehensive coverage includes protection for the power modules, battery system, and management components, offering long-term assurance for your critical power infrastructure investment.
What power capacity is listed for this UPS?
The listed power specification is 10 kW, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 208 V AC,120 V AC,240 V AC, which helps position the unit for the right load level and installation role.
