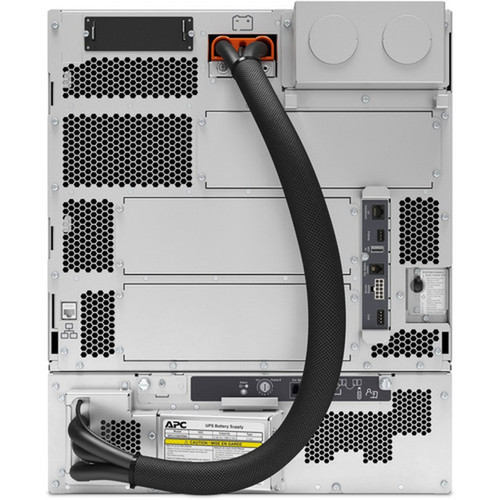

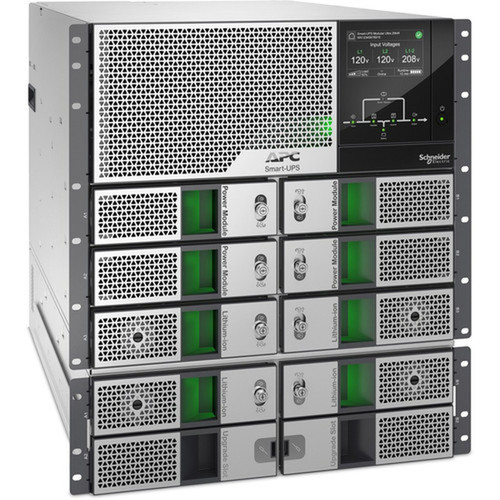

APC by Schneider Electric SRYL20K20RMXLT APC Smart-UPS Modular Ultra 20kW Scalable to 20kW N+1 Rackmount UPS - 208/240V - Lithium-ion - Network
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This section brings together practical product details such as Plug/Connector Type, Phase, Load Capacity (Watt), Input Voltage, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Power Architecture
Double-conversion online topology ensures clean, stable power output regardless of input fluctuations, with a 20 kW load capacity and wide input voltage range of 120-240V AC.
- Single-phase operation
- Hard-wired 4-wire (2PH+N+G) connector
- Input power factor of 0.5
Battery System
Lithium-ion battery technology provides reliable backup power with four battery modules delivering 9230.4 kJ of energy storage.
- 5.52 minutes runtime at full load
- 11.90 minutes runtime at half load
- Reduced maintenance requirements
Key Product Advantages
This modular UPS system combines high-density power protection with sustainability features and simplified management.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include N+1 Redundancy, Lithium-ion Batteries, 50% Smaller Footprint, 60% Lighter Weight, Energy Star Certified.
For buyers comparing similar models, the strongest advantage is usually the balance between dependable day-to-day operation and a simpler rollout experience. That means less time spent troubleshooting fit, compatibility, or user adoption after installation, which is especially important for shared business environments and repeat purchasing decisions.
Deployment / Use Cases
The Smart-UPS Modular Ultra 20kW is engineered for environments where power continuity is non-negotiable. Its scalable architecture supports growth while maintaining redundancy.
Primary deployment scenarios include data center server racks, network operation centers, telecommunications infrastructure, and industrial control systems requiring clean, uninterrupted power.
This section brings together practical product details such as Plug/Connector Type, Phase, Load Capacity (Watt), Input Voltage, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Deployment planning benefits from clear examples of where the product fits best, how it may be installed or used, and which business scenarios it supports most naturally. This helps teams judge whether the product belongs at a fixed desk, in a shared workspace, in a meeting area, or as part of a broader managed device rollout.
Data Center Applications
Protect critical server infrastructure with N+1 redundancy and network management for remote monitoring of power conditions and battery health.
Network Infrastructure
Ensure continuous operation of switches, routers, and communication equipment with wide input voltage compatibility and reliable battery backup.
Highlights
- 20 kW double-conversion online UPS with N+1 scalability
- Lithium-ion battery technology for reduced size and weight
- 12U rackmount form factor, 50% smaller than traditional models
- Network management card with 1-year secure subscription included
- Wide input voltage range: 120V, 208V, 240V AC
- LCD display for local status monitoring
- USB and EPO ports for connectivity and emergency shutdown
- Energy Star certified and RoHS compliant
- 5-year limited warranty
- Operating temperature range: -15°C to 45°C
Specifications
| Specifications | |
|---|---|
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SRYL20K20RMXLT |
| Brand Name | APC by Schneider Electric |
| Product Name | Smart-UPS Modular Ultra 20kW Scalable to 20kW N+1 Rackmount 208/240V |
| Packaged Quantity | 1 Pack |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Plug/Connector Type | Hard Wire 4-wire (2PH+N+G) |
| Phase | Single Phase |
| Power Description | |
| Load Capacity (Watt) | 20 kW |
| Input Voltage | 208 V AC,120 V AC,240 V AC |
| Output Voltage | 120 V AC,208 V AC,240 V AC |
| Input Frequency | 70 Hz |
| Input Power Factor | 0.5 |
| Display & Graphics | |
| Display | LCD |
| Management | |
| Network Management | Network Card |
| Interfaces/Ports | |
| USB (HID Compliant) Port | Yes |
| EPO Port | Yes |
| Battery Information | |
| Number of Batteries | 4 |
| Battery Energy | 9230.4 kJ |
| Backup/Run Time (Full Load) | 5.52 Minute |
| Backup/Run Time (Half Load) | 11.90 Minute |
| Environmental Conditions | |
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
| Maximum Operating Elevation | 9842.52 ft (3000000 mm) |
| Maximum Storage Elevation | 49212.60 ft (15000000 mm) |
| Storage Relative Humidity | 0% - 95% |
| Sound Emission | 60 dB |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Miscellaneous | |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
What is the power capacity of this UPS?
This APC Smart-UPS Modular Ultra delivers 20 kW of power capacity with double-conversion online topology. It supports single-phase operation and can scale to 20kW N+1 redundancy for critical applications requiring uninterrupted power protection.
What battery technology does this UPS use?
This system utilizes lithium-ion battery technology with four battery modules providing 9230.4 kJ of energy storage. Lithium-ion batteries offer advantages including reduced size and weight, longer lifespan, and lower maintenance requirements compared to traditional lead-acid batteries.
What are the runtime specifications?
At full 20 kW load, the UPS provides 5.52 minutes of runtime. At half load (10 kW), runtime extends to 11.90 minutes. These specifications support orderly shutdown procedures or transition to backup generators during power interruptions.
What input voltages does this UPS support?
The UPS accepts input voltages of 120V AC, 208V AC, and 240V AC with a frequency range of 70 Hz. This wide voltage compatibility makes it suitable for various electrical infrastructures without requiring additional transformers or converters.
What management capabilities are included?
A network management card is included with a 1-year secure subscription, enabling remote monitoring, configuration, and shutdown capabilities. Local management features include an LCD display, USB port for direct computer connection, and an EPO (Emergency Power Off) port for safety shutdowns.
What is the form factor and installation requirements?
This UPS features a 12U rackmount design for standard 19-inch server racks. At 50% smaller and 60% lighter than comparable traditional UPS systems, it requires fewer personnel for installation and reduces the physical infrastructure demands in data center environments.
What power capacity is listed for this UPS?
The listed power specification is 20 kW, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 208 V AC,120 V AC,240 V AC, which helps position the unit for the right load level and installation role.
