APC by Schneider Electric SRT2200RMXLAUS Smart-UPS SRT 2200VA/1800W Double-Conversion Online UPS - 2U Rackmount - 120V - 7 Outlets - Rail Kit - TAA
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This Smart-UPS SRT model operates on double-conversion online topology, continuously converting incoming AC power to DC and back to clean AC output. This eliminates transfer delays and provides isolation from grid disturbances. The unit accepts 120V AC input within a 108V-150V range and delivers regulated 120V AC sine wave output.
Battery management includes hot-swappable lead-acid batteries that recharge in approximately three hours. The UPS includes a network RJ-45 port for monitoring and supports external battery expansion with up to ten SRT72RMBP packs for extended runtime. Software integration is provided via PowerChute Serial Edition for graceful shutdowns.
This section brings together practical product details such as Plug/Connector Type, Receptacle Type, Receptacle Detail, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The Smart-UPS SRT 2200VA RM combines enterprise-grade power protection with practical deployment features. Its pure sine wave output ensures compatibility with active PFC power supplies found in modern servers. The included rail kit and convertible rack/tower design provide installation flexibility for diverse environments.
Zero Transfer Time Protection
Double-conversion online design ensures continuous clean power without switching gaps, critical for sensitive servers and medical equipment.
Rack-Optimized Deployment
2U rackmount form factor with included rail kit simplifies installation in standard server racks, saving space and streamlining cable management.
Scalable Runtime
Support for up to ten external battery packs allows runtime extension to meet specific backup requirements without replacing the core unit.
Deployment / Use Cases
This UPS is engineered for environments where power quality directly impacts operational continuity. Its 2200VA capacity and seven outlets make it suitable for protecting multiple devices in server racks, network closets, or medical labs.
The unit's TAA compliance ensures it meets Trade Agreements Act requirements for U.S. federal government procurement. Applications include voice/data networks, security systems, ATMs, VoIP infrastructure, and light industrial controls where reliable backup power is non-negotiable.
This section brings together practical product details such as Plug/Connector Type, Receptacle Type, Receptacle Detail, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Server Room & Data Center
Protect rack-mounted servers, network switches, and storage arrays from power anomalies and outages in centralized IT environments.
Medical & Laboratory Settings
Provide clean, uninterrupted power for diagnostic equipment, monitoring systems, and other sensitive medical devices requiring stable electrical supply.

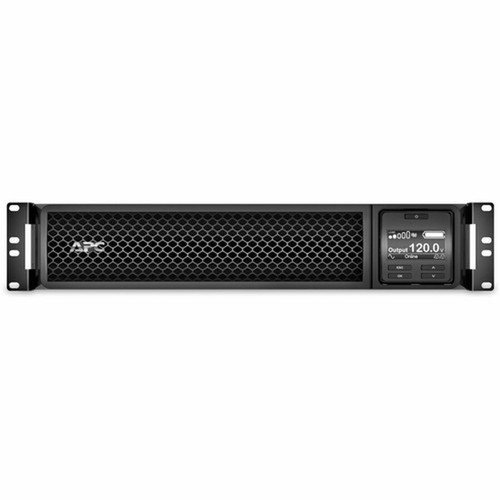

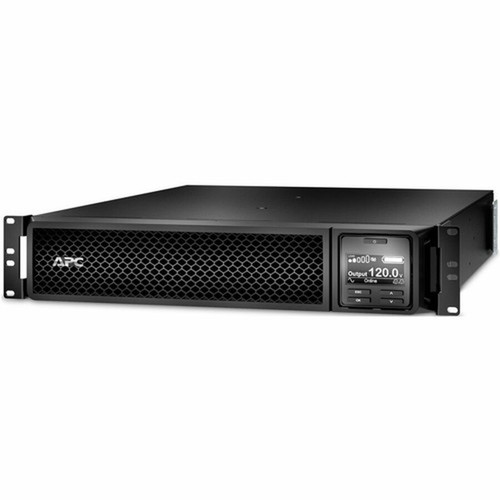

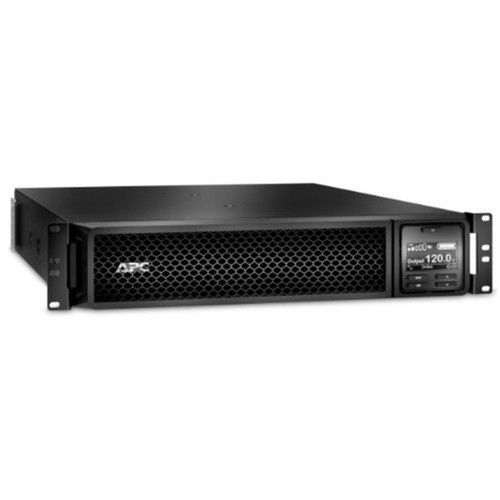

Physical Profile
The black 2U rackmount enclosure measures 3.35" (85 mm) in height, 17.01" (432 mm) in width, and 22.99" (584 mm) in depth. Weighing 55.01 lb, the unit includes integrated handles and front-panel controls for easy installation and operation. The standard rack-mount design optimizes space utilization in server cabinets while maintaining adequate ventilation for thermal management.
- Width
- 17.01" (432 mm)
- Depth
- 22.99" (584 mm)
- Height
- 3.35" (85 mm)
- Weight
- 55.01 lb (24952.12 g)
- Length
- 5.9 ft (1.80 m)
What's in the Box
The package includes all necessary components for immediate deployment and management.
Highlights
- 2200VA/1800W double-conversion online UPS with pure sine wave output
- 2U rackmount design with included rail kit for server cabinet installation
- Seven NEMA outlets: six 5-20R and one L5-20R for versatile device connectivity
- Zero transfer time protection for sensitive servers and medical equipment
- Hot-swappable lead-acid batteries with 3.3-minute runtime at full load
- Supports up to ten external battery packs (SRT72RMBP) for extended runtime
- Network RJ-45 port with PowerChute Serial Edition for graceful shutdowns
- TAA compliant, Energy Star certified, and RoHS compliant
- 3-year warranty with 24-month battery coverage
- Rack/tower convertible installation flexibility
Specifications
| Specifications | |
|---|---|
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SRT2200RMXLAUS |
| Brand Name | APC by Schneider Electric |
| Product Line | Smart-UPS SRT |
| Product Model | SRT2200RMXLAUS |
| Product Name | Smart-UPS SRT 2200VA RM 120V |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Plug/Connector Type | NEMA 5-20P |
| Receptacle Type | NEMA 5-20P |
| Receptacle Detail | 1 x NEMA L5-20R,6 x NEMA 5-20R |
| Number of Battery & Surge Outlets | 7 |
| Cord Length | 5.9 ft (1.80 m) |
| Phase | Single Phase |
| Application/Usage | Server,Router,Network Switch,Network Hub,Security System,Network Device,Voice/Data Network,Medical,ATM,VoIP Device |
| Power Description | |
| Load Capacity (VA) | 2.20 kVA |
| Load Capacity (Watt) | 1.80 kW |
| Input Voltage | 120 V AC |
| Input Voltage Range | 108 V AC - 150 V AC |
| Output Voltage | 120 V AC |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 340 J |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Battery Information | |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 3.30 Minute |
| Hot Swappable | Yes |
| Typical Battery Recharge Time | 3 Hour |
| Physical Characteristics | |
| Product Color | Black |
| Height | 3.35" (85 mm) |
| Width | 17.01" (432 mm) |
| Depth | 22.99" (584 mm) |
| Rack Height | 2U |
| Form Factor | Rack-mountable |
| Weight (Approximate) | 55.01 lb (24952.12 g) |
| Miscellaneous | |
| Package Contents | Smart-UPS SRT 2200VA RM 120V CD with software Documentation CD Installation guide Rack mounting brackets Rack mounting hardware Rack mounting support rails USB cable Warranty card |
| Software Included | Powerchute Serial Edition |
| Energy Star | Yes |
| Country of Origin | United States |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | Battery: 24 month(s)|UPS: 36 month(s) |
User Manual
FAQ
What is the power capacity of this APC Smart-UPS?
This Smart-UPS SRT model provides 2200VA (2.2 kVA) and 1800W of double-conversion online power protection. It accepts 120V AC input and delivers regulated 120V AC pure sine wave output, suitable for protecting servers, network equipment, and sensitive medical devices.
How many outlets does this UPS have and what types?
The unit features seven NEMA outlets: six standard NEMA 5-20R outlets and one NEMA L5-20R locking outlet. This configuration supports a variety of equipment while providing secure connections for critical devices. The 5.9-foot power cord ensures flexible placement within rack environments.
What is the runtime at full load for this 2200VA UPS?
At full 1800W load, the internal batteries provide approximately 3.3 minutes of backup runtime. This runtime can be significantly extended by connecting up to ten external SRT72RMBP battery packs, allowing customization based on specific backup requirements for your protected equipment.
Is this UPS rack-mountable and what space does it require?
Yes, this is a 2U rackmount UPS designed for standard server cabinets. It measures 3.35" high, 17.01" wide, and 22.99" deep. The package includes all necessary mounting brackets, support rails, and hardware for immediate rack installation. The unit also supports tower configuration if needed.
What management and monitoring capabilities does this UPS offer?
The UPS includes a network RJ-45 port for connectivity and comes with PowerChute Serial Edition software. This enables remote monitoring, graceful shutdown of connected systems during extended outages, and battery health management. The hot-swappable battery design allows replacement without powering down protected equipment.
What certifications and warranty coverage does this APC UPS have?
This Smart-UPS SRT is TAA compliant for government procurement, Energy Star certified for energy efficiency, and RoHS compliant. It carries a 3-year warranty for the UPS unit with 24-month coverage for the batteries, providing comprehensive protection for your power infrastructure investment.
What power capacity is listed for this UPS?
The listed power specification is 2.20 kVA, which helps position the unit for the right load level and installation role.
How many outlets are available?
The product includes 7, which helps buyers understand how many connected devices it can support in its intended deployment.
