APC by Schneider Electric SRT2K2RXLNX145 APC Smart-UPS On-Line 2200VA Rackmount 2U UPS - 1800W - 120V - 7 Outlets - Sine Wave - Rail Kit & 10ft Cord
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This double-conversion online UPS operates with a 120V AC input and output, maintaining a sine wave waveform at 60 Hz output frequency. It features a 72V DC system voltage with lead-acid batteries that are user-replaceable and backed by a 5-year typical life. The unit offers a surge energy rating of 340 joules for added protection against voltage spikes.
Management capabilities include a SmartSlot for adding network management cards, USB and serial connectivity for graceful shutdown via PowerChute Serial Edition software, and an EPO (Emergency Power Off) port for safety. The LCD console displays detailed status, while audible alarms alert to power events.
This section brings together practical product details such as Plug/Connector Type, Receptacle Type, Receptacle Detail, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The Smart-UPS On-Line series is designed for environments where power quality and uptime are non-negotiable. Its double-conversion topology isolates connected equipment from raw utility power, eliminating transfer delays and providing regulated, clean output. This makes it ideal for servers, storage systems, VoIP networks, and lab equipment that demand stable voltage and frequency.
Zero Transfer Time
Continuous double-conversion operation ensures no break in power during switchover, critical for sensitive hardware and uninterrupted operations.
- Eliminates transfer spikes
- Maintains sine wave integrity
- Suitable for active PFC power supplies
Extended Runtime Scalability
Support for up to 10 external battery packs (SRT72RMBP) allows runtime extension to meet longer backup requirements during outages.
- Modular battery expansion
- Flexible runtime planning
- Ideal for extended outages
Rack/Tower Convertible
Included rail kit and mounting hardware enable seamless integration into standard 19-inch racks, with a compact 2U footprint that conserves rack space.
- Rail kit included
- 2U height efficiency
- Tool-less mounting options
Deployment / Use Cases
This 2200VA UPS is tailored for small to medium server rooms, network infrastructure, and point-of-sale systems where reliable backup power is essential. Its 1800W capacity can support multiple rack-mounted servers, switches, and storage devices, providing runtime to facilitate graceful shutdowns or ride through short interruptions.
Common applications include protecting voice/data network equipment in telecom closets, medical diagnostic devices in labs, and light industrial control systems. The pure sine wave output ensures compatibility with active PFC power supplies found in modern servers and networking gear, preventing shutdowns or reboots during power transitions.
Server & Storage Protection
Safeguards rack-mounted servers, NAS devices, and SAN arrays from power anomalies, with USB/serial connectivity for automated shutdown scripts.
Network Infrastructure
Provides backup for switches, routers, and VoIP equipment in network closets, maintaining connectivity during utility fluctuations.
Physical Profile

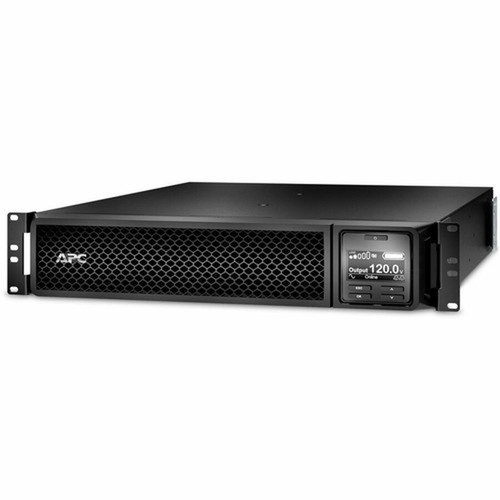

Housed in a black steel chassis, this UPS measures 3.35 inches (85 mm) in height, 17.01 inches (432 mm) in width, and 22.99 inches (584 mm) in depth, occupying 2U of rack space. It weighs approximately 55.01 pounds (24.95 kg), with a design that includes ventilation for thermal management, dissipating 535 BTU/h under load. The unit operates quietly at 55 dB(A), suitable for office and lab environments.
- Width
- 17.01" (432 mm)
- Depth
- 22.99" (584 mm)
- Height
- 3.35" (85 mm)
- Weight
- 55 dB(A)
- Length
- 10 ft (3.05 m)
What's in the Box
The package includes the Smart-UPS On-Line 2200VA rack-mountable UPS, a CD with PowerChute Serial Edition software, documentation CD, installation guide, network management card, rack mounting hardware, brackets, support rails, a USB cable, and a warranty card.
Highlights
- 2200VA/1800W double-conversion online UPS with pure sine wave output
- 2U rack-mountable form factor with included rail kit for easy installation
- Seven NEMA outlets: six 5-20R and one L5-20R for versatile device connectivity
- Zero transfer time ensures continuous power for sensitive servers and network gear
- SmartSlot for adding network management cards and external monitoring
- Supports up to 10 external battery packs (SRT72RMBP) for extended runtime
- Multi-function LCD display provides real-time status and configuration
- Includes PowerChute Serial Edition software for graceful shutdowns
- ENERGY STAR 2.0 certified for energy efficiency
- 3-year warranty with 2-year battery coverage
Specifications
| Specifications | |
|---|---|
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SRT2K2RXLNX145 |
| Brand Name | APC by Schneider Electric |
| Product Line | Smart-UPS On-Line |
| Product Name | Smart-UPS On-Line 2200VA Rack-mountable UPS |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Plug/Connector Type | NEMA 5-20P |
| Receptacle Type | NEMA 5-20P |
| Receptacle Detail | 1 x NEMA L5-20R,6 x NEMA 5-20R |
| Number of Battery & Surge Outlets | 7 |
| Cord Length | 10 ft (3.05 m) |
| Phase | Single Phase |
| Power Description | |
| Load Capacity (VA) | 2.20 kVA |
| Load Capacity (Watt) | 1.80 kW |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Input Frequency | 70 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 340 J |
| Display & Graphics | |
| Display | LCD |
| Management | |
| Network Management | SmartSlot |
| Alarm | Yes |
| Controls/Indicators | |
| Status Indicators | Multi-function LCD status and control console |
| Interfaces/Ports | |
| USB | Yes |
| EPO Port | Yes |
| Battery Information | |
| DC System Voltage | 72 V DC |
| Battery Chemistry | Lead Acid |
| Battery Energy | 0 J |
| Battery Life | 5 Year |
| Typical Battery Recharge Time | 3 Hour |
| Replaceable Battery | Yes |
| Environmental Conditions | |
| Maximum Operating Elevation | 10000 ft (3048000 mm) |
| Maximum Storage Elevation | 50000 ft (15240000 mm) |
| Storage Temperature | -4°F (-20°C) - 122°F (50°C) |
| Storage Relative Humidity | 0% - 95% |
| Maximum Operating Temperature | 104°F (40°C) |
| Sound Emission (A-Weighted) | 55 dB(A) |
| Thermal Dissipation | 535 BTU/h |
| Physical Characteristics | |
| Product Color | Black |
| Height | 3.35" (85 mm) |
| Width | 17.01" (432 mm) |
| Depth | 22.99" (584 mm) |
| Rack Height | 2U |
| Form Factor | Rack-mountable |
| Weight (Approximate) | 55.01 lb (24952.12 g) |
| Miscellaneous | |
| Package Contents | Smart-UPS On-Line 2200VA Rack-mountable UPS CD with software Documentation CD Installation guide Network Management Card Rack mounting hardware Rack Mounting brackets Rack Mounting support rails USB cable Warranty card |
| Software Included | Powerchute Serial Edition |
| Energy Star | Yes |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Energy Efficiency Certification | ENERGY STAR 2.0 |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | Battery: 24 month(s)|UPS: 36 month(s) |
User Manual
FAQ
What is the power capacity of this APC Smart-UPS?
This UPS has a load capacity of 2200VA (2.20 kVA) and 1800W, making it suitable for protecting multiple servers, storage devices, or network equipment in a rack environment. It operates at 120V AC input and output, delivering pure sine wave power for compatibility with sensitive electronics.
How many outlets does this rackmount UPS have?

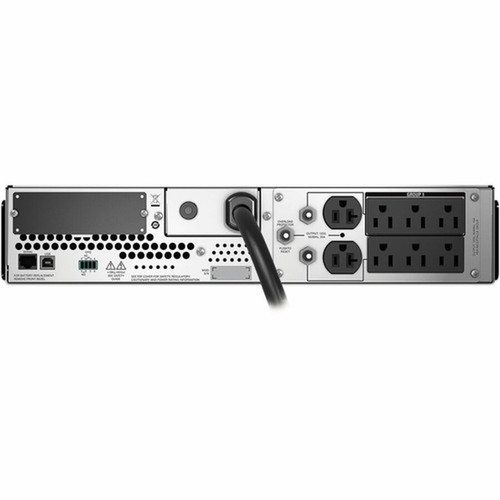

It features seven NEMA outlets: six 5-20R outlets and one L5-20R outlet. These provide both battery-backed and surge-protected power for a variety of devices, from standard servers to equipment requiring locking connectors.
What is the typical battery recharge time?
The typical battery recharge time is 3 hours. This allows the UPS to restore its battery capacity relatively quickly after a discharge, ensuring it is ready for subsequent power events. The lead-acid batteries are user-replaceable and have a 5-year typical life.
Can this UPS be used in a tower configuration?
Yes, it is rack/tower convertible. While designed as a 2U rackmount unit with included rail kit, it can also be deployed as a tower if rack space is not available, offering flexibility in installation based on your infrastructure layout.
What management features are included?
Management features include a SmartSlot for adding network management cards, USB and serial ports for connectivity with PowerChute Serial Edition software, an EPO port for emergency shutdown, and a multi-function LCD console for status monitoring and configuration.
Is this UPS ENERGY STAR certified?
Yes, it is ENERGY STAR 2.0 certified, indicating energy-efficient operation that can help reduce electricity costs in data center and office environments. It also complies with the Waste Electrical and Electronic Equipment Directive (WEEE) for environmental responsibility.
What power capacity is listed for this UPS?
The listed power specification is 2.20 kVA, which helps position the unit for the right load level and installation role.
How many outlets are available?
The product includes 7, which helps buyers understand how many connected devices it can support in its intended deployment.
