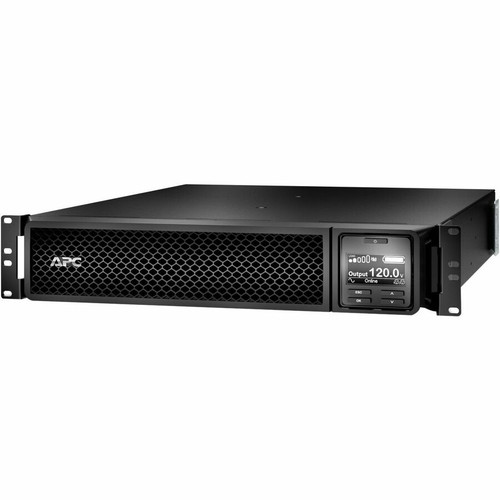

APC by Schneider Electric SRT3000RMXLA-NCUS APC Smart-UPS On-Line 3kVA/2. 7kW Double-Conversion Rack/Tower UPS 120V 2U with Network Card & Rail Kit
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This double-conversion online UPS provides complete power conditioning by continuously converting incoming AC power to DC and then back to clean AC output. The 3 kVA/2.7 kW capacity handles demanding loads while the pure sine wave output ensures compatibility with sensitive electronics. The 120V input and output voltage configuration matches standard North American power infrastructure.
The 2U rackmount form factor optimizes space in standard server racks, with dimensions of 3.35" height, 17.01" width, and 25" depth. The rack/tower convertible design includes mounting hardware for both deployment scenarios. The lead-acid battery system features replaceable batteries and a typical 3-hour recharge time after complete discharge.
This section brings together practical product details such as Plug/Connector Type, Receptacle Type, Receptacle Detail, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This Smart-UPS On-Line model combines enterprise-grade power protection with flexible deployment options. The double-conversion technology eliminates power transfer time during outages, providing seamless backup power for critical systems. The included network management card delivers advanced monitoring and control capabilities without requiring additional purchases or installations.
Zero Transfer Time Protection
Double-conversion technology ensures continuous clean power with no switching delay during grid failures or fluctuations.
- Eliminates power interruptions
- Protects sensitive equipment
- Maintains system uptime
Flexible Deployment Options
Rack/tower convertible design with included rail kit supports both rackmount and standalone tower configurations.
- 2U rackmount optimized
- Tower deployment capable
- Rail kit included
Advanced Management Capabilities
Preinstalled Network Management Card enables remote monitoring, management, and graceful shutdown of connected systems.
- Network-based management
- Graceful shutdown support
- No additional card required
Deployment / Use Cases
This 3kVA UPS is engineered for protecting critical IT infrastructure in various environments. The 2U rackmount form factor makes it ideal for server rooms and data centers where space optimization is crucial. The rack/tower convertible design also supports deployment in network closets, medical laboratories, and light industrial applications where standalone tower placement may be preferred.
The unit's capacity and outlet configuration support servers, storage arrays, voice/data network equipment, and virtual machine clusters. The ability to add external battery packs extends runtime for applications requiring longer backup durations. The network management capabilities make this UPS suitable for distributed IT environments where remote monitoring and control are essential.
Server Room Protection
Protects physical servers and storage arrays with clean power and graceful shutdown capabilities during extended outages.
Virtual Infrastructure Support
Provides power protection for virtual machines and hyperconverged infrastructure clusters with network-based management.
Physical Profile
The black 2U rackmount chassis measures 3.35" in height, 17.01" in width, and 25" in depth, fitting standard 19" server racks. The 69 lb weight includes the internal battery system. The rack/tower convertible design includes necessary hardware for both mounting scenarios. The front panel provides clear status indicators and easy access to the eight NEMA 5-20R and one NEMA L5-30R outlets.
- Width
- 17.01" (432.05 mm)
- Depth
- 25" (635 mm)
- Height
- 3.35" (85.09 mm)
- Weight
- 69 lb (31297.87 g)
- Length
- 7.9 ft (2.40 m)
What's in the Box
The package includes the Smart-UPS On-Line SRT 3000VA Rack/Tower UPS unit with preinstalled Network Management Card, rail kit for rackmount installation, and CD with management software.
Highlights
- 3kVA/2.7kW double-conversion online UPS with pure sine wave output
- 2U rackmount form factor with rack/tower convertible design
- Preinstalled Network Management Card for remote monitoring and management
- Eight NEMA 5-20R and one NEMA L5-30R outlets for flexible device connections
- Supports up to 10 external battery packs for extended runtime requirements
- Zero transfer time protection for critical and sensitive equipment
- Lead-acid battery with replaceable design and 3-hour typical recharge time
- ENERGY STAR 2.0 certified for energy efficiency
- TAA compliant for government and educational procurement
- 3-year limited warranty with 24-month battery coverage
Specifications
| Specifications | |
|---|---|
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SRT3000RMXLA-NCUS |
| Brand Name | APC by Schneider Electric |
| Product Line | Smart-UPS On-Line |
| Product Series | SRT |
| Product Name | Smart-UPS On-Line SRT 3000VA Rack/Tower UPS |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Plug/Connector Type | NEMA L5-30P |
| Receptacle Type | NEMA 5-20R,NEMA L5-30R |
| Receptacle Detail | 8 x NEMA 5-20R,1 x NEMA L5-30R |
| Cord Length | 7.9 ft (2.40 m) |
| Phase | Single Phase |
| Application/Usage | IT,Network,Business,Electronic,Server,Storage,Voice/Data Network,Medical Laboratory,Light Industrial Application,Virtual Machine,Hyperconverged Infrastructure (HCI) |
| Power Description | |
| Load Capacity (VA) | 3 kVA |
| Load Capacity (Watt) | 2.70 kW |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 340 J |
| Management | |
| Network Management | Network Card |
| Battery Information | |
| Battery Chemistry | Lead Acid |
| Typical Battery Recharge Time | 3 Hour |
| Replaceable Battery | Yes |
| Physical Characteristics | |
| Product Color | Black |
| Height | 3.35" (85.09 mm) |
| Width | 17.01" (432.05 mm) |
| Depth | 25" (635 mm) |
| Rack Height | 2U |
| Form Factor | Rack/Tower |
| Weight (Approximate) | 69 lb (31297.87 g) |
| Miscellaneous | |
| Package Contents | Smart-UPS On-Line SRT 3000VA Rack/Tower UPS CD with software |
| Energy Star | Yes |
| Country of Origin | Mexico |
| TAA Compliant | Yes |
| Energy Efficiency Certification | ENERGY STAR 2.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | Battery: 24 month(s)|UPS: 36 month(s) |
User Manual
FAQ
What is the power capacity of this APC Smart-UPS?
This Smart-UPS On-Line model provides 3 kVA (3000 VA) and 2.7 kW of power capacity. It delivers double-conversion online protection with pure sine wave output at 120V input and output voltage, suitable for protecting servers, storage arrays, and network equipment in critical IT environments.
Can this UPS be used in both rackmount and tower configurations?
Yes, this UPS features a rack/tower convertible design. It comes as a 2U rackmount unit with an included rail kit for standard server rack installation. The same unit can also be deployed as a standalone tower, providing flexibility for different installation environments including server rooms, network closets, and light industrial applications.
What type of network management capabilities does this UPS include?
This UPS comes with a preinstalled Network Management Card that enables remote monitoring, management, and control over network connections. It supports graceful shutdown of physical servers, virtual machines, and hyperconverged infrastructure clusters, allowing for automated system protection during extended power outages.
How many outlets does this UPS have and what types are they?
The UPS features nine total outlets: eight NEMA 5-20R outlets and one NEMA L5-30R outlet. This configuration supports a variety of equipment types, with the L5-30R outlet suitable for higher-power devices. The 7.9-foot power cord provides flexibility in placement relative to power sources.
Can the battery runtime be extended on this UPS?
Yes, this Smart-UPS On-Line model supports the addition of up to 10 external battery packs (SRT96RMBP) to extend runtime beyond the standard battery capacity. This scalability makes it suitable for environments requiring longer backup durations or higher power loads during outages.
What certifications and compliance does this UPS meet?
This UPS is ENERGY STAR 2.0 certified for energy efficiency and is TAA compliant for government and educational procurement. It also meets RoHS and REACH environmental compliance standards. The unit carries a 3-year limited warranty with 24-month battery coverage, providing comprehensive protection for your investment.
What power capacity is listed for this UPS?
The listed power specification is 3 kVA, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 120 V AC, which helps position the unit for the right load level and installation role.
