APC by Schneider Electric SRT5KRMXLT-5KTF-A APC Smart-UPS On-Line 5kVA/4. 8kW Rackmount UPS - 208V - 5U - 16 Outlets - Network Card - Rail Kit
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This Smart-UPS On-Line model operates on a single-phase 208V AC input and delivers a stable 208V AC pure sine wave output, ensuring compatibility with sensitive server and network equipment. The double-conversion online topology provides zero transfer time to battery, offering seamless protection against power anomalies.

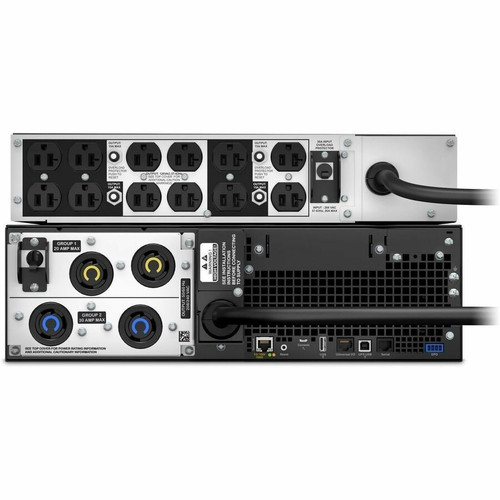

The unit offers a surge energy rating of 480 joules and includes a comprehensive set of 16 outlets: twelve NEMA 5-20R, two NEMA L6-20R, and two NEMA L6-30R receptacles, fed by a 10-foot NEMA L6-30P input cord. Battery management features lead-acid chemistry, a typical recharge time of 1.5 hours, and user-replaceable battery packs.
This section brings together practical product details such as Plug/Connector Type, Receptacle Type, Receptacle Detail, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The SRT5KRMXLT-5KTF-A combines high-capacity power protection with advanced management features in a rack-optimized form factor. Its integrated transformer and extensive outlet configuration make it a versatile solution for mixed-equipment environments.
Advanced Power Quality
Double-conversion online technology with pure sine wave output ensures clean, stable power for sensitive electronics, eliminating transfer time during outages.
- Zero transfer time
- Voltage regulation
- Frequency regulation
Comprehensive Management
Built-in Network Management Card enables remote monitoring, configuration, and shutdown via SNMP, web, or Telnet. The SmartSlot allows for additional communication or environmental monitoring cards.
- Remote monitoring
- SNMP/Web management
- Dry contact support
Rack-Ready Design
Includes a full rail kit for secure 5U rack mounting. The robust construction supports heavy equipment with dimensions optimized for standard server racks.
- 5U rack height
- Included mounting rails
- Heavy-duty construction
Deployment / Use Cases
This UPS is engineered for environments where power continuity is non-negotiable. Its 5kVA capacity and 208V configuration make it suitable for protecting server racks, network closets, and industrial control systems where three-phase power is not available or required.
Typical applications include data center server racks, storage arrays, network equipment stacks, medical laboratory instruments, and light industrial machinery. The extensive outlet mix supports both standard 120V equipment (via the integrated transformer) and 208V devices directly, providing flexibility in mixed-voltage environments.
Server & Storage Protection
Ideal for rack-mounted servers, hyperconverged infrastructure (HCI), and storage arrays in small to medium data centers or server rooms.
Network & Telecom Infrastructure
Protects switches, routers, and communication equipment in network operations centers and telecom installations.
Critical Industrial & Medical Systems
Safeguards sensitive medical diagnostic equipment, laboratory instruments, and industrial control systems against power disturbances.
Physical Profile
The UPS features a black, rack-mountable chassis measuring 8.58" (H) x 17.01" (W) x 28.31" (D), occupying 5U of vertical rack space. With an approximate weight of 217.99 pounds, it is designed for stable installation in standard 19-inch server racks. The included rail kit simplifies mounting and ensures proper weight distribution.
- Width
- 17.01" (432.05 mm)
- Depth
- 28.31" (719.07 mm)
- Height
- 8.58" (217.93 mm)
- Weight
- 217.99 lb (98878.60 g)
- Length
- 10 ft (3.05 m)
What's in the Box
The package includes all necessary components for immediate deployment and operation.
Highlights
- 5kVA/4.8kW double-conversion online UPS with pure sine wave output.
- 208V input and output voltage with integrated 208V to 120V transformer.
- 16 total outlets: 12x NEMA 5-20R, 2x NEMA L6-20R, 2x NEMA L6-30R.
- Includes Network Management Card for remote monitoring and control.
- SmartSlot allows for additional communication or monitoring cards.
- 5U rackmount form factor with included rail kit for easy installation.
- Lead-acid battery with user-replaceable design and 1.5-hour typical recharge time.
- Manufactured in the United States, TAA compliant, and ENERGY STAR 2.0 certified.
- 3-year UPS warranty with 2-year battery warranty.
- RoHS and REACH environmental compliance.
Specifications
| Specifications | |
|---|---|
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SRT5KRMXLT-5KTF-A |
| Brand Name | Schneider Electric |
| Product Line | Smart-UPS On-Line |
| Product Name | Smart-UPS On-Line 5000VA Rack-mountable UPS |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Plug/Connector Type | NEMA L6-30P |
| Receptacle Type | NEMA 5-20R,NEMA L6-20R,NEMA L6-30R |
| Receptacle Detail | 12 x NEMA 5-20R,2 x NEMA L6-20R,2 x NEMA L6-30R |
| Cord Length | 10 ft (3.05 m) |
| Phase | Single Phase |
| Application/Usage | Network,Server,IT,Network Device,Critical System,Virtual Machine,Hyperconverged Infrastructure (HCI),Storage,Network Equipment,Medical,Industrial |
| Power Description | |
| Load Capacity (VA) | 5 kVA |
| Load Capacity (Watt) | 4.80 kW |
| Input Voltage | 208 V AC |
| Output Voltage | 208 V AC |
| Waveform Type | Pure Sine Wave |
| Surge Energy Rating | 480 J |
| Management | |
| Network Management | Network Card,SmartSlot,Dry Contact,SNMP/Webcard |
| Interfaces/Ports | |
| USB | Yes |
| Battery Information | |
| Battery Chemistry | Lead Acid |
| Typical Battery Recharge Time | 1.50 Hour |
| Replaceable Battery | Yes |
| Physical Characteristics | |
| Product Color | Black |
| Height | 8.58" (217.93 mm) |
| Width | 17.01" (432.05 mm) |
| Depth | 28.31" (719.07 mm) |
| Rack Height | 5U |
| Form Factor | Rack-mountable |
| Weight (Approximate) | 217.99 lb (98878.60 g) |
| Miscellaneous | |
| Package Contents | Smart-UPS On-Line 5000VA Rack-mountable UPS Documentation CD Rack Mounting Hardware Rack Mounting Brackets Rack Mounting Support Rails User Manual USB Cable Warranty Card Web/SNMP Management Card |
| Energy Star | Yes |
| Country of Origin | United States |
| TAA Compliant | Yes |
| Energy Efficiency Certification | ENERGY STAR 2.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | Battery: 24 month(s)|UPS: 36 month(s) |
User Manual
FAQ
What is the power capacity of this APC Smart-UPS?
This Smart-UPS On-Line model provides 5 kVA (5000 VA) and 4.8 kW of power capacity. It is designed to support critical loads such as servers, storage arrays, and network equipment in a rackmount environment, delivering pure sine wave output for sensitive electronics.
What input and output voltages does this UPS support?
The UPS operates with a single-phase 208V AC input and provides a stable 208V AC output. It includes an integrated transformer that also supplies 120V power through its NEMA 5-20R outlets, making it suitable for mixed-voltage equipment deployments.
How many outlets does this rackmount UPS have and what types?
It features 16 outlets in total: twelve NEMA 5-20R (120V), two NEMA L6-20R (208V), and two NEMA L6-30R (208V) receptacles. This configuration allows you to power a combination of standard and high-voltage devices directly from the unit.
What management features are included with this Smart-UPS?
The UPS comes with a built-in Network Management Card that supports remote monitoring, configuration, and shutdown via SNMP, web interface, or Telnet. It also includes a SmartSlot for adding optional communication or environmental monitoring cards, and dry contact relay for integration with building management systems.
Is this UPS rack-mountable and what are its physical dimensions?
Yes, it is designed for rackmount installation and occupies 5U of vertical space in a standard 19-inch rack. Its dimensions are 8.58 inches high, 17.01 inches wide, and 28.31 inches deep. A complete rail kit is included for secure mounting.
What is the warranty coverage for this APC Smart-UPS?
The UPS is backed by a 3-year warranty for the unit itself and a 2-year warranty for the batteries. This coverage includes repair or replacement for defects in materials or workmanship, providing long-term protection for your investment.
What power capacity is listed for this UPS?
The listed power specification is 5 kVA, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 208 V AC, which helps position the unit for the right load level and installation role.
