APC by Schneider Electric SRT6KRMXLIM APC Smart-UPS SRT 6kVA/6kW Double-Conversion Online UPS - 4U Rackmount - 230V - 13 Outlets - Network Card
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This double-conversion online UPS maintains consistent 230V AC output regardless of input fluctuations within the 160-275V AC range. The pure sine wave technology ensures compatibility with active PFC power supplies found in modern servers and networking gear. The 480J surge energy rating provides robust protection against voltage spikes and transients.
The integrated network management card enables remote monitoring and management via web, SNMP, or Telnet interfaces, with a 1-year secure subscription included. The SmartSlot allows for additional communication modules such as environmental monitoring or dry contact cards. The hot-swappable battery design facilitates maintenance without powering down connected equipment, while the typical recharge time is 1.5 hours.
This section brings together practical product details such as Number of Battery & Surge Outlets, Load Capacity (VA), Load Capacity (Watt), Input Voltage, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The Smart-UPS SRT series represents APC's premium line of online UPS systems designed for maximum power protection and management capabilities. This 6000VA model combines industrial-grade power conditioning with enterprise management features in a rack-optimized package.
Zero Transfer Time Protection
Double-conversion technology eliminates transfer time between utility and battery power, providing seamless protection for sensitive equipment that cannot tolerate even momentary power interruptions.
- Continuous power conditioning
- Eliminates switching gaps
- Ideal for medical and lab equipment
Scalable Runtime Architecture
Support for up to 10 external SRT192RMBP battery packs allows organizations to extend runtime from the base 3 minutes at full load to several hours based on specific backup requirements.
- External battery pack compatible
- Modular runtime expansion
- Flexible deployment options
Comprehensive Management Suite
The embedded network card with 1-year secure subscription provides complete visibility and control over power events, battery status, and environmental conditions through multiple management interfaces.
- Web/SNMP/Telnet management
- Graceful shutdown capabilities
- Virtual machine and HCI support
Deployment / Use Cases
This UPS is specifically designed for IT infrastructure in environments where power quality and reliability are critical. The marine-rated construction makes it suitable for controlled marine applications, while its robust power protection capabilities serve equally well in terrestrial data centers and server rooms.
Primary deployment scenarios include server racks supporting business applications, storage arrays requiring clean power for data integrity, voice/data network equipment maintaining communication continuity, and medical laboratory instruments sensitive to power fluctuations. The rack/tower convertible design with included rail kit provides installation flexibility for both dedicated rack environments and standalone tower applications.
Data Center Server Protection
Protect rack-mounted servers and networking equipment with clean sine wave power and network-based management for automated shutdown during extended outages.
Storage Array Power Conditioning
Ensure data integrity for SAN/NAS systems by eliminating power anomalies that can cause data corruption or hardware damage in storage infrastructure.
Medical & Laboratory Applications
Provide uninterrupted power for diagnostic equipment, lab instruments, and medical devices where power interruptions could compromise results or patient safety.

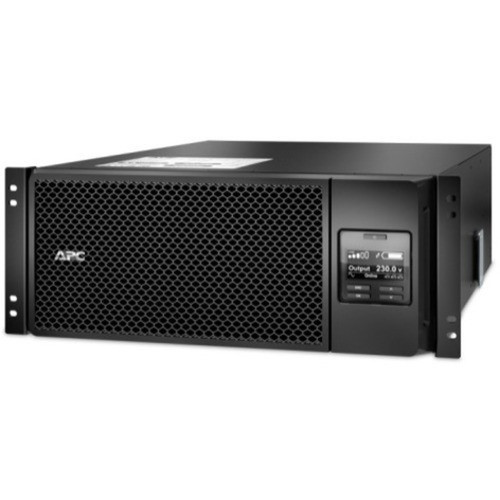

Physical Profile
The UPS occupies 4U of standard 19-inch rack space with dimensions of 6.85" height (174 mm), 17.01" width (432 mm), and 28.31" depth (719 mm). The black finish matches standard rack equipment aesthetics, while the 132.28 lb weight requires proper rack mounting consideration. The included rail kit supports secure installation in standard server racks, and the design accommodates both front-to-back and rear-to-front airflow configurations common in data center environments.
- Width
- 17.01" (432 mm)
- Depth
- 28.31" (719 mm)
- Height
- 6.85" (174 mm)
- Weight
- 132.28 lb (60000 g)
What's in the Box
The package includes all necessary components for immediate deployment and management of the UPS system.
Highlights
- 6kVA/6kW double-conversion online UPS with pure sine wave output
- 4U rackmount form factor with included rail kit for rack/tower deployment
- 230V input/output with 160-275V AC input range for wide compatibility

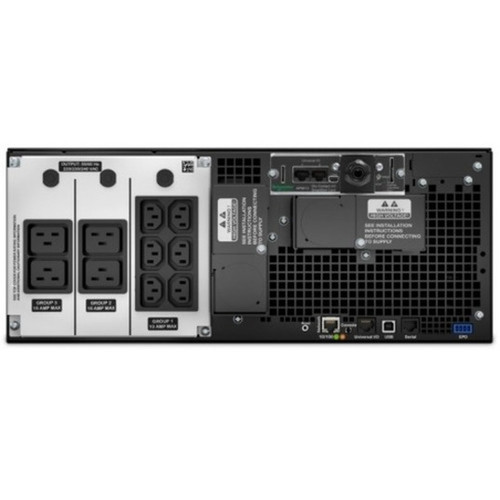

- 13 total outlets (6x C13 + 4x C19) for comprehensive device connectivity
- Embedded network management card with 1-year secure subscription
- SmartSlot for additional communication and monitoring modules
- Hot-swappable lead acid batteries with 3-minute runtime at full load
- Support for up to 10 external battery packs (SRT192RMBP) for extended runtime
- Marine-rated construction for controlled marine environments
- 3-year UPS warranty with 2-year battery warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SRT6KRMXLIM |
| Brand Name | APC by Schneider Electric |
| Product Line | Smart-UPS SRT |
| Product Name | Smart-UPS SRT 6000VA RM 230V Marine |
| Packaged Quantity | 1 Each |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Number of Battery & Surge Outlets | 13 |
| Power Description | |
| Load Capacity (VA) | 6 kVA |
| Load Capacity (Watt) | 6 kW |
| Input Voltage | 230 V |
| Input Voltage Range | 160 V AC - 275 V AC |
| Output Voltage | 230 V AC |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 480 J |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Battery Information | |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 3 Minute |
| Hot Swappable | Yes |
| Typical Battery Recharge Time | 1.50 Hour |
| Physical Characteristics | |
| Product Color | Black |
| Height | 6.85" (174 mm) |
| Width | 17.01" (432 mm) |
| Depth | 28.31" (719 mm) |
| Rack Height | 4U |
| Form Factor | Rack-mountable |
| Weight (Approximate) | 132.28 lb (60000 g) |
| Miscellaneous | |
| Package Contents | Smart-UPS SRT 6000VA RM 230V Marine CD with software Installation guide Rack mounting brackets Rack mounting hardware Rack mounting support rails Temperature probe USB cable Warranty card |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | Battery: 24 month(s)|UPS: 36 month(s) |
User Manual
FAQ
What is the power capacity of this APC Smart-UPS SRT unit?
This UPS provides 6 kVA (6000 VA) and 6 kW of power capacity, making it suitable for protecting medium to large server racks, storage arrays, or networking equipment. The double-conversion online technology ensures clean sine wave output regardless of input power quality.
How many outlets does this rackmount UPS have and what types?
The unit features 13 total battery and surge-protected outlets, consisting of 6 C13 outlets and 4 C19 outlets. This outlet configuration supports a mix of server, networking, and storage equipment commonly found in rack environments, with C19 outlets accommodating higher-power devices.
What is the runtime at full load for this 6000VA UPS?
At full 6kW load, the internal batteries provide approximately 3 minutes of runtime. This base runtime can be significantly extended by adding external battery packs, with support for up to 10 SRT192RMBP units to achieve several hours of backup time based on actual load conditions.
Does this UPS include network management capabilities?
Yes, the unit comes with an embedded network management card that includes a 1-year secure subscription. This enables remote monitoring and management via web interface, SNMP, or Telnet, along with graceful shutdown capabilities for physical servers, virtual machines, and hyper-converged infrastructure clusters.
What rack space does this UPS require for installation?
The UPS occupies 4U of standard 19-inch rack space with dimensions of 6.85" height, 17.01" width, and 28.31" depth. The package includes a complete rail kit with mounting brackets, hardware, and support rails for secure installation in standard server racks.
What warranty coverage comes with this Smart-UPS SRT unit?
APC provides a 3-year warranty for the UPS unit and a 2-year warranty for the batteries. The warranty covers defects in materials and workmanship, with the environmentally friendly design and hot-swappable battery architecture supporting reliable long-term operation in demanding IT environments.
What power capacity is listed for this UPS?
The listed power specification is 6 kVA, which helps position the unit for the right load level and installation role.
How many outlets are available?
The product includes 13, which helps buyers understand how many connected devices it can support in its intended deployment.
