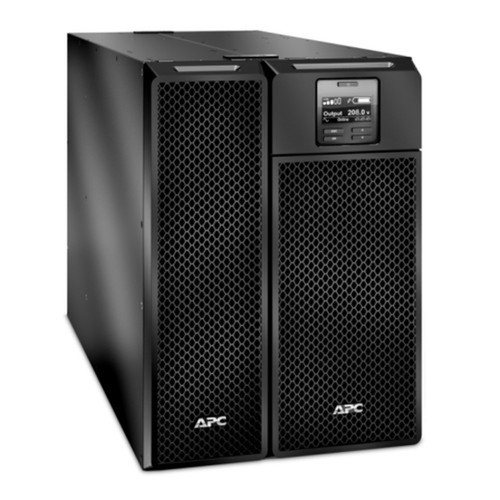

APC by Schneider Electric SRT6KXLT-5KTF Smart-UPS On-Line 6kVA/6kW Tower UPS 208V with 16 Outlets & Step-Down Transformer
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This section brings together practical product details such as Receptacle Type, Receptacle Detail, Number of Battery & Surge Outlets, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Double-Conversion Architecture
Continuously converts incoming AC power to DC and back to clean AC, ensuring output is always isolated from input power quality issues. This provides true online protection with no transfer switches.
- Zero transfer time to battery
- Complete isolation from grid noise and harmonics
- Regulated voltage and frequency output
Voltage Transformation
The integrated step-down transformer enables direct connection to 208V or 240V power sources while providing 120V output for standard IT equipment, eliminating the need for external transformers.
- 208/240V input to 120V output conversion
- Supports mixed-voltage environments
- Simplifies rack power distribution
Key Product Advantages
This Smart-UPS SRT model delivers enterprise-grade power protection with features specifically designed for modern data center and network closet deployments. The combination of robust power capacity, flexible voltage handling, and comprehensive management capabilities makes it a cornerstone of reliable infrastructure.
Integrated Management & Expansion
Includes an embedded Network Management Card with a 1-year secure subscription for remote monitoring and control via web, SNMP, or Telnet. The SmartSlot accommodates additional communication cards for integration with building management systems or environmental monitoring.
- Network-based UPS management
- Graceful shutdown for physical/virtual servers
- Temperature probe included for environmental monitoring
Scalable Runtime
Supports connection of up to 10 external APC SRT192BP battery packs, allowing runtime extension to meet specific backup requirements without replacing the core UPS unit.
- External battery pack compatibility
- Modular runtime expansion
- Maintains original warranty when using APC packs
Deployment / Use Cases
The 6kVA capacity and robust outlet configuration make this UPS ideal for protecting consolidated server racks, storage arrays, and network infrastructure in medium to large business environments. Its double-conversion technology ensures sensitive medical, laboratory, and industrial equipment receive clean power regardless of utility quality.
The rack/tower convertible design provides installation flexibility for both dedicated server rooms and office environments where floor space is at a premium. The removable support feet allow quick conversion between tower placement and rack mounting with optional rail kits.
Server & Storage Protection
Provides clean power for rack-mounted servers, storage systems, and network switches, preventing data corruption and hardware damage from power disturbances.
- Protects virtual machine clusters
- Supports hyper-converged infrastructure
- Maintains storage array integrity
Critical Environment Applications
Suitable for medical equipment, laboratory instruments, and light industrial controls where power quality directly impacts operational safety and data accuracy.
- Medical imaging and diagnostic equipment
- Laboratory analytical instruments
- Industrial process controls
Physical Profile
This black tower UPS measures 17.01" H × 11.97" W × 28.31" D (432 × 304 × 719 mm) and weighs approximately 260 pounds. The rack-mountable design includes removable support feet for tower placement, with optional SRTRK2 or SRTRK3 rail kits available for secure rack installation. The substantial weight and dimensions reflect the robust transformer and battery components necessary for 6kVA power delivery.
- Width
- 11.97" (304 mm)
- Depth
- 28.31" (719 mm)
- Height
- 17.01" (432 mm)
- Weight
- 259.99 lb (117929.48 g)
What's in the Box
The package includes everything needed for basic deployment and management of the UPS system.
Highlights
- 6kVA/6kW double-conversion online UPS with pure sine wave output
- Built-in 208/240V to 120V step-down transformer for mixed-voltage environments
- 16 total outlets with multiple NEMA receptacle types (5-20R, L6-20R, L6-30R, L14-30R)
- Embedded Network Management Card with 1-year secure subscription included
- Rack/tower convertible design with removable support feet
- Supports up to 10 external battery packs (SRT192BP) for extended runtime
- Zero transfer time double-conversion technology for critical equipment
- SmartSlot for additional communication and management card options
- 3-year UPS warranty with 2-year battery warranty
- RoHS compliant and manufactured in the Philippines
Specifications
| Specifications | |
|---|---|
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SRT6KXLT-5KTF |
| Brand Name | APC by Schneider Electric |
| Product Line | Smart-UPS On-Line |
| Product Name | Smart-UPS SRT 6000VA with 208/240V to 120V Step-Down Transformer |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Receptacle Type | NEMA 5-20R,NEMA L6-20R,NEMA L6-30R,NEMA L14-30R |
| Receptacle Detail | 1 x Hard Wire 3-wire (2PH + G),8 x NEMA 5-20R,4 x NEMA L6-20R,3 x NEMA L6-30R,1 x NEMA L14-30R |
| Number of Battery & Surge Outlets | 16 |
| Phase | Single Phase |
| Power Description | |
| Load Capacity (VA) | 6 kVA |
| Load Capacity (Watt) | 6 kW |
| Input Voltage | 208 V AC,240 V AC |
| Output Voltage | 120 V AC,208 V AC,240 V AC |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 480 J |
| Battery Information | |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 2 Minute |
| Typical Battery Recharge Time | 1.50 Hour |
| Physical Characteristics | |
| Product Color | Black |
| Height | 17.01" (432 mm) |
| Width | 11.97" (304 mm) |
| Depth | 28.31" (719 mm) |
| Form Factor | Rack-mountable |
| Weight (Approximate) | 259.99 lb (117929.48 g) |
| Miscellaneous | |
| Package Contents | Smart-UPS SRT 6000VA with 208/240V to 120V Step-Down Transformer CD with software Documentation CD Installation guide Removable support feet Temperature probe USB cable User manual Warranty card Web/SNMP management card |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | UPS: 36 month(s)|Battery: 24 month(s) |
User Manual
FAQ
What is the power capacity of this APC Smart-UPS?
This Smart-UPS SRT model delivers 6 kVA (6000 VA) and 6 kW of power capacity. This double-conversion online UPS can support substantial server, storage, and network equipment loads while providing pure sine wave output with zero transfer time to battery during outages.
What input and output voltages does this UPS support?
The unit accepts 208V or 240V AC input and provides 120V, 208V, or 240V AC output through its integrated step-down transformer. This voltage flexibility makes it suitable for environments with mixed-voltage equipment or where 208V power is available but 120V output is required for standard IT gear.
How many outlets does this UPS have and what types?
This Smart-UPS features 16 total battery and surge-protected outlets with a mix of NEMA receptacle types: 8× NEMA 5-20R, 4× NEMA L6-20R, 3× NEMA L6-30R, and 1× NEMA L14-30R. This diverse outlet configuration accommodates everything from standard server power cords to higher-amperage equipment connections in a single unit.
What is the runtime at full load for this 6kVA UPS?
At full 6kW load, the internal batteries provide approximately 2 minutes of runtime. This gives sufficient time for connected equipment to perform graceful shutdowns or for backup generators to start. Runtime can be extended significantly by adding up to 10 external APC SRT192BP battery packs.
Can this UPS be mounted in a server rack?
Yes, this is a rack/tower convertible UPS designed for both floor and rack mounting. It includes removable support feet for tower placement, and optional APC SRTRK2 or SRTRK3 rail kits (sold separately) enable secure installation in standard 19-inch server racks. The unit measures approximately 10U in height when rack-mounted.
What management capabilities are included with this UPS?
The unit includes an embedded Network Management Card with a 1-year secure subscription, enabling remote monitoring and management via web interface, SNMP, or Telnet. It also features a SmartSlot for additional communication cards and includes a temperature probe for environmental monitoring. These tools support graceful shutdown of physical servers, virtual machines, and hyper-converged infrastructure.
What power capacity is listed for this UPS?
The listed power specification is 6 kVA, which helps position the unit for the right load level and installation role.
How many outlets are available?
The product includes 16, which helps buyers understand how many connected devices it can support in its intended deployment.
