APC by Schneider Electric SURT1000XLIM APC Smart-UPS RT 1000VA 230V - Marine - 2U Rack-mountable - 700W - 14 Min Full Load Runtime - 3 Hour Recharge
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This Smart-UPS RT model operates on a double-conversion online topology, continuously converting incoming AC power to DC and then back to a clean, regulated AC output. This process isolates connected equipment from all common power problems, including surges, sags, spikes, and electrical noise. The unit accepts a 230V input and provides output at 230V AC or 240V AC, with a sine wave waveform that is fully compatible with sensitive server power supplies and networking gear.
The internal battery system features a single, maintenance-free, sealed lead-acid battery that is both spill-proof and user-replaceable. A serial port provides a direct interface for advanced monitoring and management, enabling integration with network management systems for proactive power oversight. The unit's surge energy rating of 420 joules offers additional protection against transient voltage spikes.
Key Product Advantages
The Smart-UPS RT 1000VA stands out with features specifically tailored for reliability and serviceability in critical deployments. Its marine certification and high-temperature tolerance ensure operation in environments where other UPS units would fail.
Uninterrupted Serviceability
The hot-swappable battery can be replaced from the front of the unit without tools and without interrupting power to the connected load, eliminating planned downtime for battery maintenance.
- Front-accessible design
- No tools required for replacement
- Zero downtime during swap
Environmental Hardening
Built to withstand the rigors of marine and industrial applications, this UPS is DNV type approved and operates reliably at temperatures up to 55°C (131°F).
- DNV certification for marine use
- Extended temperature range
- Robust construction
Clean Power Delivery
The double-conversion online technology and pure sine wave output guarantee that sensitive electronics receive clean, stable power regardless of the quality of the incoming utility power.
- Isolates equipment from grid issues
- Pure sine wave output
- Full power conditioning
Deployment / Use Cases
This UPS is purpose-built for scenarios where power quality and availability are directly tied to operational safety and continuity. Its primary role is protecting critical loads in environments with unstable power grids or harsh physical conditions.
On maritime vessels, it safeguards navigation, communication, and control systems. In industrial settings, it ensures the continuous operation of process control systems, safety monitors, and data acquisition units. Within data centers and network closets, its rack-mount form factor and high power density make it an efficient choice for protecting blade servers, network switches, and storage arrays.
This section brings together practical product details such as Plug/Connector Type, Number of Battery & Surge Outlets, Cord Length, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Physical Profile

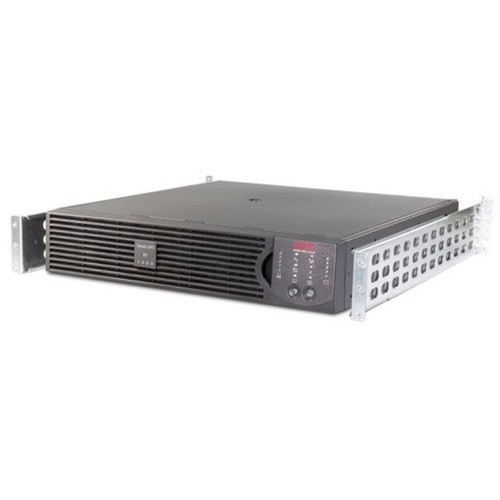

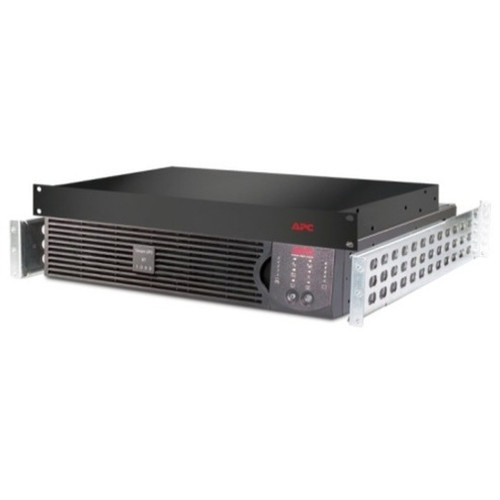

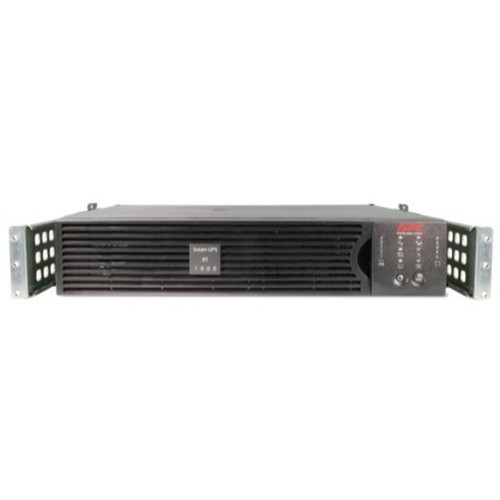

The UPS features a sleek black chassis designed for standard 19-inch rack mounting. Its compact 2U height (3.35" wide x 17.01" high x 19.02" deep) conserves valuable rack space. The design includes clear status indicators and accessible controls on the front panel. Despite its robust power capacity, the unit's weight of approximately 50.7 lbs requires proper rack mounting consideration and support.
- Width
- 3.35" (85 mm)
- Depth
- 19.02" (483 mm)
- Height
- 17.01" (432 mm)
- Weight
- 50.71 lb (23000 g)
- Length
- 8.2 ft (2.50 m)
What's in the Box
The package includes all necessary components for immediate deployment and management of the UPS system.
Highlights
- 1 kVA / 700W double-conversion online UPS for maximum power protection
- DNV type approved for reliable operation in marine and harsh industrial environments
- Hot-swappable, front-accessible battery for maintenance without downtime
- 2U rack-mountable form factor with a compact, space-saving design
- 14-minute runtime at full load (700W), 32 minutes at half load (350W)
- Typical battery recharge time of 3 hours for quick recovery
- Pure sine wave output compatible with sensitive server and networking equipment
- Frequency conversion function supports 50Hz to 60Hz operation
- Serial port for direct monitoring and management integration
- 2-year limited warranty backed by Schneider Electric
Specifications
| Specifications | |
|---|---|
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SURT1000XLIM |
| Brand Name | Schneider Electric |
| Product Line | Smart-UPS |
| Product Name | Smart-UPS 1000 VA Tower/Rack Mountable UPS |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Plug/Connector Type | IEC 60320 C14 |
| Number of Battery & Surge Outlets | 2 |
| Cord Length | 8.2 ft (2.50 m) |
| Power Description | |
| Load Capacity (VA) | 1 kVA |
| Load Capacity (Watt) | 700 W |
| Input Voltage | 230 V |
| Output Voltage | 230 V AC,240 V AC |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 420 J |
| Interfaces/Ports | |
| Serial Port | Yes |
| Battery Information | |
| Number of Batteries | 1 |
| Battery Characteristics | Maintenance-free, Sealed, Spill-proof |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 14 Minute |
| Backup/Run Time (Half Load) | 32 Minute |
| Hot Swappable | Yes |
| Typical Battery Recharge Time | 3 Hour |
| Physical Characteristics | |
| Product Color | Black |
| Height | 17.01" (432 mm) |
| Width | 3.35" (85 mm) |
| Depth | 19.02" (483 mm) |
| Rack Height | 2U |
| Form Factor | Rack-mountable |
| Weight (Approximate) | 50.71 lb (23000 g) |
| Miscellaneous | |
| Package Contents | Smart-UPS 1000 VA Tower/Rack Mountable UPS CD with software Relay board Smart UPS signalling RS-232 cable User manual |
| Environmentally Friendly | Yes |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What is the power capacity of this APC Smart-UPS?
This APC Smart-UPS RT model provides a load capacity of 1 kVA (1000 VA) and 700 watts. It is designed to support critical equipment with a combined power draw up to 700W, making it suitable for protecting a server, network switch, or a small cluster of devices in a rack.
How long will this UPS run on battery power?
The runtime depends on the actual load connected. At its maximum rated load of 700 watts (full load), the battery will provide approximately 14 minutes of backup power. If the connected load is reduced to 350 watts (half load), the runtime extends to about 32 minutes. These figures allow for a safe, controlled shutdown of equipment.
Is this UPS rack-mountable, and what size rack space does it need?
Yes, this UPS is designed for rack-mount installation. It occupies 2U of vertical space in a standard 19-inch equipment rack. Its dimensions are 3.35 inches wide, 17.01 inches high, and 19.02 inches deep, providing a high power capacity in a compact form factor ideal for server rooms and network cabinets.
What does 'hot-swappable battery' mean for this unit?
The hot-swappable battery feature allows you to remove and replace the UPS's internal battery while the unit remains powered on and continues to supply power to your connected equipment. The battery is front-accessible and user-replaceable, enabling proactive battery maintenance or replacement without causing any interruption to your critical systems.
What input and output voltages does this UPS support?
This UPS is designed for 230-volt electrical systems. It requires a 230V AC input. It provides a regulated output of 230V AC and can also support 240V AC output. The pure sine wave output ensures compatibility with modern, sensitive electronic power supplies.
What is included in the box with the UPS?
The package includes the Smart-UPS 1000 VA Tower/Rack Mountable UPS unit itself, a CD containing management and monitoring software, a relay board for external alarm signaling, a Smart UPS signalling RS-232 cable for direct communication with a management device, and a comprehensive user manual to guide installation and operation.
What power capacity is listed for this UPS?
The listed power specification is 1 kVA, which helps position the unit for the right load level and installation role.
How many outlets are available?
The product includes 2, which helps buyers understand how many connected devices it can support in its intended deployment.
