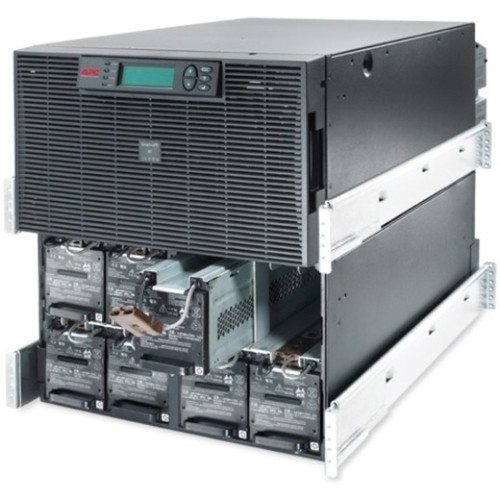

APC by Schneider Electric SURT15KRMXLT APC Smart-UPS RT 15kVA Rackmount UPS - 208/240V - 12U - 6 Outlets - SNMP - 8. 3 Min Full Load
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This section brings together practical product details such as Plug/Connector Type, Receptacle Type, Receptacle Detail, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Double-Conversion Online Topology
This online UPS continuously conditions incoming power, providing isolation from grid disturbances, voltage fluctuations, and frequency variations. The output is a stable sine wave, essential for sensitive electronics and motor-driven equipment.
- Input Frequency: 70 Hz
- Output Frequency: 60 Hz
- Waveform Type: Sine Wave
Battery System
The sealed lead-acid battery is maintenance-free and spill-proof, designed for safety and longevity in data center and industrial settings. It recharges fully within approximately 2 hours after a discharge event.
- Battery Chemistry: Lead Acid
- Typical Recharge Time: 2 Hour
- Characteristics: Maintenance-free/Sealed/Spill Proof
Key Product Advantages
This Smart-UPS RT model combines high power capacity with rack-optimized design, making it a cornerstone for infrastructure power protection. Its double-conversion technology ensures output purity, while flexible voltage support adapts to various electrical environments.
Flexible Power Distribution
The outlet configuration includes a hardwired 3-wire connection for direct wiring, plus four NEMA L6-20R and two NEMA L6-30R receptacles. This mix supports both permanent and plug-in loads, simplifying deployment in mixed-equipment racks.
Integrated Management
SNMP manageability allows network integration for remote monitoring, alerts, and shutdown commands. The serial port and RJ-45 network interface provide multiple connectivity options, and the SmartSlot accepts optional management cards for expanded functionality.
Rack-Ready Design
Pre-configured for 12U rack mounting with included support rails, this UPS minimizes installation time. Its black finish blends with standard rack aesthetics, and the robust construction handles the substantial weight of high-capacity battery systems.
Deployment / Use Cases
The 15kVA capacity and rackmount form factor make this UPS ideal for server rooms, network closets, and industrial control panels where space is at a premium and power demands are high. It protects critical loads from outages, surges, and frequency irregularities.
Common applications include supporting blade server enclosures, storage arrays, networking gear, and PLC systems in manufacturing or utility environments. The user-selectable 208V/240V output suits both North American three-phase derived power and standard single-phase circuits.
Data Center Rack Power
Deploy in standard 19-inch racks to power multiple servers, switches, and storage devices. The 15 kVA rating supports high-density configurations, and SNMP management enables integration with data center infrastructure management (DCIM) tools.
Industrial Equipment Backup
Use in manufacturing or processing facilities to backup programmable logic controllers (PLCs), HMIs, and instrumentation. The sine wave output and voltage tolerance ensure compatibility with motor drives and sensitive industrial electronics.
Physical Profile
Designed for rack installation, this UPS occupies 12U of vertical space with dimensions of 20.98" height, 17.01" width, and 30.43" depth. The black enclosure matches standard rack aesthetics, and the substantial weight of 546.15 pounds requires proper rack reinforcement and handling equipment during installation.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 12U, 17.01" (432 mm), 30.43" (773 mm), 546.15 lb (247729.47 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 17.01" (432 mm)
- Depth
- 30.43" (773 mm)
- Height
- 12U
- Weight
- 546.15 lb (247729.47 g)
What's in the Box
The package includes all necessary components for immediate deployment, ensuring a complete out-of-the-box solution for rackmount power protection.
Highlights
- 15 kVA double-conversion online UPS for critical power protection.
- Rackmount 12U form factor with included mounting rails.
- User-selectable 208V or 240V input and output voltage.
- 6 total outlets: 1 hardwired, 4 NEMA L6-20R, 2 NEMA L6-30R.
- SNMP manageable with serial and RJ-45 network interfaces.
- 8.3-minute full load and 22.4-minute half load runtime.
- Maintenance-free sealed lead-acid battery with 2-hour recharge.
- RoHS compliant and backed by a 2-year warranty.
Specifications
| Specifications | |
|---|---|
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SURT15KRMXLT |
| Brand Name | APC by Schneider Electric |
| Product Line | Smart-UPS |
| Product Series | RT |
| Product Name | Smart-UPS RT 15kVA Tower/Rack-mountable UPS |
| Product Type | Online UPS |
| Technical Information | |
| Plug/Connector Type | Hard Wire 3-wire |
| Receptacle Type | Hard Wire 3-wire (2PH + G),NEMA L6-20R,NEMA L6-30R |
| Receptacle Detail | 1 x Hard Wire 3-wire (2PH + G),4 x NEMA L6-20R,2 x NEMA L6-30R |
| Number of Battery & Surge Outlets | 6 |
| Overload Protection | Yes |
| Phase | Single Phase |
| Power Description | |
| Load Capacity (VA) | 15 kVA |
| Input Voltage | 208 V AC,240 V AC |
| Output Voltage | 208 V AC,240 V AC |
| Input Frequency | 70 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | Sine Wave |
| Management | |
| Network Management | SNMP Manageable |
| Interfaces/Ports | |
| Serial Port | Yes |
| Network (RJ-45) | Yes |
| Battery Information | |
| Battery Characteristics | Maintenance-free/Sealed/Spill Proof |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 8.30 Minute |
| Backup/Run Time (Half Load) | 22.40 Minute |
| Typical Battery Recharge Time | 2 Hour |
| Physical Characteristics | |
| Product Color | Black |
| Form Factor | Rack-mountable |
| Rack Height | 12U |
| Height | 20.98" (533 mm) |
| Width | 17.01" (432 mm) |
| Depth | 30.43" (773 mm) |
| Weight (Approximate) | 546.15 lb (247729.47 g) |
| Miscellaneous | |
| Package Contents | Smart-UPS RT 15kVA Tower/Rack-mountable UPS CD with software Rack mounting support rails Smart UPS signalling RS-232 cable User manual Web/SNMP management card |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What is the power capacity of this APC Smart-UPS RT?
This UPS has a load capacity of 15 kVA, providing substantial power for high-density rack equipment such as servers, storage arrays, and networking gear. The double-conversion online topology ensures clean sine wave output, protecting sensitive electronics from grid disturbances.
How long will the UPS run at full load?
At full load, the battery backup runtime is 8.3 minutes. This provides sufficient time for connected equipment to perform graceful shutdowns or for backup generators to start. At half load, the runtime extends to 22.4 minutes for longer operational continuity.
What input and output voltages does it support?
The UPS accepts input voltages of 208 V AC or 240 V AC and provides user-selectable output at the same 208 V AC or 240 V AC levels. This flexibility allows deployment in various electrical environments, including three-phase derived circuits common in North American data centers.
How many outlets are included and what types?
There are 6 total battery and surge-protected outlets. The configuration includes one hardwired 3-wire (2PH + G) connection for direct wiring, four NEMA L6-20R receptacles, and two NEMA L6-30R receptacles. This mix supports both permanent and plug-in loads in rack environments.
What management features are available?
The UPS is SNMP manageable for network integration, allowing remote monitoring, alerts, and shutdown commands. It includes a serial port and RJ-45 network interface, plus a SmartSlot for optional management cards. This enables integration with data center infrastructure management systems.
What are the physical dimensions and rack requirements?
The unit occupies 12U of rack space with dimensions of 20.98" height, 17.01" width, and 30.43" depth. It weighs approximately 546.15 pounds, so proper rack reinforcement and handling equipment are necessary. The included mounting rails simplify installation in standard 19-inch racks.
What power capacity is listed for this UPS?
The listed power specification is 15 kVA, which helps position the unit for the right load level and installation role.
How many outlets are available?
The product includes 6, which helps buyers understand how many connected devices it can support in its intended deployment.
