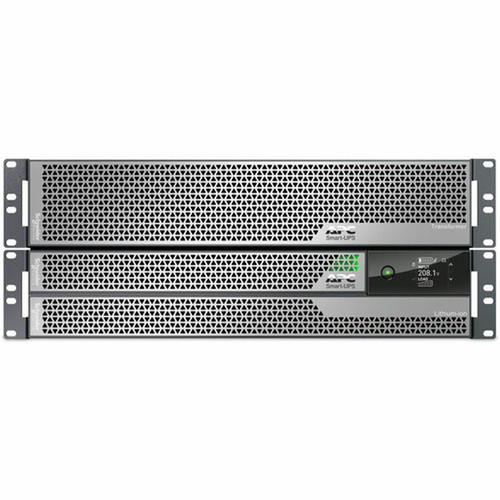

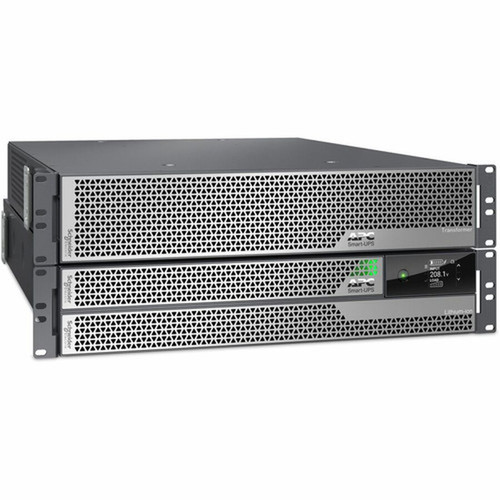

APC by Schneider Electric SRTL5KRM2UT-5KRMTF APC Smart-UPS Ultra 5kVA Rackmount 4U UPS - 208V Input - 120V Output - 12 x 5-20R + 2x L6-20R + 1x L6-30R
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This double-conversion online UPS provides complete isolation from input power irregularities, delivering clean sine wave output regardless of utility power quality. The unit accepts input voltages from 100V to 275V AC with a nominal 208V rating, automatically regulating output to a stable 120V for connected equipment.
Advanced battery management extends the lithium-ion battery life to 10 years under typical conditions, with a rapid 1.5-hour recharge time minimizing downtime between outages. The 2304 kJ battery energy storage provides 5.5 minutes of runtime at full load and nearly 12 minutes at half load, giving adequate time for graceful shutdowns or generator transfer.
Power Quality Protection
Features 1260 J surge energy rating and maintains output within specifications through brownouts, overvoltages, and frequency variations.
- Double-conversion topology
- Input range: 100-275V AC
- Output regulation: ±2%
Key Product Advantages
The Smart-UPS Ultra 5kVA distinguishes itself through integrated transformer functionality, lithium-ion battery technology, and comprehensive management capabilities that reduce total cost of ownership while enhancing reliability.
Integrated Voltage Transformation
Eliminates the need for separate stepdown transformers by converting 208V input to 120V output within the UPS enclosure, saving rack space and simplifying power distribution.
- 208V to 120V conversion
- Consolidated 4U footprint
- Reduced installation complexity
Lithium-Ion Battery Benefits
Provides longer service life, faster recharge, and reduced maintenance compared to traditional VRLA batteries while operating efficiently across a wider temperature range.
- 10-year typical battery life
- 1.5-hour recharge time
- Wider operating temperature tolerance
Deployment / Use Cases
This 5kVA rackmount UPS is designed for medium-density server environments, network closets, and telecommunications installations where reliable backup power and voltage conversion are required. The 15-outlet configuration supports mixed equipment loads with both 5-20R and L6-series receptacles.
Ideal for data centers implementing 208V power distribution to server racks, the integrated transformer eliminates the need for separate stepdown equipment while providing full UPS protection. The 4U form factor fits standard server cabinets without requiring excessive vertical space, making it suitable for colocation facilities and enterprise server rooms with constrained rack real estate.
Server Rack Power Distribution
Supports multiple servers, switches, and storage devices through 12 standard 5-20R outlets plus dedicated L6-20R and L6-30R receptacles for higher-power equipment.
- 15 total outlets
- Mixed receptacle types
- 10-foot input cord
Remote Site Management
Network Management Card 3 enables monitoring and control from any location with secure web access, supporting automated shutdowns, environmental monitoring, and alert notifications.
- Web-based management
- EPO emergency shutdown
- Temperature monitoring
Physical Profile
The black 4U rackmount enclosure measures 6.93" high, 17.01" wide, and 28.31" deep, occupying standard rack space while providing adequate ventilation for heat dissipation. The included rail kit supports tool-less installation in 19-inch racks with depths from 24" to 36", and the 159-pound weight requires proper rack mounting considerations for stability.
- Width
- 17.01" (432 mm)
- Depth
- 28.31" (719 mm)
- Height
- 6.93" (176 mm)
- Weight
- 55 dB(A)
- Length
- 10 ft (3.05 m)
What's in the Box
The package includes all necessary components for immediate deployment in rack environments.
Highlights
- 5kVA/4.9kW double-conversion online UPS with integrated stepdown transformer
- 4U rackmount form factor with included rail kit for 19-inch racks
- Converts 208V input to 120V output for server room power distribution
- Lithium-ion battery with 10-year life and 1.5-hour recharge time
- Network Management Card 3 included with 1-year secure subscription
- 15 outlets: 12x NEMA 5-20R, 2x L6-20R, 1x L6-30R
- 5-year repair or replace limited warranty
- Energy Star certified and RoHS compliant
- Sine wave output for sensitive electronic equipment
- EPO port for emergency power-off integration
Specifications
| Specifications | |
|---|---|
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SRTL5KRM2UT-5KRMTF |
| Brand Name | APC by Schneider Electric |
| Product Line | Smart-UPS Ultra |
| Product Name | Smart-UPS Ultra 5kVA Rack-mountable UPS |
| Packaged Quantity | 1 |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Plug/Connector Type | NEMA L6-30P |
| Receptacle Type | NEMA L6-30P |
| Receptacle Detail | 12 x NEMA 5-20R,2 x NEMA L6-20R,2 x NEMA L6-30R |
| Cord Length | 10 ft (3.05 m) |
| Phase | Single Phase |
| Power Description | |
| Load Capacity (VA) | 4.90 kVA |
| Load Capacity (Watt) | 4.90 kW |
| Input Voltage | 208 V AC |
| Input Voltage Range | 100 V AC - 275 V AC |
| Output Voltage | 120 V AC |
| Input Frequency | 70 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 1260 J |
| Management | |
| Network Management | Network Management Card 3 (NMC3) |
| Interfaces/Ports | |
| USB | Yes |
| EPO Port | Yes |
| Battery Information | |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Battery Energy | 2304 kJ |
| Backup/Run Time (Full Load) | 5.50 Minute |
| Backup/Run Time (Half Load) | 11.90 Minute |
| Battery Life | 10 Year |
| Typical Battery Recharge Time | 1.50 Hour |
| Environmental Conditions | |
| Maximum Operating Elevation | 10000 ft (3048000 mm) |
| Maximum Storage Elevation | 50000 ft (15240000 mm) |
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
| Storage Relative Humidity | 95% |
| Maximum Operating Temperature | 104°F (40°C) |
| Sound Emission (A-Weighted) | 55 dB(A) |
| Thermal Dissipation | 1047 BTU/h |
| Physical Characteristics | |
| Product Color | Black |
| Height | 6.93" (176 mm) |
| Width | 17.01" (432 mm) |
| Depth | 28.31" (719 mm) |
| Rack Height | 4U |
| Form Factor | Rack-mountable |
| Weight (Approximate) | 159.37 lb (72289.02 g) |
| Miscellaneous | |
| Package Contents | Smart-UPS Ultra 5kVA Rack-mountable UPS 1 x CD (software and documentation) |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
What input voltage does this UPS require?
The Smart-UPS Ultra 5kVA requires a 208V AC nominal input but accepts a wide range from 100V to 275V AC. This flexibility allows deployment in various power environments while the integrated transformer converts this to a stable 120V output for connected equipment.
How many outlets does this UPS have and what types?
This unit provides 15 total outlets: 12 standard NEMA 5-20R receptacles, 2 NEMA L6-20R outlets for higher-power equipment, and 1 NEMA L6-30R receptacle. The mixed configuration supports servers, networking gear, and other IT equipment with different plug requirements in a single rack.
What is the runtime at full load?
At full 4.9kW load, the lithium-ion battery provides 5.5 minutes of runtime. At half load (2.45kW), runtime extends to 11.9 minutes. These times allow for graceful shutdowns of connected equipment or transfer to generator power during utility outages.
Does this UPS include network management capabilities?
Yes, it includes a Network Management Card 3 (NMC3) with a 1-year secure subscription. This enables remote monitoring and control via web interface, supports environmental monitoring sensors, provides automated shutdown capabilities, and sends alert notifications for power events.
What rack space does this unit require?
The UPS occupies 4U of vertical space in a standard 19-inch rack. With dimensions of 6.93" high, 17.01" wide, and 28.31" deep, it fits most server cabinets. The included rail kit supports tool-less installation in racks with depths between 24" and 36".
What type of battery does this UPS use and how long does it last?
This Smart-UPS Ultra uses lithium-ion (Li-Ion) battery technology with a typical service life of 10 years under normal operating conditions. Lithium-ion batteries offer faster recharge times (1.5 hours typical), better performance across temperature variations, and reduced maintenance compared to traditional VRLA batteries.
What power capacity is listed for this UPS?
The listed power specification is 4.90 kVA, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 208 V AC, which helps position the unit for the right load level and installation role.
