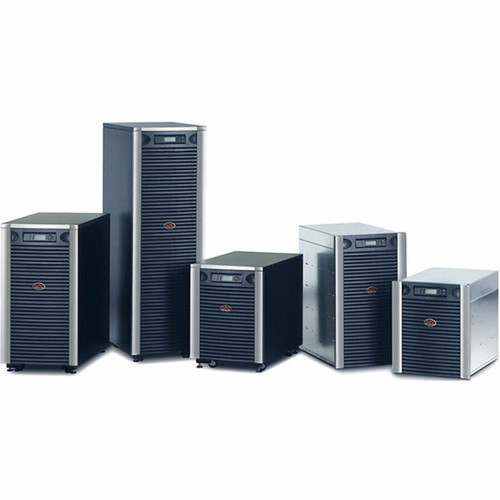

APC by Schneider Electric SYA8K16RMP APC Symmetra LX 8kVA Scalable to 16kVA N+1 Rack-mountable UPS - 5. 9 Minute Full Load - SNMP Manageable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
Engineered for demanding environments, the Symmetra LX UPS features a hard-wired 4-wire input and delivers output voltages of 120 V AC and 208 V AC. It maintains a sine wave output, essential for sensitive electronic equipment, and operates with an input frequency of 65 Hz and an output frequency of 60 Hz.
The system includes overload protection and is SNMP manageable via an included Web/SNMP management card, enabling remote monitoring and control. Thermal dissipation is rated at 4995 BTU/h, with a maximum operating temperature of 104°F (40°C). The lead-acid battery is spill-proof and maintenance-free, with a typical recharge time of 3 hours.
This section brings together practical product details such as Plug/Connector Type, Receptacle Type, Receptacle Detail, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The Symmetra LX UPS combines scalability, redundancy, and robust management to meet the stringent power requirements of modern data centers. Its modular architecture allows for capacity expansion without replacing the entire system, providing a future-proof investment.
High Availability Design
N+1 redundancy ensures continuous operation even if a module fails, minimizing downtime and protecting critical loads.
- Scalable from 8 kVA to 16 kVA
- Maintains power during component faults
Advanced Management
SNMP manageability allows for integration into existing network management systems, providing real-time alerts and historical data.
- Remote monitoring capabilities
- Included Web/SNMP management card
Rack-Optimized Form Factor
The 19U rack-mountable design saves floor space and simplifies installation in standard server racks.
- Includes rack mounting support rails
- Color: Black and Silver
Deployment / Use Cases
This UPS is ideal for data centers, server rooms, and network closets where uptime is critical. It provides reliable backup power for servers, storage arrays, switches, and other infrastructure components during utility outages or fluctuations.
Common deployment scenarios include protecting virtualization clusters, database servers, and telecommunications equipment. The scalable capacity makes it suitable for growing IT environments, while the rack-mount form factor ensures easy integration into existing cabinet layouts.
This section brings together practical product details such as Plug/Connector Type, Receptacle Type, Receptacle Detail, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Data Center Server Protection
Ensures uninterrupted operation of critical servers during power events, with sufficient runtime for orderly shutdowns or until generator power engages.
Network Infrastructure Support
Powers networking gear and communication systems, maintaining connectivity and preventing data loss during outages.
Physical Profile
The Symmetra LX UPS features a durable Black and Silver enclosure designed for rack mounting. It occupies 19U of rack space, with dimensions of 32.91" (836 mm) height, 18.58" (472 mm) width, and 27.09" (688 mm) depth. The unit weighs approximately 437.93 lb, requiring proper rack support and handling equipment during installation.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 19U, 18.58" (472 mm), 27.09" (688 mm), 437.93 lb (198641.71 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 18.58" (472 mm)
- Depth
- 27.09" (688 mm)
- Height
- 19U
- Weight
- 437.93 lb (198641.71 g)
What's in the Box
The package includes all necessary components for installation and operation.
Highlights
- 8 kVA capacity scalable to 16 kVA with N+1 redundancy
- 5.9-minute full load runtime; 17-minute half load runtime
- Rack-mountable 19U form factor for data center integration
- SNMP manageable with included Web/SNMP management card
- 13 battery and surge-protected outlets including NEMA receptacles
- Double conversion online topology for clean sine wave output
- Spill-proof, maintenance-free lead-acid battery
- Input: 208 V AC; Output: 120 V AC and 208 V AC
- Includes rack mounting support rails for easy installation
- 2-year limited warranty with repair or replace coverage
Specifications
| Specifications | |
|---|---|
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SYA8K16RMP |
| Brand Name | APC by Schneider Electric |
| Product Line | Symmetra |
| Product Series | LX |
| Product Name | Symmetra LX 8kVA Scalable to 16kVA N+1 Rack-mountable UPS |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Plug/Connector Type | Hard Wire 4-wire |
| Receptacle Type | Hard Wire 4-wire (2PH+N+G),NEMA L5-20R,NEMA L14-30R |
| Receptacle Detail | 1 x Hard Wire 4-wire (2PH+N+G),8 x NEMA L5-20R,4 x NEMA L14-30R |
| Number of Battery & Surge Outlets | 13 |
| Overload Protection | Yes |
| Power Description | |
| Load Capacity (VA) | 8 kVA |
| Input Voltage | 208 V AC |
| Output Voltage | 120 V AC,208 V AC |
| Input Frequency | 65 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | Sine Wave |
| Management | |
| Network Management | SNMP Manageable |
| Battery Information | |
| Battery Characteristics | Spill-proof/Maintenance-free |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 5.90 Minute |
| Backup/Run Time (Half Load) | 17 Minute |
| Typical Battery Recharge Time | 3 Hour |
| Environmental Conditions | |
| Maximum Operating Temperature | 104°F (40°C) |
| Thermal Dissipation | 4995 BTU/h |
| Physical Characteristics | |
| Product Color | Black,Silver |
| Form Factor | Rack-mountable |
| Rack Height | 19U |
| Height | 32.91" (836 mm) |
| Width | 18.58" (472 mm) |
| Depth | 27.09" (688 mm) |
| Weight (Approximate) | 437.93 lb (198641.71 g) |
| Miscellaneous | |
| Package Contents | Symmetra LX 8kVA Scalable to 16kVA N+1 Rack-mountable UPS CD with software Documentation CD Installation guide Rack mounting support rails User manual Web/SNMP management card |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
| Additional Warranty Information | 2 years repair or replace |
User Manual
FAQ
What is the power capacity of this UPS?
This APC Symmetra LX UPS has a base load capacity of 8 kVA. It is designed to be scalable, allowing expansion up to 16 kVA to accommodate growing power demands without replacing the entire unit, making it a flexible solution for evolving IT environments.
How long will the UPS run at full load?
At full load, the UPS provides a backup runtime of 5.90 minutes. This runtime is sufficient for initiating orderly shutdown procedures or bridging short power interruptions, ensuring critical systems remain protected during utility outages.
Is this UPS rack-mountable?
Yes, this UPS is designed for rack mounting with a 19U form factor. It includes rack mounting support rails for secure installation in standard data center racks, optimizing space utilization and simplifying integration into existing server cabinet layouts.
What management capabilities does it offer?
The UPS is SNMP manageable via the included Web/SNMP management card. This enables remote monitoring, configuration, and alerting through network management systems, providing real-time insights into power status and battery health for proactive maintenance.
How many outlets does it have?
It features 13 battery and surge-protected outlets. These include a mix of receptacles: 1 hard-wired 4-wire (2PH+N+G), 8 NEMA L5-20R, and 4 NEMA L14-30R, offering flexibility for connecting various server and networking equipment.
What type of battery does it use?
The UPS uses a spill-proof, maintenance-free lead-acid battery. This battery chemistry provides reliable performance with a typical recharge time of 3 hours, ensuring the system is quickly ready for subsequent power events without requiring routine maintenance.
What power capacity is listed for this UPS?
The listed power specification is 8 kVA, which helps position the unit for the right load level and installation role.
How many outlets are available?
The product includes 13, which helps buyers understand how many connected devices it can support in its intended deployment.
