APC by Schneider Electric SYA8K16PX798 APC Symmetra LX 8kVA Scalable to 16kVA N+1 Tower UPS - 208/240V Input - 120/208V Output - 3-Hour Recharge
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This Symmetra LX model operates with 208 V input voltage and 37 A input current, providing dual output voltages of 120 V AC and 208 V AC at 50 Hz. The double-conversion online topology ensures zero transfer time and consistent sine wave output, critical for sensitive industrial and server loads.
The UPS incorporates a lead-acid battery system with a typical recharge time of three hours and user-replaceable batteries. Network management is enabled via an optional SNMP/web card, allowing remote monitoring and control. The unit is RoHS compliant and backed by a two-year limited warranty.
This section brings together practical product details such as Receptacle Detail, Application/Usage, Load Capacity (VA), Input Voltage, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The Symmetra LX Tower UPS combines high power capacity with operational flexibility, offering distinct advantages for demanding applications.
Scalable Power Protection
Start with 8 kVA and expand to 16 kVA as power needs grow, supporting N+1 redundancy for uninterrupted uptime in critical systems.
- Modular scalability reduces upfront costs
- N+1 redundancy enhances system reliability
Industrial-Grade Performance
Engineered for industrial environments with hard-wired 4-wire (2PH+N+G) receptacle, robust construction, and sine wave output for sensitive equipment.
- Double-conversion online topology
- Zero transfer time during outages
Advanced Management & Serviceability

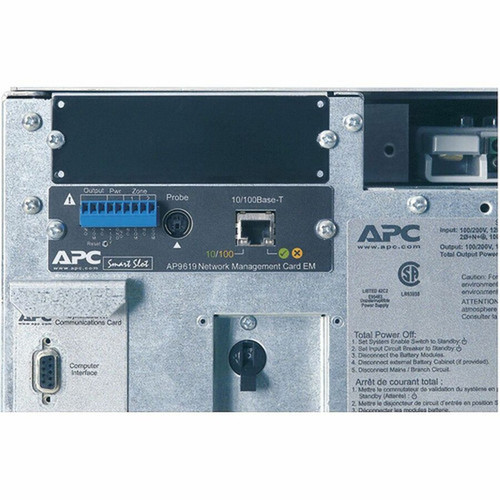

Optional SNMP/web card enables remote monitoring, while user-replaceable batteries and a two-year warranty simplify maintenance and support.
- Remote management capabilities
- Easy battery replacement
Deployment / Use Cases
The APC Symmetra LX 8kVA Tower UPS is tailored for environments where power quality and availability are non-negotiable. Its industrial rating and scalable design make it ideal for a range of critical infrastructure applications.
In manufacturing and industrial settings, it protects PLCs, CNC machines, and control systems from power anomalies. For IT and data centers, it ensures server racks, networking gear, and storage arrays remain operational during outages. The tower form factor allows flexible placement in equipment rooms, on production floors, or alongside server cabinets where rack mounting is not required.
Industrial Automation
Safeguard programmable logic controllers, motor drives, and sensors in factories and plants where power disturbances can cause costly downtime and equipment damage.
Data Center & Server Rooms
Provide backup power for server racks, network switches, and storage systems, with scalability to support expanding IT loads and redundancy for critical applications.
Physical Profile
The UPS features a tower form factor with a black finish, measuring 19.02" in height, 19.02" in width, and 28.58" in depth. Weighing approximately 483 pounds, it is built for durability in industrial environments. The design includes a hard-wired 4-wire receptacle for secure electrical connections, and its footprint accommodates placement on floors or sturdy surfaces without requiring rack mounting.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 19.02" (483.11 mm), 19.02" (483 mm), 28.58" (726 mm), 482.99 lb (219080.58 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 19.02" (483 mm)
- Depth
- 28.58" (726 mm)
- Height
- 19.02" (483.11 mm)
- Weight
- 482.99 lb (219080.58 g)
What's in the Box
The package includes the Symmetra LX 8000VA Tower UPS unit, a CD with software, installation guide, user manual, and a web/SNMP management card for network connectivity and monitoring.
Highlights
- 8 kVA load capacity scalable to 16 kVA with N+1 redundancy
- Double-conversion online UPS with sine wave output
- 208 V input voltage with 120 V AC and 208 V AC output
- Typical battery recharge time of three hours
- Industrial-grade construction for demanding environments
- Optional SNMP/web card for remote management
- User-replaceable lead-acid batteries
- Tower form factor with black finish
- RoHS compliant and environmentally friendly
- Backed by a two-year limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SYA8K16PX798 |
| Brand Name | APC by Schneider Electric |
| Product Line | Symmetra LX |
| Product Name | Symmetra LX 8000VA Tower UPS |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Receptacle Detail | 1 x Hard Wire 4-wire (2PH+N+G) |
| Application/Usage | Industrial |
| Power Description | |
| Load Capacity (VA) | 8 kVA |
| Input Voltage | 208 V |
| Input Current | 37 A |
| Output Voltage | 120 V AC,208 V AC |
| Input Frequency | 50 Hz |
| Waveform Type | Sine Wave |
| Management | |
| Network Management | SNMP/Webcard |
| Battery Information | |
| Battery Chemistry | Lead Acid |
| Typical Battery Recharge Time | 3 Hour |
| Replaceable Battery | Yes |
| Physical Characteristics | |
| Product Color | Black |
| Height | 19.02" (483.11 mm) |
| Width | 19.02" (483 mm) |
| Depth | 28.58" (726 mm) |
| Form Factor | Tower |
| Weight (Approximate) | 482.99 lb (219080.58 g) |
| Miscellaneous | |
| Package Contents | Symmetra LX 8000VA Tower UPS CD with Software Installation Guide User Manual Web/SNMP Management Card |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What is the power capacity of this APC Symmetra LX UPS?
This UPS has a load capacity of 8 kVA. It is designed to be scalable, allowing expansion up to 16 kVA to accommodate growing power demands. The N+1 redundancy feature ensures that if one power module fails, the system can continue operating without interruption, providing reliable backup for critical loads.
What input and output voltages does this UPS support?
The UPS accepts an input voltage of 208 V and delivers output voltages of 120 V AC and 208 V AC. This dual-output capability makes it compatible with a wide range of equipment, from standard 120V devices to higher-voltage industrial machinery, ensuring versatile power protection in mixed environments.
How long does it take to recharge the batteries?
The typical battery recharge time is three hours. This relatively fast recharge helps restore backup capacity quickly after an outage, minimizing downtime risk. The UPS uses lead-acid batteries that are user-replaceable, simplifying maintenance and extending the system's operational life.
Is this UPS suitable for industrial applications?
Yes, this UPS is rated for industrial usage. It features a hard-wired 4-wire (2PH+N+G) receptacle, robust tower construction, and double-conversion online topology that provides clean sine wave output. These characteristics make it ideal for protecting sensitive industrial equipment like PLCs, motors, and control systems from power disturbances.
Can I manage this UPS remotely?
Yes, remote management is possible with the optional SNMP/web card included in the package. This card enables network connectivity for monitoring status, configuring settings, and receiving alerts via SNMP or a web interface. It allows IT staff to oversee power conditions and UPS performance from a central location.
What is the form factor and weight of this UPS?
The UPS has a tower form factor with dimensions of 19.02" (H) x 19.02" (W) x 28.58" (D). It weighs approximately 483 pounds, reflecting its industrial-grade build. The black finish and sturdy design make it suitable for placement on floors or solid surfaces in equipment rooms, without the need for rack mounting.
What power capacity is listed for this UPS?
The listed power specification is 8 kVA, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 208 V, which helps position the unit for the right load level and installation role.
