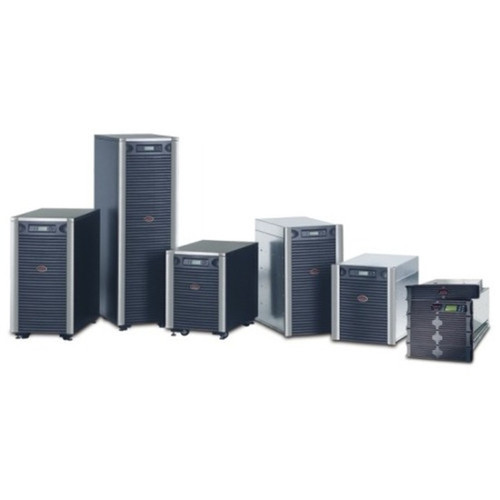

APC by Schneider Electric SYH6K6RMT-TF3 Symmetra RM 6kVA Rackmount UPS - 12. 3 Minute Full Load Runtime - SNMP Manageable - 208V AC Input
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This section brings together practical product details such as Plug/Connector Type, Receptacle Type, Receptacle Detail, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Power Conversion
This double-conversion online UPS continuously converts incoming AC power to DC and back to AC, providing complete isolation from input power anomalies. It accepts 208V AC input and delivers both 120V and 208V AC output with pure sine wave quality.
Battery System
The maintenance-free lead-acid battery is spill-proof and typically recharges within 3 hours. The system includes configurable alarms for battery status and supports both full-load (12.3 minutes) and half-load (29.1 minutes) runtime scenarios.
Key Product Advantages
The Symmetra RM 6kVA delivers reliable power protection with features specifically designed for rack deployment and network integration.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Rack-Optimized Design, Network Management Capabilities.
Rack-Optimized Design
The 10U rack height and standard 19-inch width ensure compatibility with existing cabinet infrastructure. Pre-installed rack mounting brackets and support rails simplify installation.
- 10U rack height
- 19.02" width for standard racks
- Includes mounting hardware
Network Management Capabilities
SNMP manageability enables integration with existing network monitoring systems. Configurable alarms provide immediate notification of power events.
- SNMP for remote management
- Configurable alarm delays
- RJ-45 dataline protection
Deployment / Use Cases
This UPS is ideal for network closets, server rooms, and data centers where rack space is at a premium and power reliability is non-negotiable.
The 6 kVA capacity supports multiple servers, switches, and storage devices in a consolidated rack environment. The dual voltage output (120V/208V) accommodates both standard and high-voltage equipment within the same infrastructure.
This section brings together practical product details such as Plug/Connector Type, Receptacle Type, Receptacle Detail, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Data Center Rack Deployment
Protect critical servers and networking gear in standard 19-inch racks with the 10U form factor. The 208V AC input matches common data center power distribution.
Network Infrastructure Protection
Safeguard switches, routers, and communication equipment with clean sine wave output and dataline protection. The six outlets support multiple devices with battery backup.
Physical Profile
The black rack-mountable enclosure measures 17.52" high, 19.02" wide, and 28.74" deep, occupying 10U of vertical rack space. At approximately 390 pounds, it requires proper rack reinforcement and handling equipment for installation. The unit includes a 10-foot power cord with hard wire 3-wire,NEMA L6-30P connector for direct power connection.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 10U, 19.02" (483 mm), 28.74" (730 mm), 389.82 lb (176819.38 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 19.02" (483 mm)
- Depth
- 28.74" (730 mm)
- Height
- 10U
- Weight
- 389.82 lb (176819.38 g)
- Length
- 10 ft (3048 mm)
What's in the Box
The package includes all necessary components for immediate deployment and operation.
Highlights
- 6 kVA power capacity for rack-mounted equipment
- 12.3 minutes runtime at full load (29.1 minutes at half load)
- SNMP manageable for network integration
- 10U rack-mountable form factor
- 208V AC input with 120V/208V AC output
- Pure sine wave output for sensitive electronics
- Six battery and surge protected outlets
- Maintenance-free lead-acid battery with 3-hour recharge
- Includes rack mounting brackets and support rails
- 2-year limited warranty with optional extensions
Specifications
| Specifications | |
|---|---|
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SYH6K6RMT-TF3 |
| Brand Name | APC by Schneider Electric |
| Product Line | Symmetra |
| Product Series | RM |
| Product Name | Symmetra RM 6kVA UPS |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Plug/Connector Type | Hard Wire 3-wire,NEMA L6-30P |
| Receptacle Type | NEMA L6-30P 30A |
| Receptacle Detail | 2 x NEMA L6-20R,4 x NEMA L5-20R |
| Number of Battery & Surge Outlets | 6 |
| Dataline Protection | RJ-45 |
| Overload Protection | Yes |
| Cord Length | 10 ft (3048 mm) |
| Power Description | |
| Load Capacity (VA) | 6 kVA |
| Input Voltage | 208 V AC |
| Output Voltage | 120 V AC,208 V AC |
| Input Frequency | 63 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | Sine Wave |
| Management | |
| Network Management | SNMP Manageable |
| Alarm | On Battery,Low Battery,Configurable Delay |
| Battery Information | |
| Battery Characteristics | Spill-proof/Maintenance-free |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 12.30 Minute |
| Backup/Run Time (Half Load) | 29.10 Minute |
| Typical Battery Recharge Time | 3 Hour |
| Environmental Conditions | |
| Maximum Operating Temperature | 104°F (40°C) |
| Thermal Dissipation | 2529 BTU/h |
| Physical Characteristics | |
| Product Color | Black |
| Form Factor | Rack-mountable |
| Rack Height | 10U |
| Height | 17.52" (445 mm) |
| Width | 19.02" (483 mm) |
| Depth | 28.74" (730 mm) |
| Weight (Approximate) | 389.82 lb (176819.38 g) |
| Miscellaneous | |
| Package Contents | Symmetra RM 6kVA UPS CD with software Rack mounting brackets Rack mounting support rails User manual |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
| Additional Warranty Information | 2 years repair or replace, optional on-site warranties available, optional extended warranties available |
User Manual
FAQ
What is the power capacity of this UPS?
This APC Symmetra RM UPS provides 6 kVA of power capacity, suitable for protecting multiple servers, networking equipment, and storage devices in a rack environment. The double-conversion online topology ensures clean power delivery regardless of input conditions.
How long will this UPS run on battery power?
At full load, the UPS provides 12.3 minutes of runtime. At half load, runtime extends to 29.1 minutes. These times allow for orderly shutdown of protected equipment or continued operation during brief power interruptions.
What input voltage does this UPS require?
The UPS requires 208V AC input, which is common in commercial and data center power distributions. It accepts input frequencies of 63 Hz and delivers output at 60 Hz with pure sine wave quality.
How is this UPS managed and monitored?
The UPS features SNMP manageability for integration with network monitoring systems. It includes configurable alarms for on-battery, low-battery, and other conditions, with RJ-45 dataline protection for connected equipment.
What rack space does this UPS occupy?
The UPS occupies 10U of vertical rack space in a standard 19-inch wide cabinet. Dimensions are 17.52" high, 19.02" wide, and 28.74" deep. The package includes rack mounting brackets and support rails for installation.
What type of outlets does this UPS have?
The UPS provides six battery and surge protected outlets with a mix of NEMA connectors: two NEMA L6-20R and four NEMA L5-20R receptacles. This variety supports different equipment plug types within the same power protection system.
What power capacity is listed for this UPS?
The listed power specification is 6 kVA, which helps position the unit for the right load level and installation role.
How many outlets are available?
The product includes 6, which helps buyers understand how many connected devices it can support in its intended deployment.
