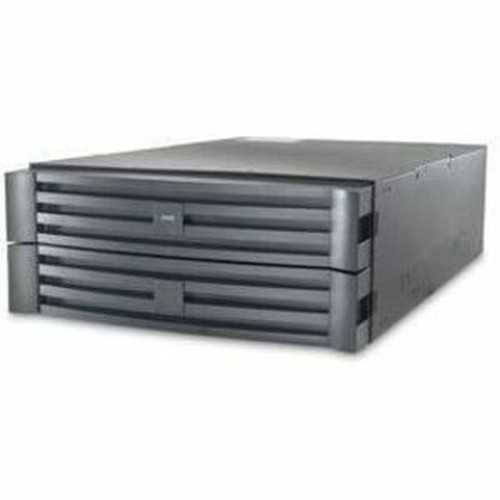

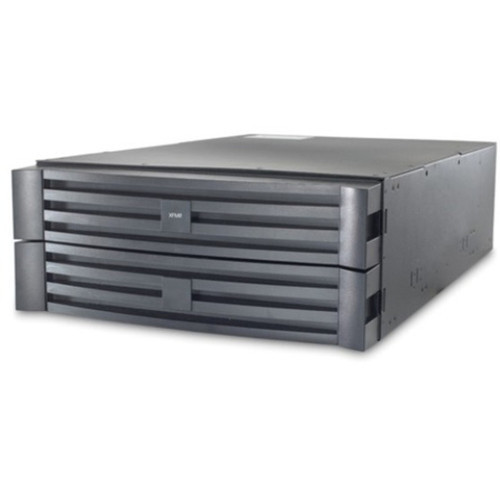

APC by Schneider Electric APTF20KW01 APC 20kVA Isolation Rack-mountable Transformer - 4U Rack Mount - Hardwire Input/Output - 100A Max Current
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The transformer operates with a 20 kVA power rating and a maximum line current of 100 amps, handling substantial electrical loads. Input and output connections use hardwire terminals, supporting 3-wire and 4-wire configurations for single-phase and two-phase systems.
Voltage conversion capabilities include step-down functionality, transforming higher input voltages like 208V, 230V, or 400V to lower output voltages such as 120V or 208V AC. This design helps manage inrush currents and can prevent UPS oversizing when installed upstream.
This section brings together practical product details such as Power Rating, Input Receptacle Type, Output Receptacle Type, Input Voltage, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
This isolation transformer enhances power distribution reliability by providing electrical isolation between input and output circuits. It reduces inrush current spikes, protecting downstream UPS systems and avoiding unnecessary oversizing.
Flexible Voltage Conversion
Supports a wide range of input and output voltages, accommodating diverse electrical infrastructures and equipment requirements.
- Input: 100-400V
- Output: 100-230V AC
Rack Integration
Designed for 4U rack mounting with included brackets, saving floor space and simplifying installation in server environments.
- 4U height
- Includes mounting brackets
Compliance & Reliability
CSA certified and RoHS compliant, ensuring safe operation in demanding conditions with a 2-year limited warranty.
- CSA certified
- 2-year warranty
Deployment / Use Cases
Deploy this transformer in data centers to match voltage levels between utility power and server racks, or in industrial settings where equipment requires specific voltage inputs. It is compatible with APC Smart-UPS systems for integrated power protection.
Common applications include voltage step-down for North American 120V equipment from 208/230V sources, isolation for sensitive electronics, and power distribution in multi-tenant colocation facilities. The hardwire connections suit permanent installations where plug-and-play outlets are not required.
This section brings together practical product details such as Power Rating, Input Receptacle Type, Output Receptacle Type, Input Voltage, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Data Center Power Distribution
Install upstream of UPS systems to manage voltage conversion and reduce inrush currents, optimizing power protection infrastructure.
Industrial Voltage Matching
Use in manufacturing or telecom environments to adapt utility power to the specific voltage needs of machinery or networking gear.
Physical Profile
The transformer measures 6.89" (175 mm) in height, 17.01" (432 mm) in width, and 29.80" (757 mm) in depth, fitting standard 19-inch server racks. Its 4U rack height and 260.54 lb weight require proper rack reinforcement and handling during installation.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 6.89" (175 mm), 17.01" (432 mm), 29.80" (757 mm), 260.54 lb (118178.96 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 17.01" (432 mm)
- Depth
- 29.80" (757 mm)
- Height
- 6.89" (175 mm)
- Weight
- 260.54 lb (118178.96 g)
What's in the Box
The package includes all necessary components for installation and operation.
Highlights
- 20kVA isolation transformer for power distribution and voltage conversion
- Converts multiple input voltages (100-400V) to output voltages (100-230V AC)
- Hardwire input and output connections with 3-wire and 4-wire options
- 4U rack-mountable form factor with included mounting brackets
- Maximum line current of 100 amps for high-load applications
- CSA certified for reliable operation in demanding environments
- Reduces inrush current and helps avoid UPS oversizing
- RoHS compliant and environmentally friendly
- 2-year limited warranty for peace of mind
- Designed for use with APC Smart-UPS systems
Specifications
| Specifications | |
|---|---|
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | APTF20KW01 |
| Brand Name | APC by Schneider Electric |
| Product Name | 20kVA Isolation Rack-mountable Transformer |
| Product Type | Isolation Transformer |
| Technical Information | |
| Power Rating | 20 kVA |
| Input Receptacle Type | Hard Wire 3-wire (2PH + G),Hard Wire 3 wire (1PH+N+G),Hard Wire 4-wire (2PH+N+G) |
| Output Receptacle Type | Hard Wire 3-wire (H+N+E),Hard Wire 3-wire (2PH + G),Hard Wire 4-wire (2PH+N+G) |
| Power Description | |
| Input Voltage | 100 V,120 V,200 V,208 V,230 V,400 V |
| Output Voltage | 100 V,120 V,200 V AC,208 V AC,230 V AC |
| Maximum Line Current | 100 A |
| Physical Characteristics | |
| Height | 6.89" (175 mm) |
| Width | 17.01" (432 mm) |
| Depth | 29.80" (757 mm) |
| Form Factor | Rack-mountable |
| Rack Height | 4U |
| Weight (Approximate) | 260.54 lb (118178.96 g) |
| Miscellaneous | |
| Package Contents | 20kVA Isolation Rack-mountable Transformer Documentation CD Hardwire panel Installation guide Rack mounting brackets User manual |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What is the power rating of this isolation transformer?
The APC APTF20KW01 has a power rating of 20 kVA (kilovolt-amperes), indicating its capacity to handle substantial electrical loads. This makes it suitable for data centers, server rooms, or industrial applications where reliable power distribution and voltage conversion are required.
What input and output voltages does it support?
This transformer supports input voltages of 100V, 120V, 200V, 208V, 230V, and 400V. Output voltages include 100V, 120V, 200V AC, 208V AC, and 230V AC, providing flexibility for step-down conversion and matching various equipment requirements.
Is this transformer rack-mountable, and what are its dimensions?
Yes, it is designed for rack mounting with a 4U height. Dimensions are 6.89 inches (175 mm) in height, 17.01 inches (432 mm) in width, and 29.80 inches (757 mm) in depth. It fits standard 19-inch server racks and includes mounting brackets for installation.
What type of electrical connections does it use?
The transformer uses hardwire connections for both input and output. Input options include Hard Wire 3-wire (2PH + G), Hard Wire 3 wire (1PH+N+G), and Hard Wire 4-wire (2PH+N+G). Output options are Hard Wire 3-wire (H+N+E), Hard Wire 3-wire (2PH + G), and Hard Wire 4-wire (2PH+N+G), accommodating various wiring configurations.
How does this transformer help with UPS systems?
When installed upstream of a UPS, it reduces inrush current spikes by providing electrical isolation and voltage conversion. This can prevent UPS oversizing, optimize power protection, and extend equipment lifespan, especially when used with APC Smart-UPS systems.
What is included in the package and warranty?
The package contains the 20kVA isolation transformer, documentation CD, hardwire panel, installation guide, rack mounting brackets, and user manual. It comes with a 2-year limited warranty and is RoHS compliant, ensuring environmental standards and reliable performance.
What power capacity is listed for this UPS?
Power specifications help show where the unit fits best, including the type of load level, electrical environment, and backup role it is intended to support. These are usually the most decision-critical facts in a UPS or power-protection comparison.
What voltage details are listed?
100 V,120 V,200 V,208 V,230 V,400 V.
